Arlon Diclad 527 PCB

Arlon Diclad 527 raw material in stock · 8-day prototype lead time

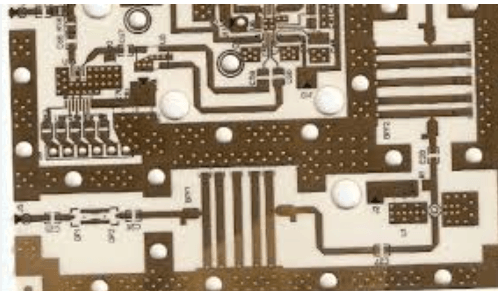

Overview

Arlon Diclad 527 (and its 522 sibling) are woven fiberglass/PTFE composite laminates engineered for low-loss printed circuit board substrates. The glass-fiber reinforcement delivers highly uniform electrical properties across frequency, making it a proven choice for phased-array, radar feed networks and base-station antennas.

Arlon’s High Frequency Materials division is now part of Rogers Corporation. As a manufacturer, Andwin fabricates Diclad 527 PCBs with material in stock and a typical 8-day prototype lead time.

Technical Data

Key Specifications — Arlon Diclad 527

Parameter	Arlon Diclad 527
Dielectric Constant (εr, 10 GHz)	2.5 typ. (2.4–2.65)
Dissipation Factor (10 GHz)	0.0018
Tensile Modulus	706 kpsi
Thermal Conductivity	0.23 W/m·K
Moisture Absorption	0.02%
CTE (z, -55 to 125°C)	175 ppm/°C
Glass Transition Temp (Tg)	N/A (PTFE-based, no Tg)
Decomposition Temp (Td)	500 °C
Copper Foil Options	1/2, 1, 2 oz (17–70 μm) ED & RT
Standard Core Thickness	0.13–3.05 mm (0.005″–0.120″)
Flammability	UL 94 V-0

Values per Arlon/Rogers official datasheet. Thermal conductivity / moisture absorption / CTE / Td / thickness are added from official data — confirm exact grade & thickness availability at quotation.

Why Diclad 527

Features of Diclad 527

Engineered for heavy-industry RF environments where ordinary PCBs fall short.

Low loss

Df 0.0018 at 10 GHz — excellent signal integrity for microwave circuits.

Stable Dk 2.5

Low dielectric constant with tight 2.4–2.65 range for predictable impedance.

Woven glass / PTFE

Glass-fiber-reinforced PTFE composite — dimensionally stable & uniform.

Frequency-uniform

Electrical properties stay highly consistent across the operating band.

Chemical resistant

Withstands all solvents & reagents used in PCB processing.

Military & radar

Built for phased-array, missile guidance & radar feed networks.

Raw Material & SupRaw Material & Supplier

Rogers Corporation — Arlon High Frequency Materials
Rogers acquired Arlon’s HF materials division. Andwin stocks Diclad 527 raw laminate and offers 8-day prototype turnaround.

Andwin Circuits

Why Choose Us?

In-stock & fast

Diclad 527 raw material in stock, 8-day prototype lead time.

Since 2003

ISO 9001 / IATF 16949 certified manufacturer.

RF expertise

Proven experience in phased-array & radar circuits.

PTFE line

Dedicated PTFE processing — not mixed with FR-4 lines.

Free samples

Prototype coupons available on request.

Chemical resistant

Withstands all solvents & reagents used in processing.

Diclad 527 vs FR-4

Arlon Diclad 527 vs Standard FR-4

Property	Arlon Diclad 527	Standard FR-4
Best use	Low-loss microwave / radar	General digital & power
Dielectric constant	2.5 (2.4–2.65)	~4.2–4.5 (varies)
Dissipation factor	0.0018 @10 GHz	~0.02 (far higher loss)
Uniformity vs frequency	Highly uniform	Varies with frequency
Cost	Premium (PTFE)	Economy
Harsh environment	Military / aerospace ready	Standard switching boards

Frequently Asked Questions

1.What is the dielectric constant of Diclad 527?

Diclad 527 has a typical εr of 2.5 at 10 GHz, with a tight range of 2.4–2.65. The woven glass/PTFE construction keeps the value highly uniform across the panel and over frequency.

2.Can Diclad 527 be processed like FR-4?

No. Diclad 527 is a PTFE-based laminate and requires a dedicated PTFE process line (special drilling, desmear and bonding). It must not be mixed with standard FR-4 production.

3. What thicknesses and copper can I order?

Standard cores from 0.13 to 3.05 mm (0.005″–0.120″) with ED or reverse-treated copper 1/2, 1 and 2 oz. Other thicknesses available on request.

4.What is the typical lead time?

With raw material in stock at Andwin, prototype Diclad 527 PCBs typically ship in about 8 days, depending on layer count and via structure.

5.Is Diclad 527 suitable for military radar?

Yes. Its low loss, frequency-uniform electrical properties and chemical resistance make it a proven choice for phased-array networks, radar feed networks and missile guidance systems.
