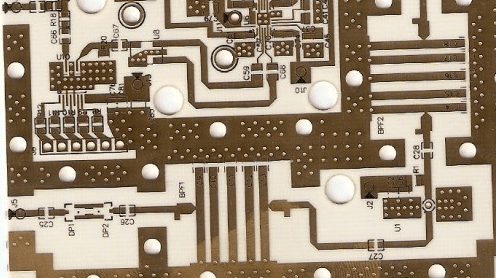

Ultra-low-loss PTFE laminate for microwave & mmWave
Rogers RO3003 is a ceramic-filled PTFE composite engineered for the most demanding high-frequency circuits — 77 GHz automotive radar, 5G mmWave, and satellite communications. With Dk 3.00 ± 0.04 and an exceptionally low Df of 0.0010, it delivers the stable, repeatable impedance control that microwave designs require.
Technical Data
Key Specifications
| Parameter | Rogers RO3003 |
|---|---|
| Dielectric Constant (εr, z-axis, 10 GHz) | 3.00 ± 0.04 |
| Dissipation Factor (10 GHz) | 0.0010 |
| Thermal Conductivity | 0.50 W/m·K |
| Moisture Absorption | 0.04% |
| Coefficient of Thermal Expansion (z, 50–150°C) | 24 ppm/°C |
| Glass Transition Temp (Tg) | N/A (PTFE-based, no Tg) |
| Decomposition Temp (Td) | ~500 °C |
| Copper Foil Options | 0.5 / 1.0 / 2.0 oz (17–70 µm) |
| Standard Core Thickness | 8, 12, 16, 20, 32, 60 mil (0.2–1.5 mm) |
| Flammability | UL 94 V-0 |
Values per Rogers CORP official datasheet. Df / thermal conductivity / moisture absorption / CTE / Td are added from official data — confirm exact grade & thickness availability at quotation.
Why RO3003
Features of Rogers RO3003 PCB
Engineered for heavy-industry RF environments where ordinary PCBs fall short.
Df 0.0010 at 10 GHz — the lowest loss in the RO3000 series, ideal for microwave & mmWave.
3.00 ± 0.04 enables tight, repeatable impedance control across bands.
The reference material for automotive radar and ADAS sensor front-ends.
0.04% uptake keeps Dk rock-stable from lab to harsh field use.
24 ppm/°C in z keeps plated through-holes reliable over thermal cycles.
Best price/performance among PTFE laminates for volume mmWave programs.
Raw Material & Supplier
Genuine Rogers CORP RO3003 laminate, stocked and traceable. We buy direct from Rogers and verify every lot before fabrication — no substitutes, full material certification on request.
Andwin Circuits
Why Choose Us?
In-stock, fast turn
RO3003 raw material in stock — 7–10 day prototypes, volume production on schedule.
PTFE process line
Dedicated PTFE desmear & etch line — RO3003 is NOT run on standard FR-4 lines.
Impedance control
Simulated & verified controlled impedance for 77 GHz and 5G mmWave stacks.
Hybrid stack-ups
RO3003 + FR-4 / RO4350B mixed dielectric builds supported.
Free samples
Prototype coupons and stack-up advice before you commit volume.
Certified since 2003
IATF 16949 / ISO 9001 / UL — automotive-grade quality system.
RO3003 vs FR-4
Rogers RO3003 vs Standard FR-4
| Property | Rogers RO3003 | Standard FR-4 |
|---|---|---|
| Best use | Ultra-low-loss microwave / 77 GHz radar | General digital & power |
| Dielectric constant | 3.00 ± 0.04 | ~4.2–4.5 (varies) |
| Dissipation factor | 0.0010 @10 GHz | ~0.02 (far higher loss) |
| Moisture absorption | 0.04% (lowest) | Higher |
| Cost | Premium (PTFE material) | Economy |
| Harsh environment | Automotive / aerospace ready | Standard switching boards |
Frequently Asked Questions
1.What is RO3003 typically used for?
77 GHz automotive radar, 5G mmWave base stations, satellite communications, point-to-point microwave backhaul, LNBs and high-gain RF power amplifiers — anywhere ultra-low loss matters.
2.Can RO3003 be processed like FR-4?
No. It is a PTFE-based laminate and needs a dedicated PTFE process (special desmear, sodium etch, controlled lamination). Andwin runs a separate PTFE line, so your RO3003 boards are never mixed with standard epoxy jobs.
3. What is the dielectric constant tolerance?
3.00 ± 0.04 at 10 GHz (z-axis), stable across temperature and frequency — exactly what tight impedance control needs.
4.What lead time and minimum order?
RO3003 raw material is in stock. Prototypes typically ship in 7–10 days; volume MOQ is flexible — ask for a quote.
5. Can you build hybrid RO3003 + FR-4 stacks?
Yes. We routinely fabricate mixed-dielectric stack-ups (RO3003 with RO4350B or FR-4 cores) with simulated, verified impedance.
