Radio Frequency PCB

Rogers, Arlon & Taconic Materials in Stock | Fast 7-10 Day Delivery

Andwin is a leading RF PCB and microwave high-frequency PCB manufacturer for wireless infrastructure. A well-designed radio frequency printed circuit board provides significant performance boost, stability, and reliability for 5G base stations, automotive radar, and satellite communications.

RF PCB Materials We Manufacture

Premium high-frequency laminates in stock for fast prototyping and production

RF Raw Material supplier

High-quality products require high-quality raw materials. We work with trusted, reputable raw material suppliers to ensure reliable quality and build long-term partnerships based on mutual benefit and shared growth.

Rogers

Global leaders in materials technologies that power, Protect and connect the world.

Material：

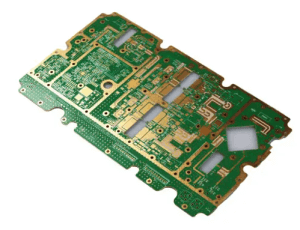

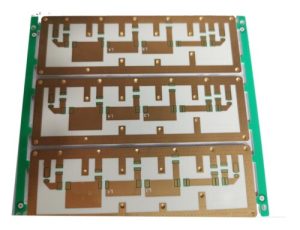

RO3003, RO3006, RO3035, RO3203, RO4000, RO4003, RO4350B, RO4360G2 ,RO4450B, RO4500, Rogers 5880

Arlon

Arlon Materials for Electronics has a long history, both in its Microwave Products Group(Dating to the mid-1890’s) and its Electronic Substrates Group (Dating to The early 1970’s).

Material：

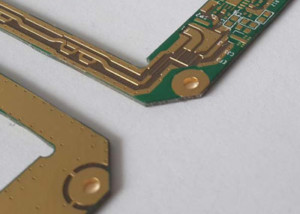

IsoClad 933, DiClad 870, DiClad 522, DiClad 527, AD255C, AD250C…

Taconic

TACONIC is the largest production of PTFE CCL manufacturer in the world, have patent of a uniform coating of PTFE on glass woven, is a leader of the PTFE CCL microwave technology in the industry, the microwave dielectric constant CCL from2.17 to 10.0, occupied the market share more than 80% inthe global antenna PCB materail.

WangLing

WangLing is a professional Raw Material manufacturer for microwave printed circuit boards (PCBs) in China with strong capability of research, development, manufacturing and sales in the area of electronic material. Cost is better.

Why Choose Us?

Well know RF circuits boards design

Ready raw material in stock ( Lead time short ).

Strong Process capability (Track:3/3mil,6mil Via holes)

Technology support from strongly team

Reasonable cost

Applications

5G Base Stations

Massive MIMO and beamforming for sub-6GHz and mmWave networks. High-density antenna arrays for next-generation infrastructure.

Automotive Radar

77/79GHz radar for ADAS systems. Collision avoidance, adaptive cruise control, and autonomous driving sensors.

Satellite Communications

Ka/Ku-band systems with low PIM. Ground stations, airborne terminals, and satellite uplink/downlink equipment.

Wireless IoT

LoRa, Sigfox, NB-IoT modules. Smart metering, asset tracking, and industrial wireless sensor networks.

Frequently Asked Questions

1. What is the lead time for RF PCB prototypes?

We offer 7-10 day lead time for RF PCB prototypes with Rogers, Arlon, and Taconic materials in stock. Production orders typically ship within 2-3 weeks.

2. Which RF materials do you have in stock?

We maintain inventory of Rogers (RO4350B, RO4003, RO5880, etc.), Arlon DiClad series, and Taconic TLX series. No waiting for material procurement.

3. What is your minimum order quantity (MOQ)?

No MOQ for prototype orders. You can order as few as 5 pieces for testing. Production orders start at 50 pieces for volume pricing.

4. Can you provide impedance testing reports?

Yes, we perform TDR (Time Domain Reflectometry) impedance testing on all RF PCBs and provide test reports with ±5% tolerance guarantee.

5. Do you offer design support for RF PCB stackup?

Our engineering team provides free DFM review, impedance calculation, and material selection recommendations based on your frequency range and application requirements.
