What Is Metal Core PCB?
A Metal Core PCB (MCPCB) is a printed circuit board that uses a metal substrate instead of traditional FR4 material. The metal layer works as a heat spreading path, allowing heat generated by high-power components to be transferred quickly away from sensitive electronic parts.
Compared with conventional PCBs, MCPCBs provide better thermal performance, improved reliability, and longer component lifetime.
Metal Core PCB Types
Andwin PCB offers various Metal Core PCB structures to meet different thermal and electrical requirements.
Layer Aluminum MCPCB
Single-layer aluminum PCB with excellent thermal performance for LED lighting and general power applications.
Thermal Pad MCPCB
Enhanced thermal path design for efficient heat transfer in high-power electronic applications.
Double Sided Aluminum MCPCB
Double-layer aluminum PCB providing flexible circuit design with reliable thermal management.
Copper Core MCPCB
High thermal conductivity PCB solution for demanding high-power and heat-sensitive applications.
Stack up of metal core PCB

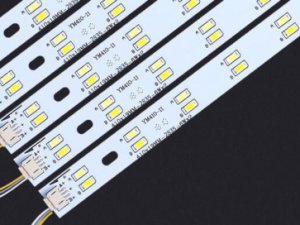

1 layer aluminum metal core PCB stack up

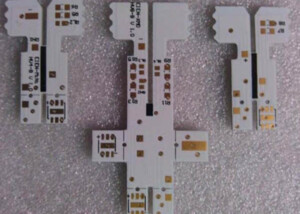

2 layers one sided aluminum metal core PCBs stack up

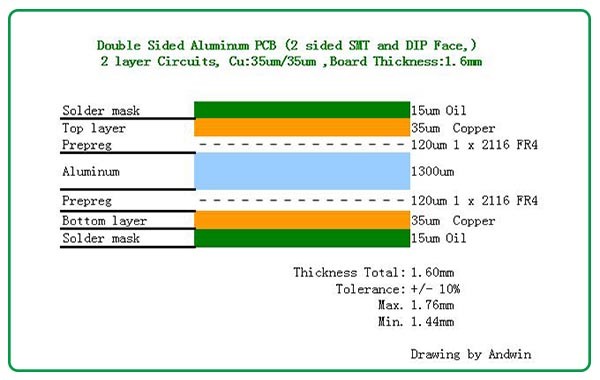

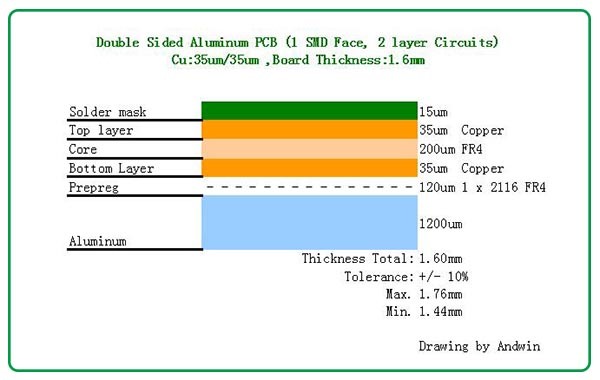

2 layers 2 sided aluminum metal core PCBs stack up

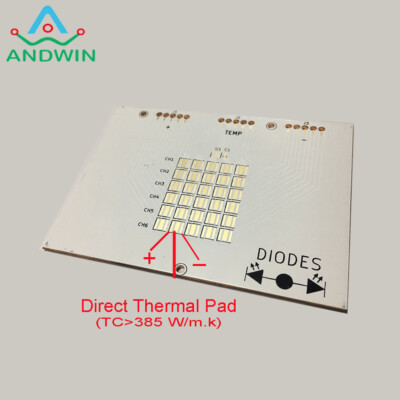

2 layers direct thermal heat pad metal core PCBs stack up

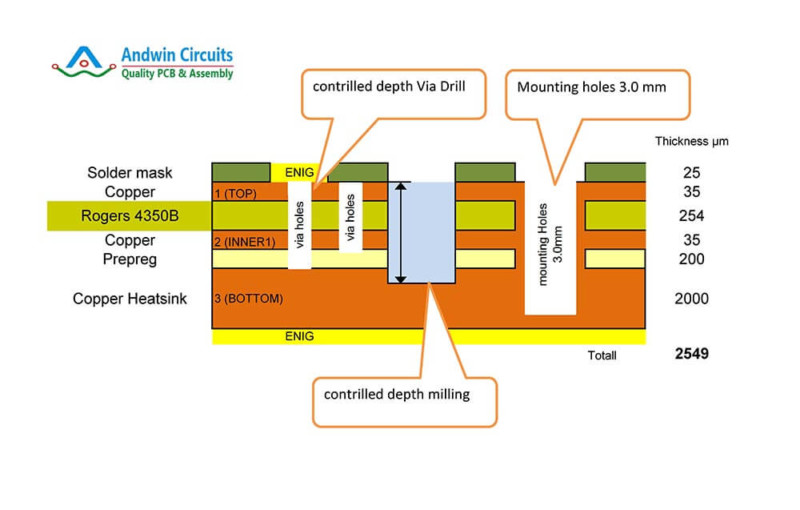

2 Layers Rogers 4350B PCB copper metal core PCB
Why Choose Andwin PCB for Metal Core PCB?
Experienced MCPCB manufacturer providing reliable thermal PCB solutions.
Custom sizes, materials, and designs from prototype to mass production.
Strict quality control for stable performance and consistent quality.
Applications of Metal Core PCB
LED Lighting

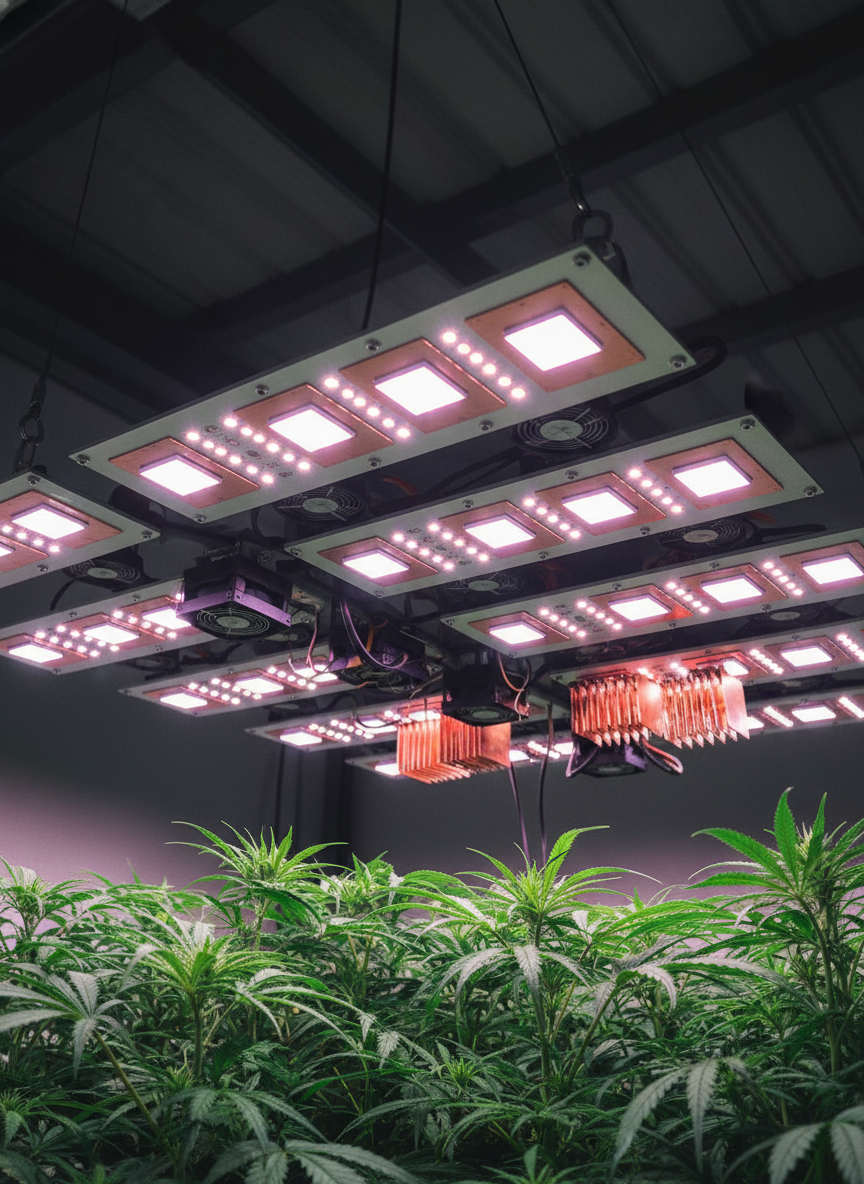

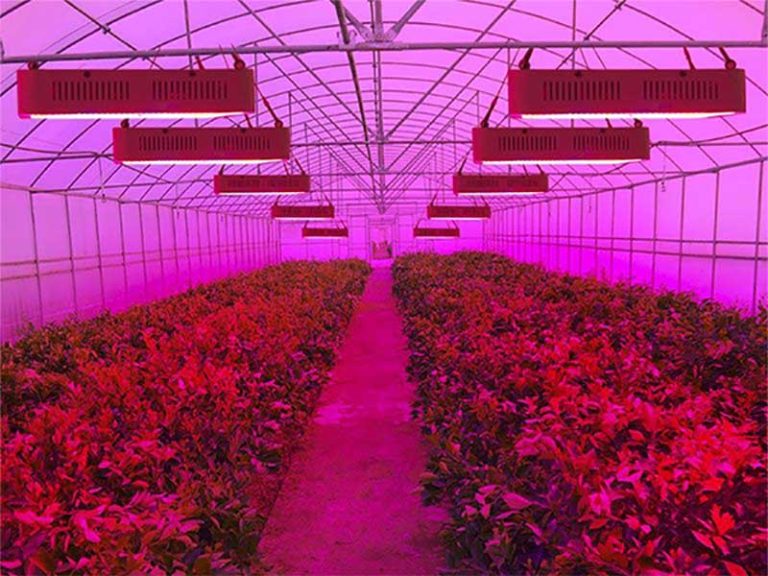

Metal Core PCB is widely used in LED products because LEDs generate significant heat during operation.
Applications include:
Automotive Electronics

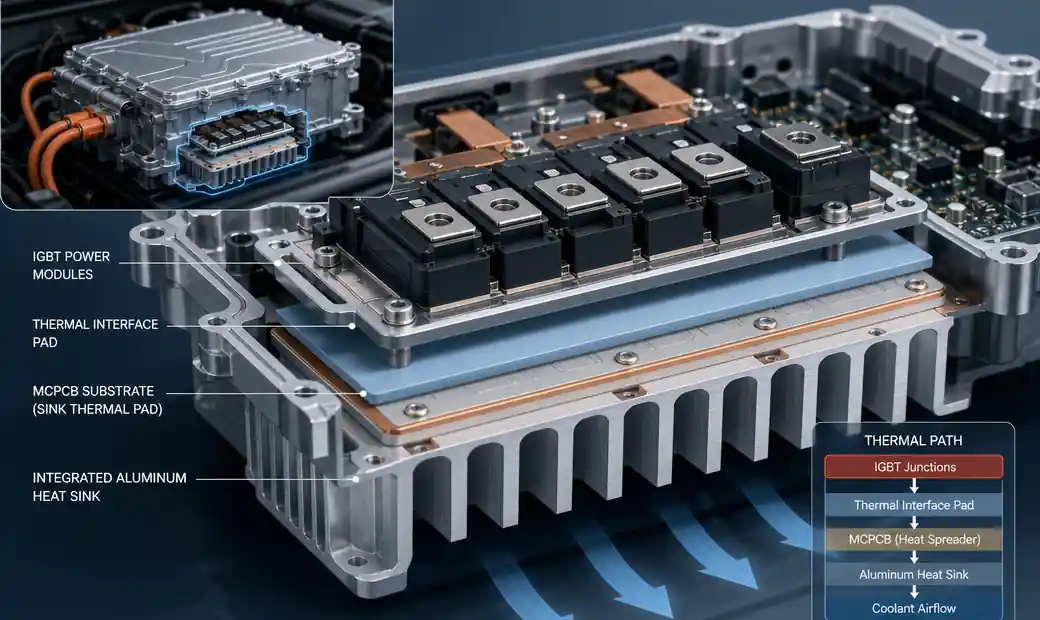

MCPCB helps improve reliability in automotive systems exposed to heat and vibration.
Applications include:
Power Electronics
Metal Core PCB provides thermal management for high-power electronic components.
Applications include:
Industrial Equipment
MCPCB is used in industrial systems requiring stable performance under continuous operation.
Applications include:
Metal Core PCB Manufacturing Capability
| Item | Capability |
|---|---|
| Substrate Material | Aluminum, Copper, Steel Alloy |
| PCB Type | Metal Core PCB / MCPCB |
| Layer Count | 1-2 Layers |
| Board Thickness | Customized |
| Thermal Conductivity | 1-12 W/m.K Standard |
| Surface Finish | HASL, ENIG, OSP |
| Maximum Size | Up to 1500mm |
| Application | LED, Automotive, Power Electronics |
Frequently Asked Questions
What is the difference between Metal Core PCB and FR4 PCB?
Metal Core PCB uses a metal substrate for heat dissipation, while FR4 PCB uses fiberglass epoxy material. MCPCB provides much better thermal performance for high-power applications.
What materials are used for Metal Core PCB?
The most common materials are aluminum, copper, and steel alloy. Aluminum is widely used because it provides a good balance between thermal performance and cost.
Is aluminum PCB the same as Metal Core PCB?
Aluminum PCB is one type of Metal Core PCB. MCPCB includes aluminum PCB, copper core PCB, and other metal substrate PCB solutions.
What industries use Metal Core PCB?
Metal Core PCBs are widely used in LED lighting, automotive electronics, power supplies, industrial equipment, and high-power electronic devices.
