2 Layers Direct Thermal Path Copper Core PCB

Andwin Circuits builds 2-layer Direct Thermal Path copper-core PCBs for designs too dense for one layer — LED thermal pads bond straight to the copper substrate, reaching up to 385 W/m·k direct thermal conductivity.

2-Layer DTP Copper Core Stack-up

Stack-up illustrations of the 2-layer direct thermal path copper-core board — LED thermal pads bond directly to the copper substrate with no dielectric layer.

2 Layers DTP MCPCB

Two-layer direct thermal path board with the LED mounted on the exposed copper core.

2-Layer DTP Copper Core

Copper-core variant reaching up to 385 W/m·k direct thermal conductivity.

DTP Copper Core w/ Isolated Holes

Copper-core DTP board with electrically isolated through holes for signal routing.

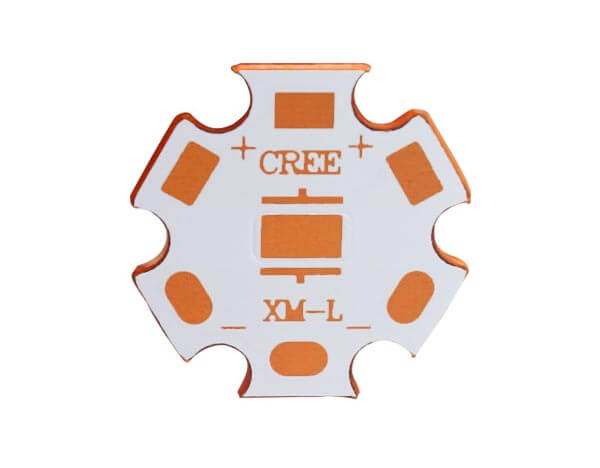

DTP Copper Core Product

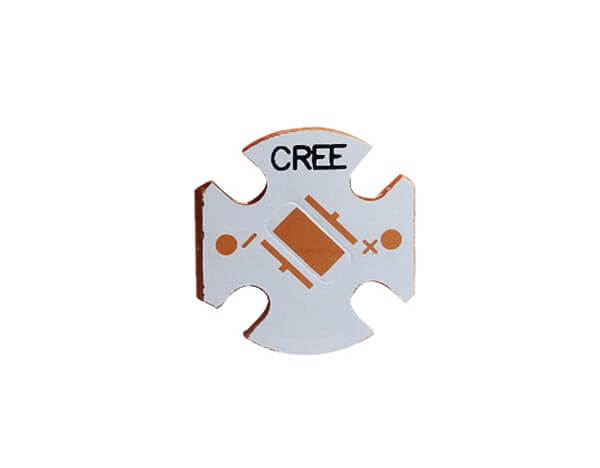

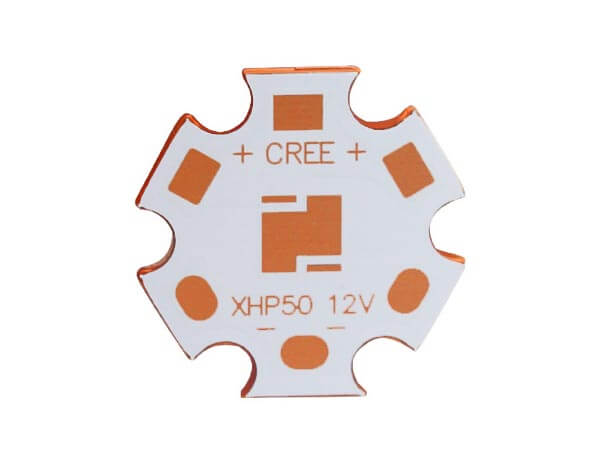

Finished 2-layer DTP copper-core board built by Andwin Circuits.

Which LEDs are suitable for DTP MCPCB?

These LED packages as compatible with Direct Thermal Path MCPCB.

Cree XP-G / E / C / G2
Cree XM-L / XM-L2
Cree MT-G / MT-G2
Cree MK-R
Cree XT-E
Cree XB-D

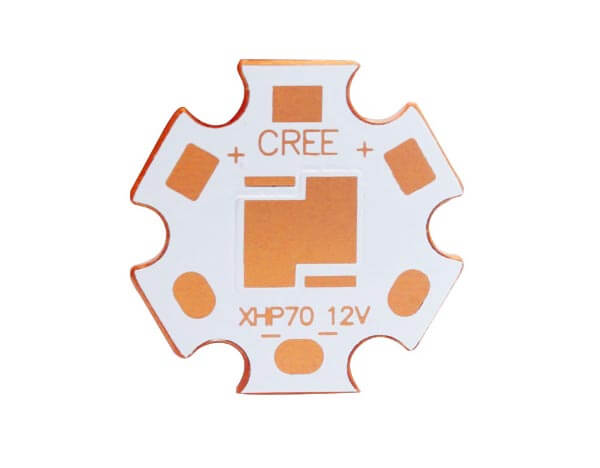

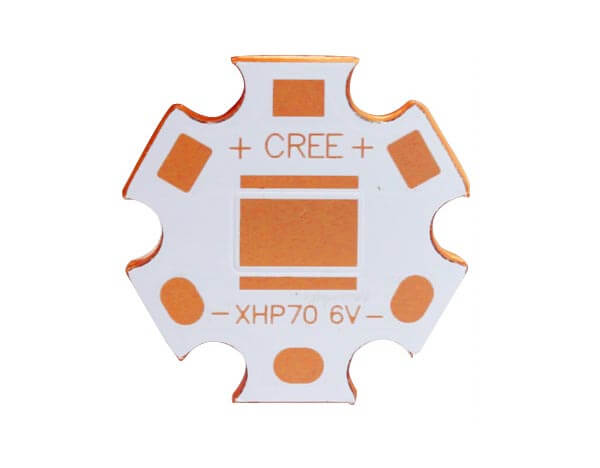

Cree XHP70 N4
Bridgelux SM4
Luxeon Rebel
Luxeon M
Luxeon-T
LEDEngin LZC / LZP

Nichia N219A / N219B
Seoul Z5P / Z5M
Osram Oslon SSL
Samsung 3535
LG Innotek 3535

Why Choose Us?

No design change required — DTP keeps your existing LED layout; the thermal pad simply bonds to the exposed copper core.

Thermal conductivity 175–385 W/m·k — Direct to copper reaches up to 385 W/m·k versus only 1.0 W/m·k for a regular MCPCB.

Lower LED junction temperature — Heat leaves the LED pad directly into copper, keeping the junction cooler under high power.

Longer LED life — Lower operating temperature extends the service life of power LEDs.

Most economical DTP solution — A cost-effective direct thermal path without redesigning the board.

Applications

High-power LED lighting fields where DTP MCPCB’s direct-bond cooling pays off.

Automotive LED lighting

Headlights, fog and interior high-power automotive LEDs.

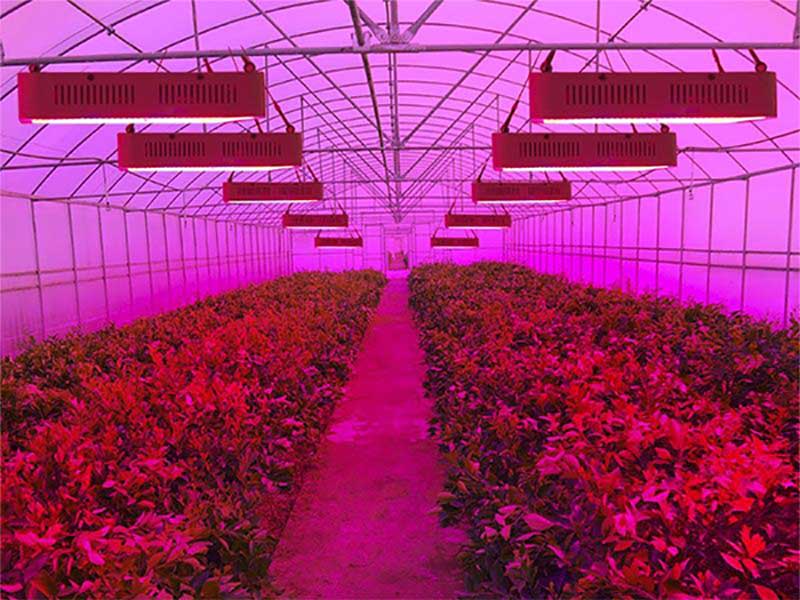

LED grow lighting

Horticulture / plant-growth high-intensity arrays.

LED stage lighting

Stage and architectural entertainment lighting.

LED ED street lighting

Street, tunnel and area outdoor illumination.

LED flash lighting

Camera flash and emergency strobe lighting.

Frequently Asked Questions

1. What is a 2-layer DTP copper core PCB?

It is a two-layer Direct Thermal Path board built on a copper substrate: the LED’s thermal pad bonds straight to the copper with no dielectric in the heat path, giving direct-to-copper conductivity up to 385 W/m·k while the second layer adds routing area.

2. When should I choose 2-layer instead of 1-layer DTP?

The source page notes that when a design has many components and no space to lay them out on a single layer, a 2-layer direct thermal path copper core PCB is required. The second layer gives the extra routing space while keeping the direct copper thermal path.

3. What thermal conductivity can I expect?

Direct to copper, DTP reaches up to 385 W/m·k (and 175 W/m·k direct to aluminum), versus only 1.0 W/m·k for a regular MCPCB — a drastic drop in thermal resistance.

4. Which LEDs can use DTP MCPCB?

The source page lists Cree XP-G/E/C/G2, XM-L/XM-L2, MT-G/MT-G2, MK-R, XT-E, XB-D, XHP70 N4, Bridgelux SM4, Luxeon Rebel/M/T, LEDEngin LZC/LZP, Nichia N219A/N219B, Seoul Z5P/Z5M, Osram Oslon SSL, Samsung 3535 and LG Innotek 3535.

5. How do I get a quote?

Send your PCB Gerber file and/or BOM to sales@andwinpcb.com (priority). Our team will quote as soon as possible, or you can submit the on-page form and we will contact you.
