ISOLA IS420 PCB TG170 High Thermal Performance PCB

TG170 high-thermal-performance FR-4 material from ISOLA Company for high-temperature and reliability-driven multilayer PWB applications.

About ISOLA IS420

ISOLA IS420 PCB raw material is a high performance 170°C glass transition temperature (Tg) FR-4 system, for multilayer Printed Wiring Board (PWB) applications where maximum thermal performance and reliability are required.

ISOLA IS420 laminate and prepreg products are manufactured with a unique high performance multifunctional epoxy resin, reinforced with electrical grade (E-glass) glass fabric. The system provides improved thermal performance and low expansion rates compared to traditional FR-4 while retaining FR-4 processability.

In addition to superior thermal performance, the mechanical, chemical and moisture resistance properties all equal or exceed traditional FR-4 materials. The IS420 system is also laser fluorescing and UV blocking for maximum compatibility with AOI systems, optical positioning systems and photoimagable solder mask imaging.

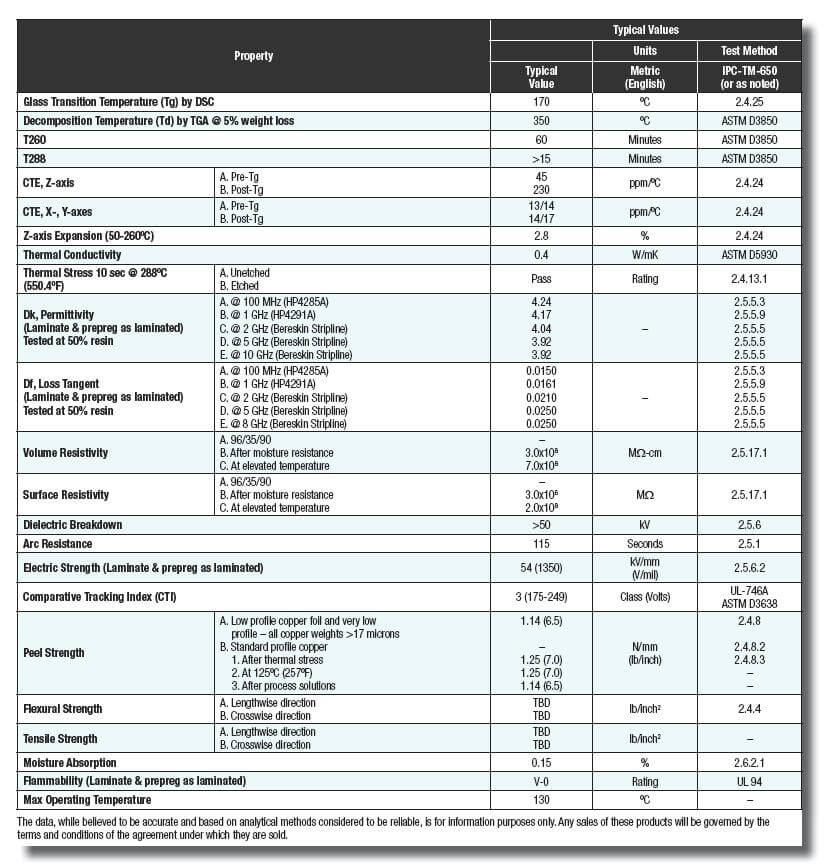

Technical Data

Key Specifications — ISOLA IS420 (per source product page text)

Parameter	ISOLA IS420
Glass Transition Temp (Tg)	170 °C
Thermal Decomposition Temp (Td)	350 °C
Dielectric Constant (Dk)	4.04
Dissipation Factor (Df)	0.021
IPC-4101 slash sheets	/98 /99 /101
Material type	High-Tg FR-4 (ISOLA IS420)
Supplier / brand	ISOLA Company
Certifications	RoHS · IATF 16949 · ISO 9001 · UL (File E492257, per cert image)

Why Megtron 6 High Speed PCB

Features of Megtron 6 High Speed PCB

High Tg 170°C

Standard glass transition temperature 170°C (per page) — above standard FR-4 for lead-free reliability.

High Td 350°C

Thermal decomposition 350°C — resists high-temperature assembly and rework.

Low Dk 4.04

Dielectric constant 4.04 (per page; test frequency not stated).

Low Df 0.021

Dissipation factor 0.021 (per page) — suitable for signal-integrity builds.

High Reliability

Provided by ISOLA Company for aerospace, automotive, medical and networking builds.

Genuine ISOLA material

ISOLA IS420 is supplied by ISOLA Company — authentic high-Tg FR-4.

ISOLA IS420 PCB Examples

Andwin builds ISOLA IS420 boards using this TG170 high-thermal-performance FR-4 for high-temperature and reliability-driven multilayer PWB applications.

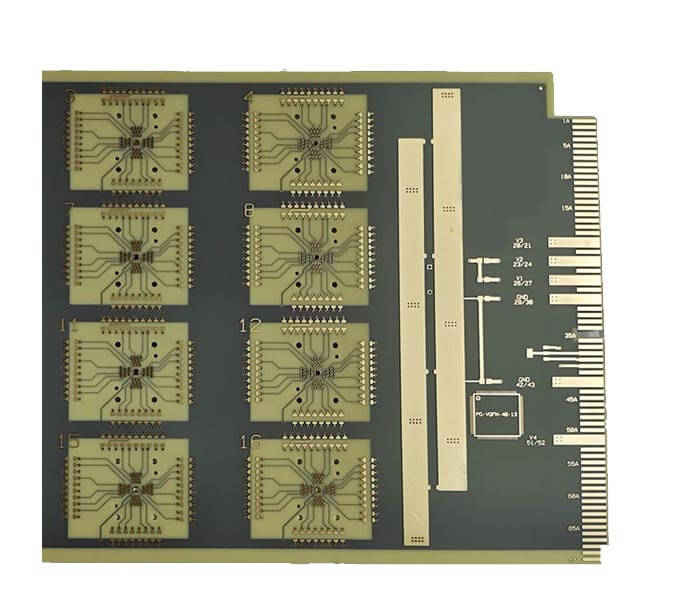

ISOLA IS420 Build

Source-page product photo.

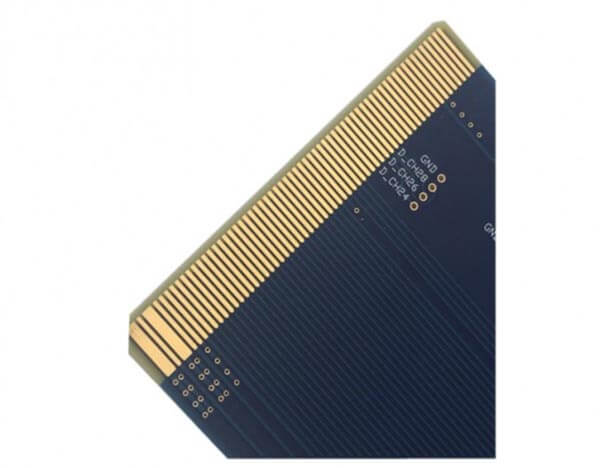

Gold Finger · IC TEST

Source-page product photo (IC TEST application).

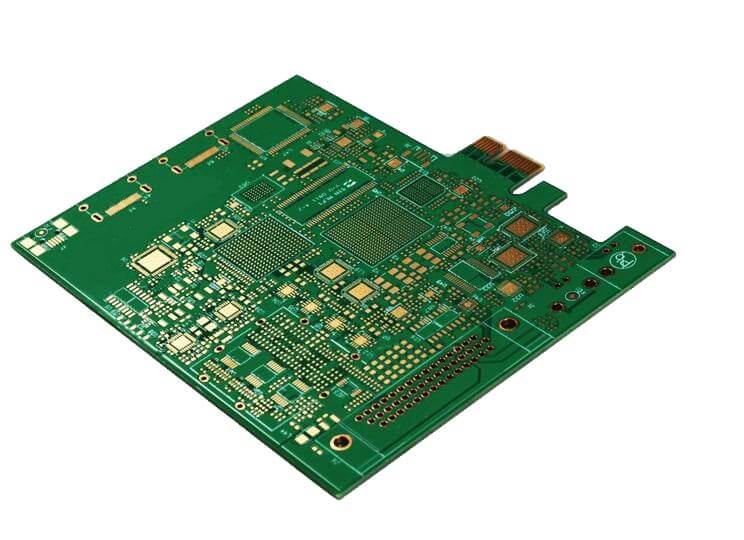

Multilayer PWB

Source-page product photo (ISOLA IS420).

Raw Material & Supplier

ISOLA

ISOLA IS420 is a TG170 high-thermal-performance FR-4 system supplied by ISOLA Company. Andwin fabricates ISOLA IS420 boards as a professional one-stop PCB manufacturer (Andwin Circuits Co., Limited).

Andwin Circuits

Why Choose Us?

✓ ISO 9001

ISO 9001 certified quality management (per page certificate).

✓ IATF 16949

Automotive-grade process certification (per page certificate).

✓ UL recognized

UL File Number E492257 (per page certificate image).

✓ RoHS compliant

Material and process are RoHS compliant (per page certificate).

✓ Genuine ISOLA material

ISOLA IS420 supplied by ISOLA Company — authentic high-Tg FR-4.

✓ One-stop solution

Professional one-stop PCB solution — design support through assembly.

ISOLA IS420 vs Standard FR-4

ISOLA IS420 (ISOLA) vs Standard FR-4

Property	ISOLA IS420	Standard FR-4
Laminate type	High-Tg FR-4 (ISOLA)	Standard FR-4 *
Glass transition (Tg)	170 °C	~130 – 140 °C *
Thermal decomposition (Td)	350 °C	~310 – 340 °C *
Dielectric constant (Dk)	4.04	~4.2 – 4.5 *
Dissipation factor (Df)	0.021	~0.020 – 0.025 *
Brand / source	ISOLA Company	Generic *
Best use	High-reliability: aerospace, automotive, medical, networking, IC test	General-purpose digital & power *

Frequently Asked Questions

1. What is ISOLA IS420?

ISOLA IS420 is a TG170 high-thermal-performance FR-4 PCB material supplied by ISOLA Company. It targets high-temperature and reliability-driven multilayer PWB applications where standard FR-4 is not enough.

2. What are the key thermal and electrical properties?

Per the source page: Tg 170°C, Td 350°C, Dk 4.04 and Df 0.021. Note the page does not state the test frequency for Dk/Df, and does not publish CTE, T260/T288, thickness or water absorption.

3. Which industries use ISOLA IS420?

The source page lists Aerospace & Defense, Automotive & Transportation, Medical & Instrumentation, and Networking & Communications, plus IC-test / gold-finger applications.

4. How does ISOLA IS420 compare with standard FR-4?

It offers a higher Tg (170°C vs ~130–140°C), higher Td (350°C), and a balanced Dk/Df while staying FR-4 process compatible. See the comparison table above for a side-by-side view.

5. What files should I send to get an ISOLA IS420 PCB quote?

Send your Gerber files (RS-274X / ODB++) and BOM, plus stack-up requirements (layer count, finished thickness, surface finish, impedance if needed). Andwin provides a free DRC / DFM review before production.

6. What are the lead time and minimum order quantity (MOQ)?

Lead time and MOQ depend on your stack-up, layer count and order volume. Please confirm the exact figures with our sales team when you send the inquiry, so we quote against your real project rather than a generic number.
