Taconic TLX-8 PCB

Taconic TLX-8 high frequency RF PCB

Widely used in

  • Antennas

  • Mixers, splitters

  • Filters & combiners

  • Passive Components

Contact now

What is Taconic TLX-8 RF microwave PCB?

Taconic TLX-8 is belong Taconic TLX series,
Taconic TLX-8 DK 2.55+/- 0.04 Dielectric Thickness 0.064mm – 6.35mm ( 0.0025 – 0.250 inch )
It is suitable for low layer count microwave designs

  • Excellent PIM values in PCBs (measured at lower than -160 dBc*)

  • Excellent mechanical & thermal properties

  • Low and stable Dk

  • Low moisture absorption

  • Tightly controlled DK

  • Low DF

  • UL 94 VO rating

  • For low layer count microwave designs

Taconic TLX

TLX-8 Typical Values
PropertyTest MethodUnitValueUnitValue
Dk @ 10 GHzIPC-650 2.5.5.32.552.55
Df @ 1.9 GHzIPC-650 2.5.5.5.10.00120.0012
Df @ 10 GHzIPC-650 2.5.5.5.10.00170.0017
Dielectric BreakdownIPC-650 2.5.6kV>45kV>45
Moisture AbsorptionIPC-650 2.6.2.1%0.02%0.02
Flexural Strength (MD)ASTM D 790psi28900N/mm2
Flexural Strength (CD)ASTM D 790psi20600N/mm2
Tensile Strength (MD)ASTM D 902psi35600N/mm2
Tensile Strength (CD)ASTM D 902psi27500N/mm2
Elongation at Break (MD)ASTM D 902%3.94%3.94
Elongation at Break (CD)ASTM D 902%3.92%3.92
Young's Modulus (MD)ASTM D 902kpsi980N/mm2
Young's Modulus (CD)ASTM D 902kpsi1200N/mm2
Young's Modulus (MD)ASTM D 3039kpsi1630N/mm2
Poisson'S RatioASTM D 30390.135N/mm
Peel Strength (1 oz. ed)IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress)lbs./linear inch15N/mm
Peel Strength (1 oz. RTF)IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress)lbs./linear inch17N/mm
Peel Strength (1/2oz. ed)IPC-650 2.4.8.3 (Elevated Temp.)lbs./linear inch14N/mm
Peel Strength (1/2oz. ed)IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress)lbs./linear inch11N/mm
Peel Strength (1 oz. rolled)IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress)lbs./linear inch13N/mm2.1
Thermal ConductivityASTM F433/ASTM 1530-06W/M*K0.19W/M*K0.19
Dimensional Stability (MD)IPC-650 2.4.39 Sec. 5.4 (After Bake)mils/in.0.06mm/M
Dimensional Stability (CD)IPC-650 2.4.39 Sec. 5.4 (After Bake)mils/in.0.08mm/M
Dimensional Stability (MD)IPC-650 2.4.39 Sec. 5.5 (Thermal Stress)mils/in.0.09mm/M
Dimensional Stability (CD)IPC-650 2.4.39 Sec. 5.5 (Thermal Stress) mils/in.0.1mm/M
Surface ResistivityIPC-650 2.5.17.1 Sec. 5.2.1 (Elevated Temp.)Mohm6.605 x 108Mohm6.605 x 108
Surface ResistivityIPC-650 2.5.17.1 Sec. 5.2.1 (Humidity Cond.)Mohm3.550 x 106Mohm3.550 x 106
Volume ResistivityIPC-650 2.5.17.1 Sec. 5.2.1 (Elevated Temp.)Mohm/cm1.110 x 1010Mohm/cm1.110 x 1010
Volume ResistivityIPC-650 2.5.17.1 Sec. 5.2.1 (Humidity Cond.)Mohm/cm1.046 x 1010Mohm/cm1.046 x 1010
CTE (X axis) (25-260 C)IPC-650 2.4 .41/ASTM D 3386 ppm/C 21ppm/C21
CTE (Y axis) (25-260 C)IPC-650 2.4 .41/ASTM D 3386 ppm/C 23ppm/C23
CTE (Z axis) (25-260 C)IPC-650 2.4 .41/ASTM D 3386 ppm/C 215ppm/C215
Density (Specific Gravity)ASTM D 792g/cm32.25g/cm32.25
Td (2% Weight Loss)IPC-650 2.4.24.6 (TGA)C535C
Td (5% Weight Loss)IPC-650 2.4.24.6 (TGA)C553C
Flammability RatingUL 94V-0V-0

Taconic TLX offers reliability in a wide range of RF applications.
This material is versatile due toits 2.45 – 2.65 DK range
And, available thicknesses and copper cladding.

It is suitable for low layer count microwave designs.
TLX PTFE fiberglass laminates are ideal for use in radar systems,
Mobile communications, microwave test equipment,
microwave transmission devices and RF components.

TLX is a workhorse in the RF microwave substrate world where
The fiberglass offers mechanical reinforcement,
Wherever a substrate experiences severe environments,
Such as: resistance to creep for PWBs bolted to a housing that encounter high
levels of vibration during space launch.

High temperature exposure in engine modules, radiation resistance in space
(see NASA’s website for low outgassing materials),
Antenna for warships that undergo extreme environments at sea and
A substrate for altimeters that see a wide range of temperatures during flight.

The wide range of dielectric constants available enable the
Manufacture of couplers, splitters, combiners, amplifiers,antenna and other components.

Which type of Taconic TLX series is avaible in Andwin Circuits?

  • TLX-0

  • TLX-9

  • TLX-8

  • TLX-7

  • TLX-6

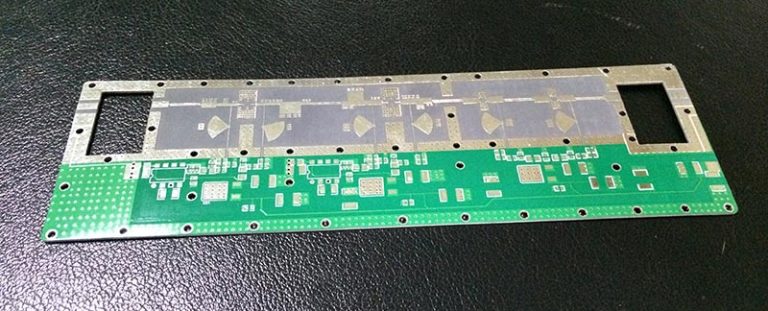

Taconic TLX microwave PCB

Andwin is a better choice in High Frequency  PCB manufacturer

Ask a quote now

Why choose Andwin Circuits?

  • 1.Stock raw material,short lead time.

  • 2. More than 16 years PCB manufacturing experience.

  • 3.Rich experience engineer in taconic TLX,ensure quality.

  • 4. Mass production line,reasonable price.

  • 5.Professional service staff,communication easily.
