circuit board assembly

1. Common problems in circuit board assembly

Circuit board assembly is a vital part of the manufacturing process of modern electronic equipment.

However, in this process, various problems are often encountered, which not only affect the quality of the product, but also may lead to reduced production efficiency. First of all, welding defects are one of the most common problems in circuit board assembly. Welding defects include cold welding, too many or too few solder joints, uneven solder joints, etc. These defects are usually caused by improper welding temperature, poor solder quality or irregular operation. To solve these problems, manufacturers should ensure the use of high-quality solder and strictly control the welding temperature and time. In addition, regular training of operators to improve their skill level is also an important measure to reduce welding defects.

Secondly, the misalignment and damage of components are also common problems in circuit board assembly.

The misalignment of components is usually caused by the insufficient precision of the placement machine or the negligence of the operator, while the damage of components may be caused by electrostatic discharge (ESD) or mechanical stress. To avoid these problems, manufacturers should regularly calibrate the placement machine to ensure its accuracy. At the same time, operators should wear anti-static wristbands and handle components carefully during operation to reduce the risk of damage.

In addition, the cleanliness of the circuit board is also an important factor affecting the quality of assembly.

Residual flux, dust and other contaminants may cause short circuits or signal interference on the circuit board, thus affecting the performance of the product. To solve this problem, manufacturers should use appropriate cleaning agents during the assembly process and perform thorough cleaning after the assembly is completed. In addition, keeping the production environment clean and dust-free is also an important measure to ensure the cleanliness of the circuit board.

Furthermore, design defects of the circuit board are also an important cause of assembly problems.

Design defects may include unreasonable component layout, inappropriate routing design, etc. These defects will not only increase the difficulty of assembly, but may also affect the performance and reliability of the product. To solve this problem, manufacturers should conduct sufficient simulation and testing in the design stage to ensure the rationality and manufacturability of the design. In addition, maintaining close communication with suppliers and customers, and timely feedback and solving problems in the design are also important means to improve the quality of the design.

Finally, quality control in the production process is also the key to ensuring the quality of circuit board assembly.

Manufacturers should establish a strict quality control system, including incoming material inspection, process inspection and finished product inspection. Through these measures, problems in production can be discovered and corrected in a timely manner to ensure the quality and reliability of the product.

In summary, common problems in PCB assembly mainly include soldering defects, component misalignment and damage, insufficient PCB cleanliness, design defects, and lax quality control. By adopting corresponding solutions, manufacturers can effectively improve the quality and efficiency of PCB assembly, thereby providing customers with high-quality electronic products.

GET PCB MANUFACTURING AND ASSEMBLY QUOTE NOW!

2. The process of circuit board assembly

Next, the manufacturing process of the circuit board begins. Typically, manufacturers use printed circuit board (PCB) technology to convert the design drawings into actual circuit boards. This process involves laminating copper foil onto the substrate and then removing excess copper through chemical etching or laser cutting technology to form the desired circuit pattern. After completing this process, the circuit board needs to be drilled to install various electronic components.

(1) Component installation

After the circuit board is manufactured, the assembly process officially begins. The first step is the installation of components. Components can be divided into surface mount components (SMT) and through-hole components (THT). Surface mount components are directly mounted on the surface of the circuit board by automated equipment, while through-hole components require manual or semi-automated equipment to insert them into pre-drilled holes. Regardless of the type of component, the accuracy and firmness of the installation are crucial.

(2) Soldering process

After the components are installed, the next step is the soldering process. Soldering is a key step in fixing the components on the circuit board. For surface mount components, reflow soldering technology is usually used. Reflow soldering melts the solder paste by heating, thereby firmly fixing the components on the circuit board. For through-hole components, wave soldering technology is used to achieve soldering by passing the circuit board through the molten solder wave. Regardless of the soldering technology used, the soldering quality must be strictly controlled to ensure the reliability and performance of the circuit board.

(3) Cleaning and inspection

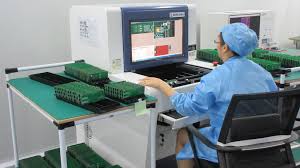

After soldering, the circuit board needs to be cleaned and inspected. Cleaning is to remove the residual flux and other impurities in the soldering process to ensure the cleanliness and performance of the circuit board. Inspection is to check the electrical performance and physical integrity of the circuit board through various test equipment and methods. Common inspection methods include visual inspection, automatic optical inspection (AOI) and functional testing.

(4) Packaging and shipping

Finally, the circuit boards that have passed cleaning and inspection will enter the final stage of assembly, namely packaging and shipping. At this stage, the circuit boards are packaged as finished products and are labeled and sorted according to customer needs. After packaging, the circuit boards are shipped to customers, completing the entire assembly process.
