High Multilayer PCB Production and Process Control

Abstract

This paper provides a comprehensive overview of high multilayer printed circuit board (PCB) production and the critical process controls required to ensure quality and reliability. As electronic devices become increasingly complex, the demand for high multilayer PCBs (typically 8-32 layers or more) has grown significantly. The manufacturing of these sophisticated boards presents numerous technical challenges that require precise process control at every stage. This article examines the complete production workflow, from material selection to final testing, highlighting key process parameters, common defects, and quality control measures. Special attention is given to lamination, drilling, plating, and registration control—processes that become increasingly critical as layer counts rise. The paper also discusses emerging trends in high multilayer PCB manufacturing and the process control technologies that enable these advancements.

1. Introduction

The evolution of electronic devices toward higher performance, smaller form factors, and increased functionality has driven the development of high multilayer printed circuit boards. These complex substrates, typically defined as having 8 or more conductive layers, enable the dense interconnections required by modern digital systems while maintaining signal integrity and power distribution characteristics.

High multilayer PCBs find applications in:

High-performance computing systems
Network infrastructure equipment
Aerospace and defense electronics
Medical imaging systems
Advanced telecommunications hardware

Producing these boards requires exceptional process control due to:

Increased likelihood of registration errors
Greater susceptibility to delamination
More complex impedance control requirements
Challenging plating uniformity across thick stacks
Higher incidence of drilling defects

This paper systematically examines the production process and identifies critical control points that determine final product quality.

2. Material Selection and Preparation

2.1 Base Materials

The foundation of any multilayer PCB begins with proper material selection. Key considerations include:

Dielectric materials: High-performance FR-4, polyimide, or specialized low-loss materials
Copper foil: Typically electrodeposited (ED) or rolled annealed (RA) copper with various surface treatments
Prepreg: Resin-impregnated glass fiber that bonds core layers during lamination

For high layer counts, materials must exhibit:

High glass transition temperature (Tg > 170°C)
Low coefficient of thermal expansion (CTE)
Excellent dimensional stability
Consistent dielectric properties

2.2 Material Handling and Storage

Proper material control begins before production:

Temperature and humidity-controlled storage (typically 20-25°C, 30-50% RH)
FIFO (first-in-first-out) inventory management
Baking procedures for moisture removal when required

3. Inner Layer Processing

3.1 Imaging and Etching

The process of defining inner layer circuits involves:

Cleaning: Acidic or alkaline cleaners remove oxides and contaminants
Lamination: Dry film resist application with controlled temperature, pressure, and speed
Exposure: Precise alignment and UV exposure through phototool
Development: Alkaline solution removes unexposed resist
Etching: Ammoniacal or cupric chloride etchants define copper traces
Strip: Removal of remaining resist

Critical controls:

Exposure energy (typically 50-100 mJ/cm²)
Etch rate and uniformity (maintaining 1:1 aspect ratio)
Line width tolerance (usually ±10% of nominal)

3.2 Automated Optical Inspection (AOI)

100% inspection of inner layers detects:

Opens and shorts
Necking or bulging traces
Etching defects
Registration errors

Advanced systems use pattern matching algorithms with resolution down to 10μm.

4. Lamination Process

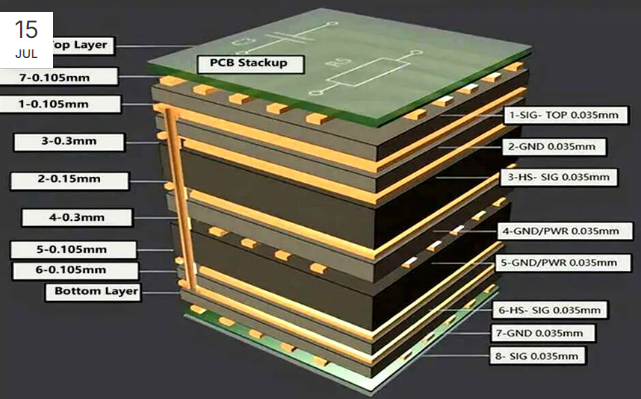

4.1 Layup

The stacking of inner layers, prepreg, and copper foil requires:

Precise layer-to-layer registration
Controlled prepreg resin content (typically 42-52%)
Proper bookending with steel plates

4.2 Lamination Cycle

A typical thermal pressure cycle includes:

Initial press: 50-100 psi at room temperature
Ramp: 2-5°C/min to 180-200°C
Cure: 60-120 minutes at peak temperature
Cool down: Controlled rate of 2-3°C/min

Critical parameters:

Peak temperature (±2°C control)
Pressure profile (typically 200-500 psi)
Vacuum level (<5 Torr preferred)
Ramp rates (affects resin flow)

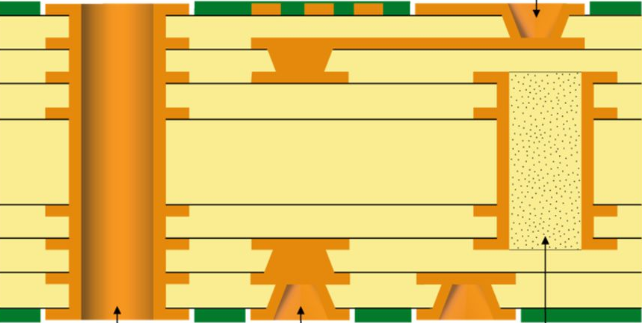

4.3 Sequential Lamination

For very high layer counts (>16 layers), sequential lamination divides the stack into sub-composites that are later joined. This approach:

Reduces registration errors
Improves yield
Allows for buried via structures

5. Drilling Process

5.1 Mechanical Drilling

High multilayer boards present drilling challenges due to:

Increased stack thickness (may exceed 6mm)
Mixed materials with different drilling characteristics
Small via diameters (often 0.15-0.30mm)

Key controls:

Spindle speed (80-150 krpm)
Feed rate (1-5 m/min)
Retract rate
Hit count per drill bit (typically 500-2000 hits)
Chip load (0.02-0.08mm/rev)

5.2 Laser Drilling

For microvias (<100μm), UV or CO₂ lasers provide:

Higher precision
Smother via walls
No drill bit wear

Process controls include:

Pulse energy
Frequency
Number of pulses
Focus position

6. Plating Processes

6.1 Desmear and Etchback

Prepares hole walls for plating by:

Removing drilling debris (desmear)
Creating micro-roughness (etchback)

Methods:

Chemical (permanganate)
Plasma
Laser

6.2 Electroless Copper

Provides initial conductive layer:

Typically 0.3-1.0μm thickness
Controlled deposition rate
Uniform coverage

6.3 Electrolytic Plating

Builds up copper thickness (25-35μm):

Acid copper sulfate baths
Current density control (1-3 A/dm²)
Solution agitation
Temperature control (20-25°C)

Critical metrics:

Throwing power (hole center vs. surface thickness)
Uniformity across panel
Ductility (important for thermal cycling)

7. Outer Layer Processing

7.1 Imaging

Similar to inner layers but with additional considerations:

Tighter registration tolerances
Thicker resists for plating
Finer feature requirements

7.2 Pattern Plating

Adds copper and tin/lead or tin as etch resist:

Copper: 20-30μm
Tin: 5-10μm

7.3 Etching

Removes unwanted copper while preserving plated features:

Typically alkaline ammonia or cupric chloride
Critical control of undercut

8. Solder Mask and Surface Finish

8.1 Solder Mask Application

Protects copper and prevents bridging:

Liquid photoimageable (LPI) most common
Cured thickness 15-30μm
Resolution to 50μm openings

8.2 Surface Finishes

Common options include:

ENIG (Electroless Nickel Immersion Gold)
Immersion Silver
OSP (Organic Solderability Preservative)
ENEPIG (for wire bonding)

Each requires specific process controls for thickness and composition.

9. Electrical Testing and Inspection

9.1 Electrical Testing

Flying probe or fixture-based testing
Continuity and isolation checks
Impedance testing for critical nets

9.2 Final Inspection

Visual examination
Dimensional verification
Microsection analysis for process validation

10. Process Control Methodologies

Effective manufacturing relies on:

10.1 Statistical Process Control (SPC)

Control charts for key parameters
Cp/Cpk analysis for capability
Trend monitoring

10.2 Design of Experiments (DOE)

Used to optimize processes and understand parameter interactions.

10.3 Advanced Process Control

Real-time monitoring with feedback loops
Predictive maintenance
Machine learning for defect prediction

11. Emerging Trends

11.1 Higher Layer Counts

40+ layer boards becoming more common
Mixed dielectric constructions
Embedded passive components

11.2 Advanced Materials

Low-loss dielectrics for high-speed signals
High thermal conductivity materials
Flexible-rigid combinations

11.3 Automation and Industry 4.0

Smart factories with IoT connectivity
Digital twins for process simulation
AI-driven quality prediction

12. Conclusion

The production of high multilayer PCBs represents one of the most challenging manufacturing processes in the electronics industry. Success requires meticulous control at every process step, from material handling to final testing. As layer counts continue to increase and feature sizes shrink, manufacturers must implement increasingly sophisticated process control methodologies. The future of high multilayer PCB production lies in the integration of advanced materials, intelligent process control systems, and comprehensive data analytics to achieve the required levels of quality and reliability.
