Metal Core PCB Manufacturer: The Future of High-Performance PCBs

With the increasing demand for high-performance electronics, the need for advanced printed
circuit boards (PCBs) is also on the rise. One such type of PCB that has gained immense
popularity in recent years is the metal core PCB. These PCBs are designed with a metal
core, usually aluminum or copper, that serves as a heat sink, making them ideal for high-
power applications.

If you’re looking for a metal core PCB manufacturer, you’re in the right place. In this
article, we’ll discuss everything you need to know about metal core PCBs and how to choose
the right manufacturer for your needs.

What is a Metal Core PCB?

metal core PCB, also known as an MCPCB, is a type of printed circuit board that has a
metal core layer instead of the traditional FR4 or other substrate material. The metal core
serves as a heat sink, dissipating heat generated by the components on the board. This
makes metal core PCBs ideal for high-power applications that generate a lot of heat, such
as LED lighting, power supplies, and motor controllers.

The metal core layer is typically made of aluminum or copper, which has high thermal
conductivity. The metal core is sandwiched between two layers of dielectric material, which
provide electrical insulation. The top layer of the board is a copper layer, where the
components are mounted and the traces are routed.

GET IN TOUCH!

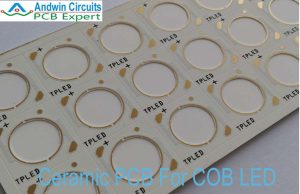

ceramic pcb

Advantages of Metal Core PCBs

Metal core PCBs offer several advantages over traditional PCBs, including:

1. Better Thermal Management: The metal core layer acts as a heat sink, dissipating heat
generated by the components on the board. This helps to prevent overheating and ensures the
longevity of the components.

2. Higher Power Density: Metal core PCBs can handle higher power densities than traditional
PCBs, making them ideal for high-power applications.

3. Improved Performance: Metal core PCBs offer better performance than traditional PCBs, as
they can handle higher currents and voltages without overheating.

4. Smaller Size: Metal core PCBs can be designed with smaller sizes, as they require fewer
layers than traditional PCBs.

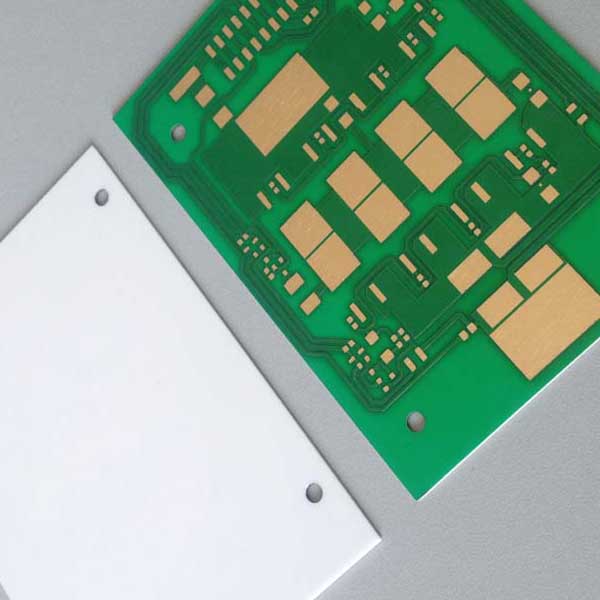

ceramic pcb with resistor

Choosing the Right Metal Core PCB Manufacturer

When choosing a metal core PCB manufacturer, there are several factors to consider,
including:

1. Experience: Look for a manufacturer with extensive experience in designing and
manufacturing metal core PCBs. This will ensure that they have the expertise and knowledge
to deliver high-quality products.

2. Quality: Ensure that the manufacturer uses high-quality materials and processes to
manufacture their metal core PCBs. This will ensure that the PCBs meet the required
specifications and perform optimally.

3. Customization: Look for a manufacturer that offers customization options, such as
different metal core materials, thicknesses, and dielectric materials. This will allow you
to design a PCB that meets your specific requirements.

4. Turnaround Time: Look for a manufacturer that offers fast turnaround times, as this will
help you to get your products to market quickly.

5. Price: Compare prices from different manufacturers to ensure that you get the best value
for your money. However, don’t compromise on quality for the sake of price.

zirconia ceramic PCB

Conclusion

Metal core PCBs are the future of high-performance PCBs, offering better thermal
management, higher power density, improved performance, and smaller sizes than traditional
PCBs. When choosing a metal core PCB manufacturer, consider factors such as experience,
quality, customization, turnaround time, and price. With the right manufacturer, you can
design and manufacture metal core PCBs that meet your specific requirements and deliver
optimal performance.
