Metal core PCB panelization

During the difficulty of CNC Cutting in Metal core pcb Process,
Our recommendation of panelization as follow:

1. square or rectangle

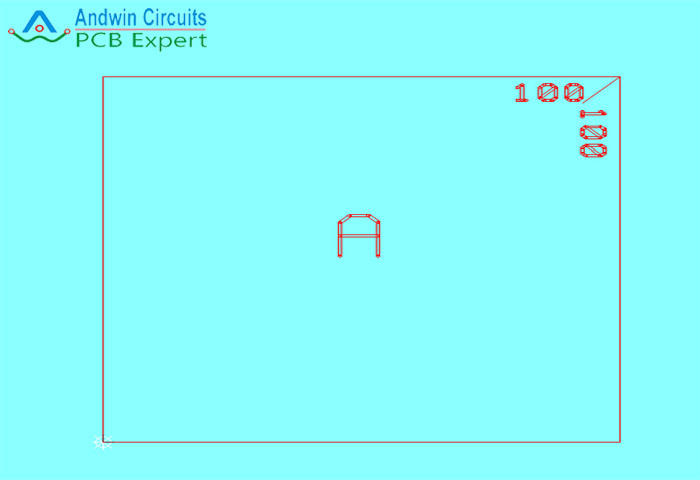

For example ,unit size as follow

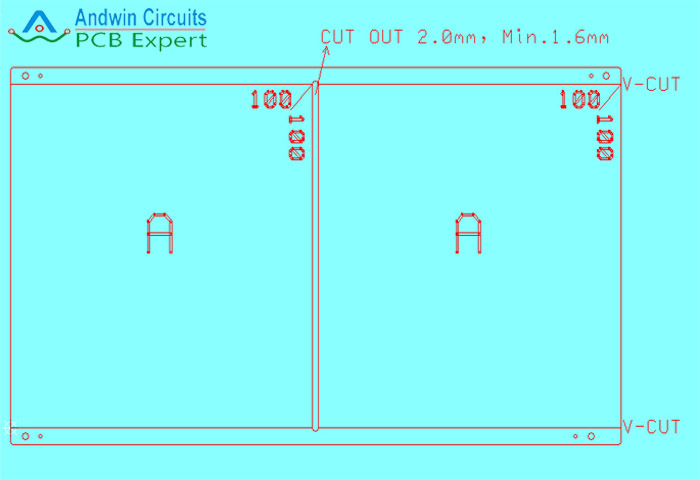

Recommend Panel Drawing

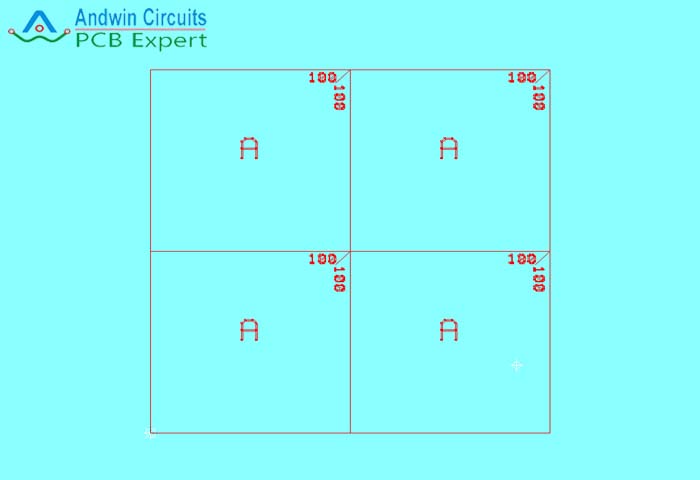

If there are fiducial mark and tooling hole in unit,follow is acceptable.

2.Round shape

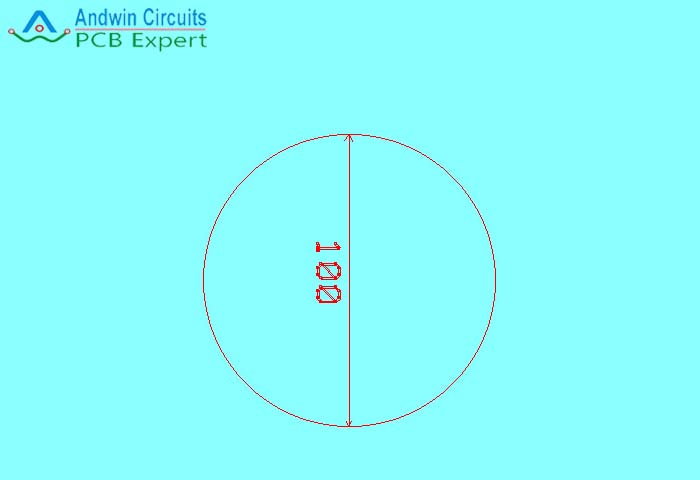

For example ,unit shap as follow

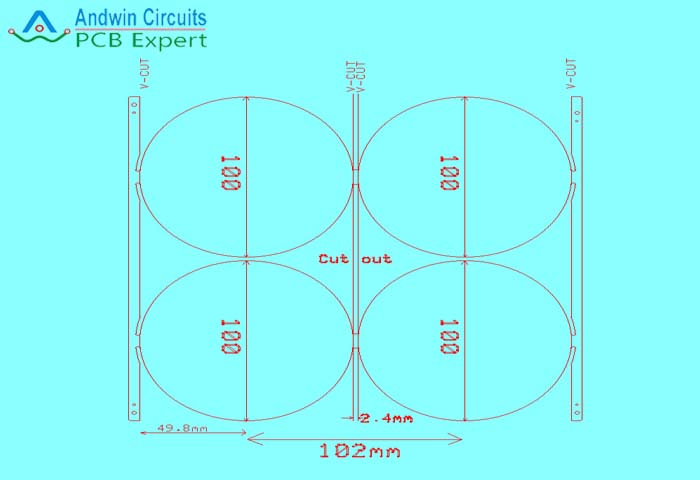

If there are fiducial mark and tooling hole in unit,follow is acceptable.

3. Irregular shape

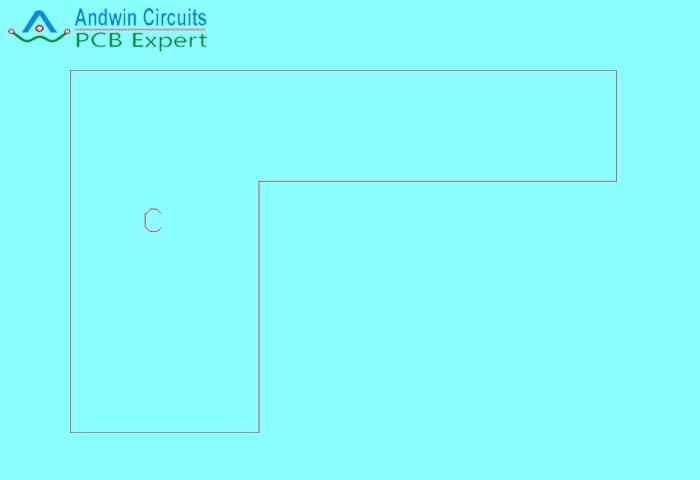

For example ,unit shap as follow

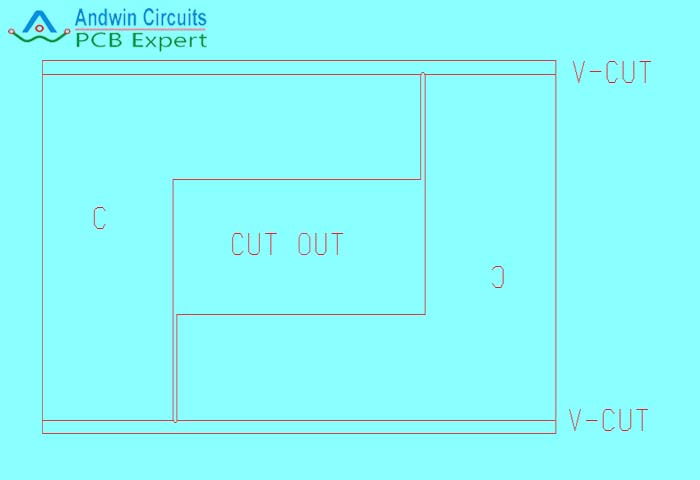

If there are fiducial mark and tooling hole in unit,follow is acceptable.
