Rigid-Flex PCB Prototype

What is a Rigid Flex PCB?

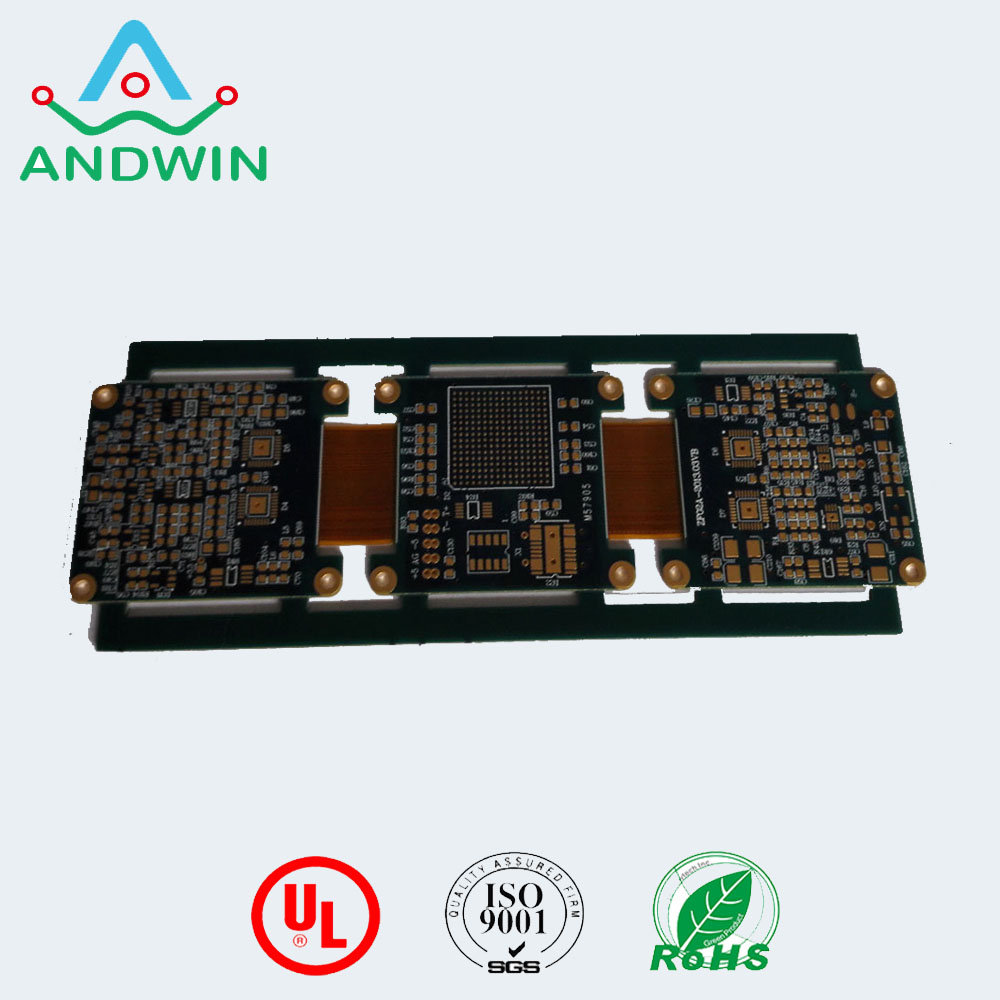

Rigid-flex PCBs are boards using a combination of flexible and rigid board technologies in an application.

Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application.

The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Advantage of Rigid Flex Circuit

High Density Applications: The rigid area of a rigid flex circuit is utilized for high density device population. In addition, finer line width & space is allowed in flexible circuits, so more density can be used. Denser device populations and lighter conductors can be designed into a product, freeing space for additional product features.

More application: Advances in rigid circuit board technology has broadened the applications on electronic products from communication, computer, and consumer electronics, to medical, automotive, and military electronics.
Increasing demand for more powerful and smaller products drives the need for multiple layers to accommodate denser, finer line width and spacing and smaller hole sizes.

Highly complex configurations
Less electronics components need
Reduced interconnections
Package Size and Weight Reduction

Additionally, air gap which widely used in a multi-layer flex circuit can be also used, and other feature such as controlled impedance, EMI shielding, panelization, stiffeners , PSA, Circuit Assembly (SMT) are also available.

How to get a Rigid Flex PCB quote?

Andwin Circuits well know Rigid flex PCB, provide high quality Rigid flex PCB for customers Worldside.

1-16 multilayers rigid flex PCB

Quick turn delivery in 7 Days.

MOQ:2PCS

If you did not find a correct Rigid-flex PCBs supplier. Andwin circuits’ more reasonable price and shorter lead time , will help your products faster get into market.

GET IN TOUCH!
