The Comprehensive Guide to HASL PCB: Process, Advantages, and Applications

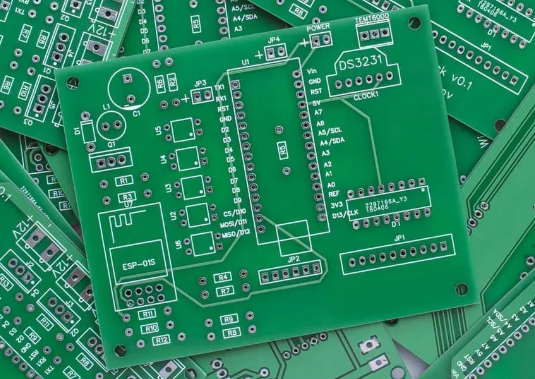

Introduction to HASL PCB

Hot Air Solder Leveling (HASL) remains one of the most widely used surface finishing techniques in printed circuit board (PCB) manufacturing. For decades, this reliable method has served as the industry standard for protecting copper traces from oxidation while providing excellent solderability. HASL PCBs continue to dominate many segments of electronics manufacturing due to their cost-effectiveness, durability, and proven performance in various applications.

This comprehensive article explores the HASL PCB process, its technical specifications, advantages over alternative finishes, limitations, and typical applications. We’ll examine both traditional leaded HASL and the more environmentally friendly lead-free HASL variants, providing electronics engineers and PCB designers with the information needed to make informed decisions about surface finishes for their projects.

The HASL PCB Manufacturing Process

Step 1: PCB Fabrication

The HASL process begins with a fully fabricated PCB that has exposed copper pads and traces. The board has already undergone all the necessary etching, drilling, and multilayer lamination processes typical in PCB manufacturing.

Step 2: Cleaning and Preparation

Before applying solder, the PCB undergoes thorough cleaning to remove any oxides, contaminants, or residues from the copper surfaces. This typically involves:

Chemical cleaning with acidic solutions
Micro-etching to create an optimal surface texture
Rinsing with deionized water
Drying to prevent moisture entrapment

Step 3: Flux Application

A liquid flux is applied to the entire board surface to:

Prevent oxidation during the soldering process
Improve solder wettability
Ensure uniform solder adhesion
The flux type (rosin-based, water-soluble, or no-clean) is selected based on the application requirements and subsequent assembly processes.

Step 4: Solder Application

The prepared PCB is immersed in a molten solder bath:

For leaded HASL: 63/37 tin-lead alloy (melting point ~183°C/361°F)
For lead-free HASL: Typically tin-copper or tin-silver-copper alloys (melting points 217-227°C/423-441°F)
Immersion time is carefully controlled (typically 3-5 seconds) to ensure proper solder coverage without excessive copper dissolution.

Step 5: Air Knife Leveling

Immediately after removal from the solder bath, the board passes between high-pressure hot air knives (typically 275-300°C/527-572°F) that:

Remove excess solder from the surface
Level the solder on pads and holes
Ensure uniform thickness
Prevent solder bridging between closely spaced pads

Step 6: Cooling and Inspection

The PCB is cooled gradually to prevent thermal shock, then undergoes rigorous inspection:

Visual examination for uniformity and defects
Thickness measurements
Solderability testing
Electrical testing if required

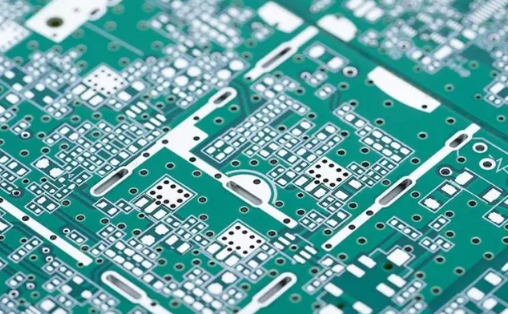

Technical Specifications of HASL PCBs

Solder Thickness

HASL typically produces solder thicknesses ranging from:

Minimum: 1-2 μm (0.04-0.08 mils)
Typical: 2-25 μm (0.08-1.0 mils)
Maximum: Up to 40 μm (1.6 mils) in some cases

The non-uniform nature of HASL means thickness can vary across the board and even across individual pads.

Surface Flatness

HASL provides moderate surface flatness compared to other finishes:

Suitable for components with pitch ≥ 0.65mm
May present challenges for very fine-pitch components (<0.5mm)
Not recommended for chip-scale packages (CSP) or ball grid arrays (BGA) with very small balls

Shelf Life

Properly stored HASL PCBs maintain good solderability for:

Leaded HASL: 12-18 months
Lead-free HASL: 6-12 months
Storage in low-humidity, temperature-controlled environments extends shelf life.

Advantages of HASL PCB Surface Finish

1. Cost-Effectiveness

HASL remains one of the most economical PCB surface finishes:

Lower material costs than many alternatives
Simple process requiring minimal specialized equipment
High throughput suitable for mass production
Reduced processing time compared to some alternatives

2. Excellent Solderability

The tin-rich surface provides:

Immediate wettability for soldering
No additional fluxes required in many cases
Compatibility with most solder alloys
Reliable solder joints in wave and hand soldering

3. Durability and Protection

HASL offers robust protection:

Thick solder layer resists handling damage
Effective barrier against copper oxidation
Withstands multiple thermal cycles during assembly
Good mechanical strength for through-hole components

4. Proven Reliability

Decades of industry use have demonstrated:

Consistent performance in various environments
Well-understood failure modes
Extensive process knowledge throughout the industry
Compatibility with most cleaning processes

5. Repairability

HASL surfaces allow for:

Easy rework and repair of solder joints
Multiple reflow cycles if needed
Simple touch-up procedures

Limitations of HASL PCB Finish

1. Surface Planarity Issues

The HASL process creates:

Uneven surfaces problematic for fine-pitch components
Potential coplanarity issues with BGA packages
Challenges for direct chip attachment methods

2. Thermal Stress

The high-temperature process may:

Cause warpage in thin or large PCBs
Lead to delamination in low-quality materials
Create stress on plated through holes

3. Environmental Concerns (Leaded HASL)

Traditional HASL using lead raises:

RoHS compliance issues
Waste disposal challenges
Workplace safety considerations

4. Process Control Challenges

Maintaining consistency requires careful attention to:

Solder bath composition over time
Temperature control throughout the process
Air knife pressure and temperature
Board orientation during leveling

Lead-Free HASL: Meeting Environmental Regulations

With the adoption of RoHS directives globally, lead-free HASL has become increasingly important. The most common lead-free HASL alloys include:

1. SAC Alloys (Tin-Silver-Copper)

Typical composition: Sn96.5Ag3.0Cu0.5
Melting point: ~217-220°C (423-428°F)
Advantages: Excellent reliability, widely adopted
Disadvantages: Higher cost than tin-lead, slightly higher melting point

2. Tin-Copper Alloys

Typical composition: Sn99.3Cu0.7
Melting point: ~227°C (441°F)
Advantages: Lower cost than SAC, simpler composition
Disadvantages: Higher melting point, less thermal fatigue resistance

3. Other Variants

Various proprietary alloys with additions of:

Nickel for improved durability
Bismuth for lower melting points
Antimony for enhanced mechanical properties

Lead-free HASL requires process adjustments including:

Higher operating temperatures
Modified flux formulations
Potentially longer exposure times
More aggressive air knife settings

Applications of HASL PCBs

1. Consumer Electronics

Televisions and audio equipment
Home appliances
Power supplies
LED lighting systems

2. Industrial Equipment

Control systems
Power distribution
Motor controllers
Industrial automation

3. Automotive Electronics

Non-safety-critical systems
Lighting controls
Power distribution modules
Aftermarket electronics

4. Telecommunications

Base station components
Power amplifiers
Backplane connections
Network infrastructure

5. Aerospace and Defense (Where Permitted)

Avionics systems
Ground support equipment
Military communications gear

Comparing HASL to Alternative PCB Finishes

HASL vs. ENIG (Electroless Nickel Immersion Gold)

ENIG offers better flatness for fine-pitch components
ENIG has longer shelf life
HASL provides thicker, more durable coating
HASL is significantly less expensive

HASL vs. OSP (Organic Solderability Preservative)

OSP provides excellent planarity
OSP is cheaper than HASL
HASL offers better durability during handling
HASL allows for multiple reflow cycles

HASL vs. Immersion Silver

Immersion silver provides better flatness
Silver offers excellent high-frequency performance
HASL has better shelf life than silver
HASL is less sensitive to tarnishing

HASL vs. Electroplated Gold

Gold provides the best contact properties
Gold is superior for wire bonding
HASL is far more economical
Gold requires nickel underlayer adding complexity

Future Outlook for HASL Technology

While newer surface finishes continue to emerge, HASL maintains significant market share due to:

1. Ongoing Process Improvements

Better control systems for more uniform coatings
Advanced flux formulations
Improved lead-free alloy development

2. Cost Pressures in Electronics

Continued need for economical solutions
Large installed base of HASL-capable facilities
Familiarity across the supply chain

3. Specific Application Needs

High-reliability requirements in some sectors
Through-hole component assembly
High-power applications benefiting from thick coatings

However, the trend toward miniaturization and high-density interconnects continues to drive adoption of flatter surface finishes for many advanced applications.

Conclusion

HASL PCB technology remains a vital part of the electronics manufacturing ecosystem, offering an optimal balance of performance, reliability, and cost for countless applications. While alternative finishes have emerged to address specific limitations, particularly for fine-pitch components and advanced packaging, HASL continues to be the right choice for many conventional PCB applications.

Understanding the HASL process, its advantages, and its limitations allows designers and engineers to make informed decisions about when to specify this proven surface finish. As lead-free HASL formulations continue to improve and process controls become more sophisticated, this traditional finishing method will likely maintain its position as a workhorse of PCB manufacturing for years to come.

For many applications—particularly those using through-hole components, requiring robust solder joints, or operating under cost constraints—HASL represents the most practical and reliable surface finish solution available today.
