What is rigid flex pcb construction

Rigid flex PCB construction involves combining rigid and flexible PCBs to create a single circuit board that can bend and flex without breaking. The construction process involves the following steps:

1. Design:

The first step is to design the rigid flex PCB using specialized software.
The design must take into account the specific requirements of the application, including the size, shape, and functionality of the board.

2. Material selection:

The next step is to select the appropriate materials for the rigid and flexible portions of the board.
The rigid sections are typically made of FR-4 or other rigid materials, while the flexible sections are made of polyimide or other flexible materials.

3. Layer stacking:

The layers of the rigid and flexible portions of the board are stacked together in the desired configuration.
The layers are then bonded together using an adhesive.

4. Drilling and plating:

Holes are drilled through the board to allow for the insertion of components.
The holes are then plated with copper to create electrical connections between the layers.

5. Etching:

The excess copper is etched away using a chemical process, leaving only the desired traces and pads.

6. Component placement:

Components are placed on the board using automated pick-and-place machines.

7. Soldering:

The components are soldered to the board using either wave soldering or reflow soldering.

8. Testing:

The finished board is tested to ensure that it meets the required specifications and functionality.

Overall, rigid flex PCB construction is a complex process that requires specialized knowledge and equipment.
However, the resulting boards offer a number of advantages over traditional rigid or flexible PCBs,

including increased reliability, reduced size and weight, and improved performance in harsh environments.

rigid-flex pcbs

Benefits of Rigid-Flex PCB Construction

1. Space-saving design: Rigid-flex PCBs allow for a more compact and space-saving design compared to traditional PCBs.
This is because they combine the benefits of both rigid and flexible PCBs, allowing for more efficient use of space.

2. Improved reliability:

Rigid-flex PCBs are more reliable than traditional PCBs because they eliminate the need for connectors and cables,
which can be a source of failure. This means that there are fewer points of failure, resulting in a more reliable product.

3. Increased durability:

Rigid-flex PCBs are more durable than traditional PCBs because they are less prone to damage from vibration, shock, and other environmental factors.
This is because they are designed to be more flexible and able to withstand more stress than traditional PCBs.

4. Improved signal integrity:

Rigid-flex PCBs can improve signal integrity by reducing the number of vias and connectors required.
This means that there is less signal loss and interference, resulting in a more reliable and high-quality product.

5. Cost-effective:

Rigid-flex PCBs can be more cost-effective than traditional PCBs because they eliminate the need for connectors and cables, reducing the cost of materials and assembly.
Additionally, they can reduce the overall size and weight of the product, resulting in lower shipping and handling costs.

GET IN TOUCH!

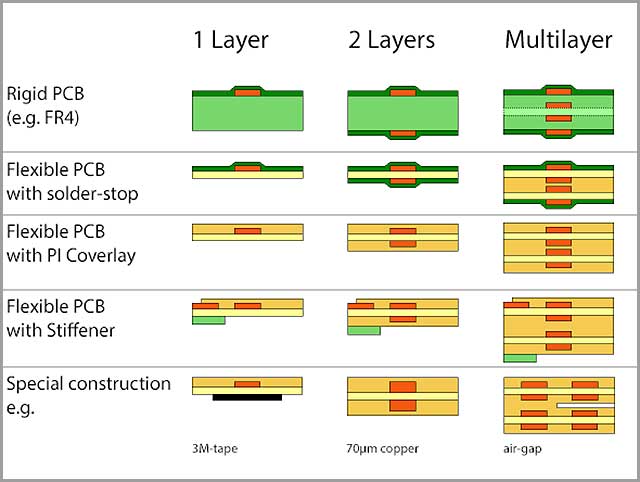

rigid flex pcb layer stackup

A rigid flex PCB layer stackup typically consists of alternating layers of rigid and flexible materials. The stackup can vary depending on the specific design requirements, but a typical 6-layer rigid flex PCB stackup may include:

1. Top layer:

This is the topmost layer of the rigid section of the PCB. It is typically made of copper and serves as the primary conductor layer.

2. Prepreg layer:

This layer is made of a flexible material, such as polyimide, and acts as an adhesive layer between the rigid and flexible sections of the PCB.

3. Flex layer:

This layer is made of a flexible material, such as polyimide, and serves as the flexible section of the PCB.
It can be single-sided or double-sided and may include conductive traces, pads, and vias.

4. Prepreg layer:

This layer is similar to the previous prepreg layer and acts as an adhesive layer between the flexible and rigid sections of the PCB.

5. Bottom layer:

This is the bottommost layer of the rigid section of the PCB.
It is also typically made of copper and serves as the primary conductor layer.

6. Ground plane layer:

This layer is made of copper and serves as a ground plane for the entire PCB.
It is typically located between the top and bottom layers and can help reduce electromagnetic interference (EMI).

Other layers may be added depending on the specific design requirements,
such as additional signal layers, power and ground planes, and solder mask layers.

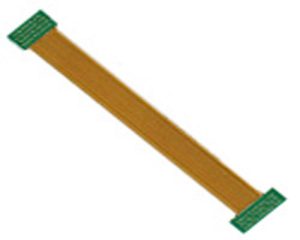

Rigid flexible circuit board

the role of rigid flex pcb layer stackup

The role of rigid flex PCB layer stackup is to provide a stable and reliable foundation for the circuitry and components on the board.
The layer stackup determines the number and arrangement of layers in the PCB, which affects the board’s performance, reliability, and manufacturability.

The layer stackup includes the number and thickness of the rigid and flexible layers, the placement of vias, and the type of materials used.
The stackup must be carefully designed to ensure that the board can withstand the stresses of use and manufacturing processes,
such as bending, twisting, and thermal cycling.

The layer stackup also affects the electrical properties of the board, such as impedance, signal integrity, and electromagnetic interference (EMI) shielding.
The placement and routing of traces and components must be carefully planned to minimize signal loss and interference.

Overall, the layer stackup is a critical aspect of rigid flex PCB design, and must be carefully considered to ensure the board meets the requirements of the application.
