2 oz copper pcb
what is 2 oz copper pcb
A 2 oz copper PCB is a printed circuit board that has 2 ounces of copper per square foot.
To make this board, the 2 ounces of copper are flattened to form a square surface that measures one square foot.
The final thickness of this board type is about 2.8 mils or 70 microns
2 Oz copper PCB assembly
Why need use 2oz pcb?
2 OZ Copper PCB is better than 1 Oz, now more and more PCB design prefer to use 2oz for design, 2 Oz cost is higher than 1oz, but the performance is better than 1oz pcb, current, thermal control is much better. For example, chargers, adapters.

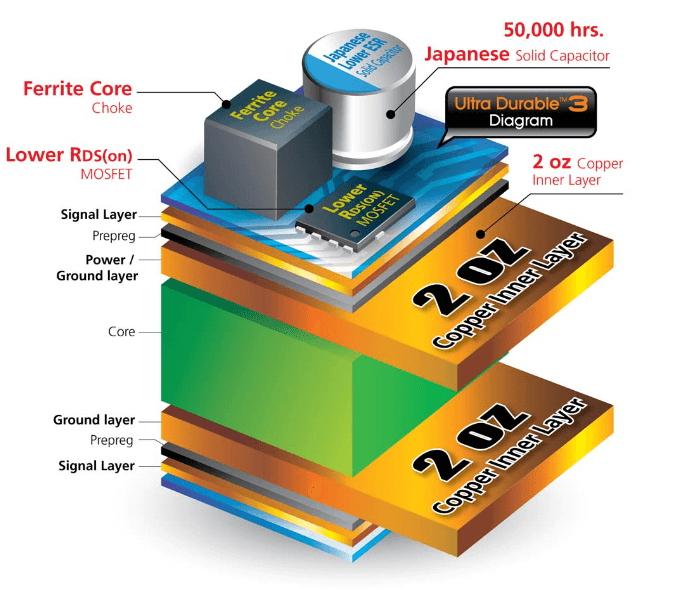

2oz copper (70µm thick or 2.8 mils) – 3oz finished copper is the standard inner layer copper thickness chosen for the inner layer. This is the standard starting copper thickness for the outer layer of the PCB selected for 3 oz. finished copper weight.
Also in the market, flexible PCBs are starting to use 2 oz. PCBs, and the most common copper weights for flexible PCBs are 0.5 oz. and 1 oz. but lighter copper weights are also available
What is the difference Between the 1 Oz Copper PCB and the 2 Oz Copper PCB?
You find the major difference between the two copper board types is the copper weight used and subsequently the thickness.
The 1 oz copper PCB is made from a flattened copper weight of one ounce over a square foot.
Two ounces used for the 2 oz copper board.

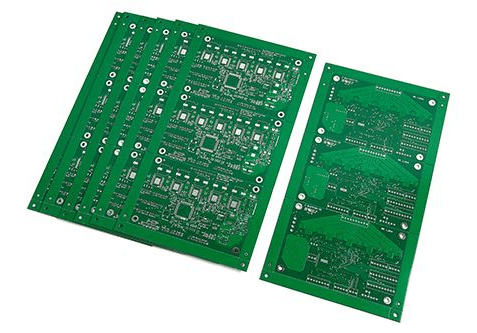

1 Oz copper PCB
Additionally, you find that a 2 oz copper PCB can conduct more current than a 1 oz copper PCB.
Therefore, you find that the 2 oz copper PCB is used in applications with larger current demands.
How much Space is Required between Copper Paths for the 2 Oz Copper PCB?
The minimum required spacing conditions for the 2 oz copper PCB is7 mils or 0.178 mm.
Space requirements are important considering board management.
They allow for the effective placement of components while enabling easy maneuverability when soldering.
Do 2 Oz Copper PCBs use Vias?
Yes, they do.
You find the through-hole vias, the buried vias, and the blind vias as the types of vias available for the 2 oz copper PCB.
While they both are used differently, they derive the following benefits to the 2 oz copper board.
- They ensure efficient board space management
- Vias allow an increased component density on a 2 oz copper board
- You find wire management is effective with the use of vias
- Using vias reduces the size of a 2 oz copper board allowing for use in miniaturized devices
Are Vias Closed in 2 Oz Copper Boards?
Yes, they are.
Vias are closed to prevent solder material from trickling into them.
Smaller vias are less likely to be filed up with solder than large vias.
Since most vias are conductive, allowing a solder presence within them can result in shorts.
You also find that component connection are interfered with.
However, vias are not merely closed up using a cap or filling them.
The care process has to be undertaken in sealing vias.
The caps might be affected by temperature changes and air movement within the vias tunnels.
