1.What is Copper based pcb

Copper-based printed circuit boards (PCBs) are a fundamental component in modern electronics,
Serving as the backbone for a wide array of devices.

These PCBs are distinguished by their use of copper as the primary conductive material,
Which is essential for the transmission of electrical signals.

To understand the significance of copper-based PCBs,
It is crucial to delve into their composition, benefits, and applications.

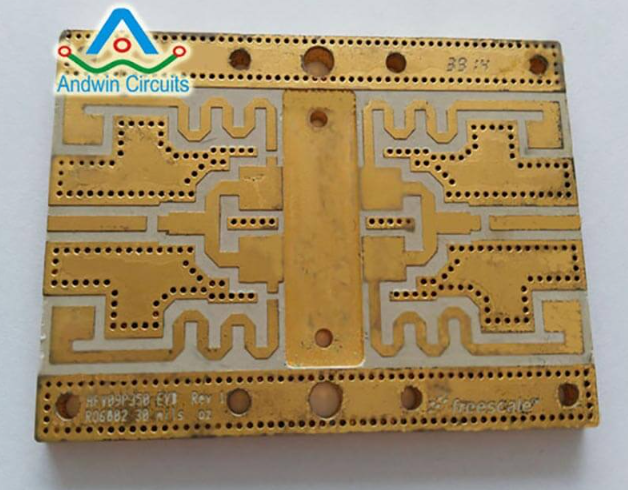

copper based PCB

2.What are the components of copper based pcb?

The composition of copper-based PCBs primarily involves a copper substrate,
Typically made of fiberglass or other insulating materials, layered with copper foil.

The copper foil is etched to create intricate pathways that facilitate the flow of electricity between various components mounted on the board.

This etching process is highly precise, ensuring that the electrical connections are reliable and efficient.

Additionally, the copper layers can be single-sided, double-sided, or multi-layered,
Depending on the complexity and requirements of the electronic device.

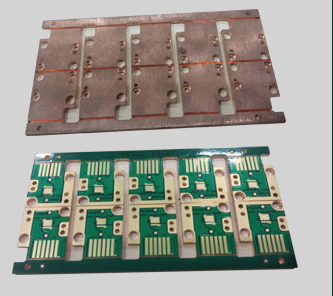

copper based PCB

3.The types of copper based PCB

These PCBs come in various types, each tailored to specific applications and requirements

(1)single-side copper based pcbs

To begin with, single-sided copper-based PCBs are the simplest form of these circuit boards.
They feature a single layer of conductive copper on one side of a non-conductive substrate,
Typically made of materials such as fiberglass or epoxy.

The copper layer is etched to create the desired circuit pattern, while the other side of the copper based substrate remains bare.
Single-sided PCBs are cost-effective and easy to manufacture,
Making them ideal for low-density designs and straightforward applications.
They are commonly used in household electronics, calculators, and simple sensors,
Where the complexity of the circuitry does not necessitate additional layers.

single sided copper based pcb stack up

(2) Double-side copper based pcbs

Transitioning to double-sided copper-based PCBs,
These boards offer a significant advancement in terms of design flexibility and functionality.

Unlike single-sided PCBs, double-sided variants have copper layers on both sides of the substrate.
This configuration allows for more complex circuit designs,

As components can be mounted on both sides,
And connections can be made through vias—small holes that are plated with copper to establish electrical connections between the two layers.

Double-sided PCBs are widely used in applications that require moderate complexity,
Such as power supplies, LED lighting systems, and automotive electronics.
The ability to route traces on both sides of the board enhances the overall performance and reliability of the circuit.

double sided copper based pcb

(3) Multilayer copper based pcbs

Further advancing the complexity and capability of copper-based PCBs,
Multilayer PCBs consist of multiple layers of copper separated by insulating materials.

These layers are laminated together under high pressure and temperature to form a single, cohesive board.
Multilayer PCBs can range from three layers to over fifty, depending on the application’s requirements.

The primary advantage of multilayer PCBs is their ability to support highly complex and dense circuit designs,
Which are essential for advanced electronics such as smartphones, computers, and medical devices.

The additional layers provide more routing options, reduce electromagnetic interference,
And improve signal integrity, making them indispensable in high-performance applications.

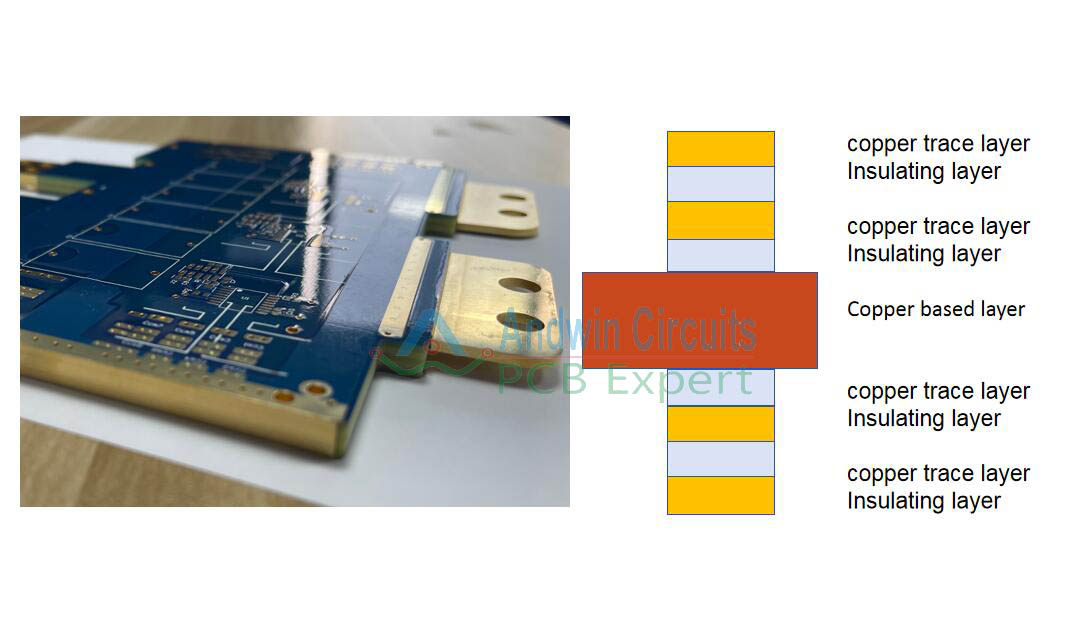

Multilayer copper based pcbs

4.The advantages of copper based PCB

(1) Excellent electrical conductivity.

Copper’s high conductivity ensures efficient transmission of electrical signals,
which is crucial for the performance and reliability of electronic devices.
This characteristic is particularly important in high-frequency applications where signal integrity is paramount.

(2) Remarkable thermal management properties.

Electronic components generate heat during operation,
And effective heat dissipation is essential to maintain optimal performance and prevent damage.

Copper’s high thermal conductivity allows it to efficiently transfer heat away from critical components,
Thereby enhancing the overall thermal performance of the PCB.

This capability is especially beneficial in high-power applications,
Such as power supplies and LED lighting,
where managing heat is a significant concern.

(3) Excellent mechanical strength and durability

The robustness of copper ensures that the PCB can withstand mechanical stresses during manufacturing,
Assembly, and operation. This durability translates to a longer lifespan for electronic devices,
Reducing the need for frequent replacements and contributing to cost savings over time.

Additionally, the mechanical stability of copper-based PCBs makes them suitable for use in harsh environments,
Where they may be exposed to vibrations, shocks, and extreme temperatures.

(4) Environmental friendly

In terms of environmental impact, copper-based PCBs offer certain advantages as well.
Copper is a recyclable material, and the recycling process for copper is well-established and efficient.

This recyclability contributes to the sustainability of electronic manufacturing by reducing the demand for virgin copper and minimizing electronic waste. Additionally, advancements in PCB manufacturing technologies have led to more environmentally friendly processes,
Further mitigating the environmental footprint of copper based PCB.

GET COPPER BASED PCB QUOTE NOW!

5.The disadvantages of copper based PCB

(1) High cost

One of the primary disadvantages of copper-based PCBs is their cost.
Copper is a relatively expensive material, and the price can fluctuate significantly based on market conditions.

This cost factor can be particularly prohibitive for large-scale production runs or for applications where budget constraints are a critical concern.
Additionally, the manufacturing process for copper-based PCBs involves several steps, including etching,
Plating, and laminating, which can further drive up production costs.

These expenses can make copper-based PCBs less attractive for cost-sensitive applications.

Andwin circuits have very competive price in copper based PCB,
Because our skill copper base PCB manufacturing process,
The down the manufacturing cost much.

(2) Easy to oxidize

Another significant drawback is the susceptibility of copper to oxidation.
When exposed to air, copper can form a layer of copper oxide on its surface,

Which can degrade the electrical performance of the PCB.
This oxidation can lead to increased resistance, reduced conductivity, and potential failure of the electronic components.

To mitigate this issue, manufacturers often apply protective coatings,
Such as solder masks or conformal coatings, to shield the copper from environmental exposure.
However, these additional steps add complexity and cost to the manufacturing process.

(3)Heat up quickly

Thermal management is another area where copper-based PCBs can present challenges.
While copper has excellent thermal conductivity,
Which helps in dissipating heat generated by electronic components,

It also means that the entire PCB can heat up quickly.
This rapid heat distribution can lead to thermal stress and potential damage to sensitive components.

Designers must carefully consider thermal management strategies,
such as incorporating heat sinks or thermal vias, to ensure the longevity and reliability of the PCB.
These additional design considerations can complicate the development process and increase production costs.

(4) Polluted environment

Moreover, the environmental impact of copper mining and processing is a growing concern.
The extraction and refining of copper involve significant energy consumption and can result in the release of harmful pollutants into the environment.

These environmental considerations are becoming increasingly important as industries strive to adopt more sustainable practices.
The use of copper-based PCBs may conflict with these sustainability goals,
Prompting designers to explore alternative materials that have a lower environmental footprint.

In addition to environmental concerns, the disposal of copper-based PCBs poses challenges.
Electronic waste, or e-waste, is a rapidly growing problem worldwide, and copper-based PCBs contribute to this issue.

The recycling process for copper-based PCBs is complex and requires specialized facilities to recover the valuable copper while safely disposing of hazardous materials.
This complexity can limit the effectiveness of recycling programs and contribute to the accumulation of electronic waste in landfills.

copper based PCB

6.The application of copper based pcb

The applications of copper-based PCBs are vast and varied,
Reflecting their versatility and indispensability in the electronics industry.

In consumer electronics, these PCBs are found in smartphones, tablets, and laptops,
Where their compact size and efficient performance are essential.

In the automotive industry, copper-based PCBs are used in advanced driver-assistance systems (ADAS),
Infotainment systems, and engine control units, contributing to the safety and functionality of modern vehicles.

Furthermore, in the telecommunications sector,
These PCBs are integral to the infrastructure of network equipment,
Ensuring robust and reliable communication channels.

In addition to these common applications, copper-based PCBs are also pivotal in the medical field.
Medical devices such as diagnostic equipment, patient monitoring systems,
And implantable devices rely on the precision and reliability of copper-based PCBs to function accurately.

The aerospace and defense industries also benefit from the robustness and performance of  copper based PCBs,
Where they are used in navigation systems, communication devices, and control systems.

In conclusion, copper-based PCBs are a cornerstone of modern electronics,
Offering unparalleled electrical and thermal conductivity, durability, and reliability.

Their composition, involving a substrate layered with copper foil,
Allows for the creation of intricate and efficient electrical pathways.
The benefits of using copper, including excellent conductivity and thermal management,
Make these PCBs suitable for a wide range of applications.

From consumer electronics to automotive systems,
telecommunications, medical devices, and aerospace technology,
Copper-based PCBs play a critical role in advancing technological innovation
And ensuring the functionality of countless electronic devices.
