Incorporating Graphics into PCB Design: Techniques and Best Practices

ByGrace

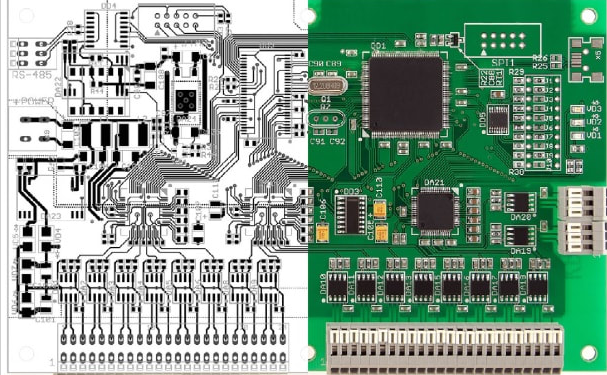

Introduction

Printed Circuit Board (PCB) design has evolved significantly from its purely functional origins. Today, PCB designers increasingly incorporate graphical elements into their boards for both aesthetic and functional purposes. This 2000-word article explores the various methods, considerations, and best practices for adding graphics to PCBs, covering silkscreen artwork, copper pour graphics, solder mask designs, and advanced techniques like embedded components and 3D printing.

1. The Role of Graphics in Modern PCB Design

Graphics in PCBs serve multiple purposes beyond simple decoration:

Branding and Identification: Company logos, product names, and version information help with product identification and brand reinforcement.

Functional Markings: Component outlines, polarity indicators, and test point labels improve assembly accuracy and serviceability.

User Interface Elements: Buttons, touch areas, and status indicators enhance user interaction.

Aesthetic Enhancement: Custom designs can transform PCBs from utilitarian objects into visually appealing components, particularly important for visible boards in consumer electronics.

Anti-Counterfeiting Measures: Complex graphics can serve as security features to identify genuine products.

2. Silkscreen Graphics: The Traditional Approach

Silkscreen printing remains the most common method for adding graphics to PCBs:

Technical Specifications

  • Typically white epoxy ink (though other colors are available)
  • Minimum line width: 0.006″ (0.15mm) for good yield
  • Standard resolution: 300-600 DPI
  • Applied during the final stages of PCB fabrication

Design Considerations

  1. Clearance Requirements: Maintain at least 0.005″ (0.127mm) clearance from solder pads
  2. Legibility: Use simple, high-contrast designs
  3. Durability: Avoid extremely thin lines that may chip or fade
  4. Color Contrast: Consider the background solder mask color

Advanced Silkscreen Techniques

  • Multi-layer Silkscreen: Some manufacturers offer multiple silkscreen colors
  • Textured Effects: Varying ink thickness can create tactile effects
  • Fine Detail Printing: High-end processes can achieve photographic-quality images
Contact us for PCB quote now |

3. Solder Mask Graphics: Creating Visual Impact

Solder mask layers offer creative possibilities for PCB graphics:

Techniques

  1. Solder Mask as Negative Space: Expose copper beneath removed mask areas
  2. Custom Solder Mask Colors: Beyond standard green, options include blue, red, black, white, and transparent
  3. Patterned Masks: Textures and geometric patterns
  4. Multi-color Masks: Some manufacturers offer limited color combinations

Design Guidelines

  • Minimum feature size: 0.003″ (0.076mm)
  • Maintain proper mask dams between pads (typically 0.004″ or 0.1mm)
  • Consider thermal relief for large copper areas
  • Account for mask shrinkage during curing (typically 1-3%)

4. Copper Layer Graphics: Functional Art

The copper layers themselves can form graphical elements:

Methods

  1. Etched Copper Artwork: Creating images through the PCB etching process
  2. Plated Graphics: Selective plating of gold, silver, or other finishes
  3. Surface Finishes: Different treatments (ENIG, HASL, OSP) create visual contrast

Technical Considerations

  • Copper weight affects graphic appearance (typically 0.5-2 oz)
  • Fine details may require tighter etching tolerances
  • Consider current carrying capacity in functional areas
  • Account for copper roughness (Ra) in high-frequency applications

5. Advanced Graphic Incorporation Techniques

Embedded Components

  • Ceramic substrates with printed decorative layers
  • In-mold electronics with graphical overlays
  • Flexible PCB graphics integrated into product surfaces

3D Printed Electronics

  • Direct printing of conductive and insulating inks
  • Multi-material printing combining functional and decorative elements
  • Surface texture and relief effects

Hybrid Approaches

  • Combining silkscreen, solder mask, and copper layers
  • Sequential build-up of graphical layers
  • Laser-engraved markings and artwork

6. Design Software Considerations

Modern PCB design tools support graphic import and manipulation:

File Formats

  • Vector formats (DXF, SVG, EPS) for clean scaling
  • High-resolution bitmaps (PNG, TIFF) with proper DPI settings
  • Native CAD formats for precise integration

Software Features to Look For

  • Layer-specific graphic placement
  • DRC (Design Rule Check) for graphic elements
  • Transparency and blending options
  • 3D visualization of final appearance

Workflow Tips

  1. Create graphics at actual size
  2. Use PCB-specific color palettes
  3. Verify manufacturability with your fabricator
  4. Maintain separate files for different graphic layers

7. Manufacturing Considerations

Fabricator Capabilities

  • Minimum feature sizes for different graphic types
  • Color options and limitations
  • Registration tolerance between layers
  • Special processes (like sequential masking)

Cost Factors

  • Additional silkscreen colors typically increase cost
  • Custom solder mask colors may have minimum order quantities
  • Complex graphics may require additional setup time
  • Panel utilization affects per-unit cost

Quality Control

  • Visual inspection standards for graphics
  • Color matching processes
  • Durability testing (adhesion, thermal cycling)
  • Consistency across production runs

8. Technical Challenges and Solutions

Registration Accuracy

  • Challenge: Aligning graphics across multiple layers
  • Solution: Use common reference points and generous tolerances

Fine Detail Reproduction

  • Challenge: Maintaining intricate details in production
  • Solution: Consult with manufacturers early about capabilities

Durability Concerns

  • Challenge: Graphics wearing off during use
  • Solution: Protective coatings or laser-marked graphics

Signal Integrity

  • Challenge: Graphics affecting high-speed signals
  • Solution: Maintain proper clearances from critical traces
Contact us for PCB quote now |

9. Future Trends in PCB Graphics

Emerging Technologies

  • Full-color printing processes
  • Dynamic graphics with integrated displays
  • Photochromic and thermochromic inks
  • Nanostructured surfaces for optical effects

Sustainable Approaches

  • Water-based inks and coatings
  • Recyclable graphic materials
  • Reduced chemical processes

Smart Graphics

  • Conductive inks creating functional elements
  • Touch-sensitive graphic interfaces
  • Embedded information (QR codes, AR markers)

Conclusion

Incorporating graphics into PCB design has moved from an afterthought to a key consideration in product development. By understanding the available techniques—from traditional silkscreening to advanced copper artwork and innovative 3D printing—designers can create boards that are both functionally excellent and visually distinctive. As manufacturing capabilities continue to advance, the possibilities for PCB graphics will only expand, offering new opportunities for branding, user interface design, and product differentiation.

Successful implementation requires close collaboration between designers and manufacturers, careful attention to design rules, and consideration of the entire product lifecycle. When executed well, PCB graphics can elevate a product from merely functional to truly remarkable, while often adding little or no cost to the manufacturing process.
