Is thermal pad good

A thermal pad in PCB (Printed Circuit Board) is a copper pad or plane that is connected to the ground plane of the PCB.
It is usually located underneath a component that generates heat, such as a power amplifier or voltage regulator.

The thermal pad is designed to provide a low thermal resistance path for heat to flow from the component to the PCB, which acts as a heatsink.

In addition to providing thermal management, a thermal pad can also help to improve the electrical performance of the component.
By connecting the thermal pad to the ground plane,

it can help to reduce electromagnetic interference (EMI) and improve the overall signal integrity of the PCB.

Thermal pads are commonly used in high-power applications,
such as power amplifiers, voltage regulators, and microprocessors,
where efficient heat dissipation is critical for reliable operation.

GET IN TOUCH!

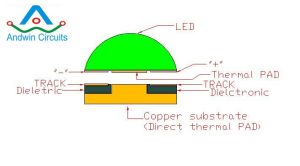

2layers direct thermal path copperpcb with isolated holes

Yes, thermal pads are good for providing efficient heat dissipation in electronic components.
They are designed to provide a low thermal resistance path for heat to flow from the component to the PCB,
which acts as a heatsink. This helps to prevent the component from overheating and potentially failing.

Thermal pads are commonly used in high-power applications, such as power amplifiers, voltage regulators, and microprocessors,
where efficient heat dissipation is critical for reliable operation.
They are also easy to install and require no additional thermal interface material,

making them a cost-effective solution for thermal management in electronic devices.

Overall, thermal pads are a good option for thermal management in electronic components,

as they provide efficient heat dissipation, are easy to install, and are cost-effective.
