metal core pcb board

Printed Circuit Boards (PCBs) are an essential component in the manufacturing of electronic
devices. They provide a platform for the placement and interconnection of electronic
components, enabling the creation of complex circuits. PCBs come in various types,
including single-sided, double-sided, and multilayered PCBs. However, with the increasing
demand for high-power and high-temperature applications, metal core PCB boards have become
popular.

Metal core PCB boards, also known as MCPCBs, are PCBs with a metal core layer. The metal
core layer acts as a heat sink, dissipating heat generated by the electronic components.
MCPCBs are commonly used in high-power LED lighting, automotive, and power supply
applications.

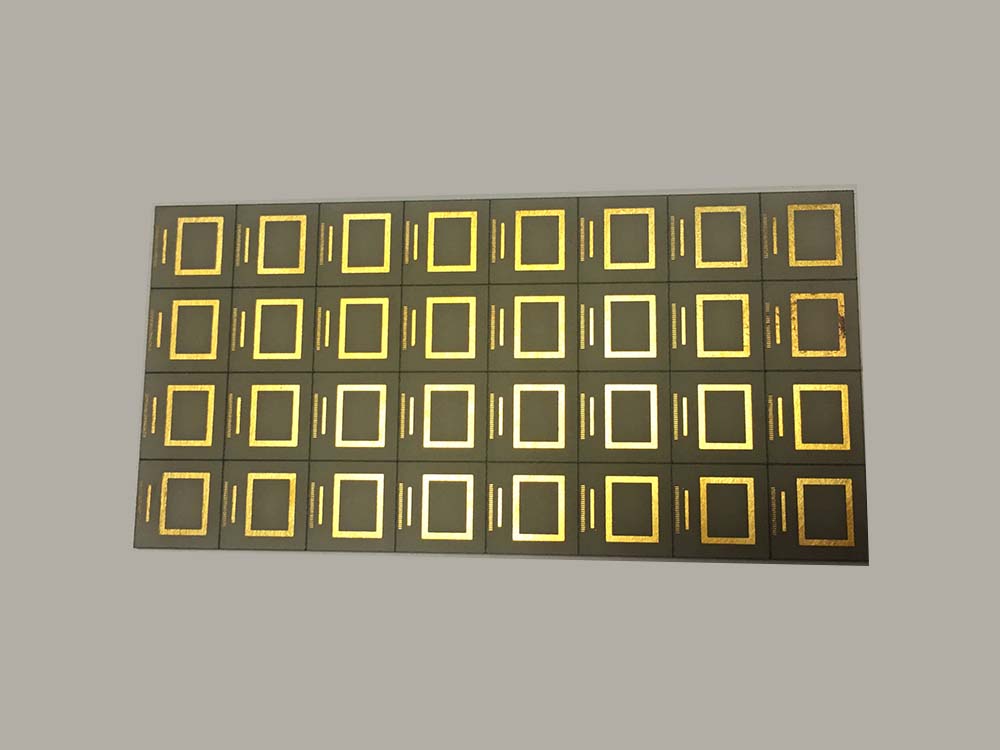

Nitride Aluminum ceramic pcb

Construction of Metal Core PCB Boards

The construction of metal core PCB boards is similar to that of standard PCBs, with the
addition of a metal core layer. The metal core layer is typically made of aluminum, copper,
or a combination of both. The metal core layer is sandwiched between the copper layers,
which contain the circuitry. The copper layers are etched to create the desired circuit
pattern.

The metal core layer provides several benefits over standard PCBs. Firstly, it acts as a
heat sink, dissipating heat generated by the electronic components. This is particularly
useful in high-power applications, where excessive heat can damage the components.
Secondly, the metal core layer provides mechanical stability to the PCB, preventing warping
and bending. Lastly, the metal core layer provides electromagnetic shielding, reducing
interference from external sources.

GET IN TOUCH!

aluminum metal core pcb

Advantages of Metal Core PCB Boards

1. Thermal Management

One of the primary advantages of metal core PCB boards is their excellent thermal
management. The metal core layer acts as a heat sink, dissipating heat generated by the
electronic components. This is particularly useful in high-power applications, where
excessive heat can damage the components. MCPCBs can handle high temperatures, making them
suitable for use in harsh environments.

2. Mechanical Stability

The metal core layer provides mechanical stability to the PCB, preventing warping and
bending. This is particularly useful in applications where the PCB is subjected to
mechanical stress, such as automotive and aerospace applications.

3. Electromagnetic Shielding

The metal core layer provides electromagnetic shielding, reducing interference from
external sources. This is particularly useful in applications where electromagnetic
interference can cause malfunctions, such as medical and military applications.

4. High Power Applications

MCPCBs are ideal for high-power applications, such as LED lighting and power supplies. The
metal core layer can handle high currents and voltages, making them suitable for use in
high-power applications.

Double sided metal core pcb

Disadvantages of Metal Core PCB Boards

1. Cost

One of the primary disadvantages of metal core PCB boards is their cost. MCPCBs are more
expensive than standard PCBs due to the additional metal core layer. This can be a
significant factor in low-cost applications.

2. Complexity

The construction of MCPCBs is more complex than standard PCBs. This can make them more
difficult to manufacture and repair.

3. Limited Availability

MCPCBs are not as widely available as standard PCBs. This can make it more difficult to
find a supplier and increase lead times.

Conclusion

Metal core PCB boards are an excellent choice for high-power and high-temperature
applications. They provide excellent thermal management, mechanical stability, and
electromagnetic shielding. However, they are more expensive than standard PCBs and can be
more difficult to manufacture and repair. MCPCBs are ideal for applications such as LED
lighting, automotive, and power supplies.
