Source High Precision Thick Film Ceramic Hybrid PCB

We are pleased to introduce our latest product, the Ceramic Hybrid PCB. This innovative

technology combines the best of both worlds, offering the durability and thermal conductivity

of ceramic with the flexibility and cost-effectiveness of traditional PCBs.

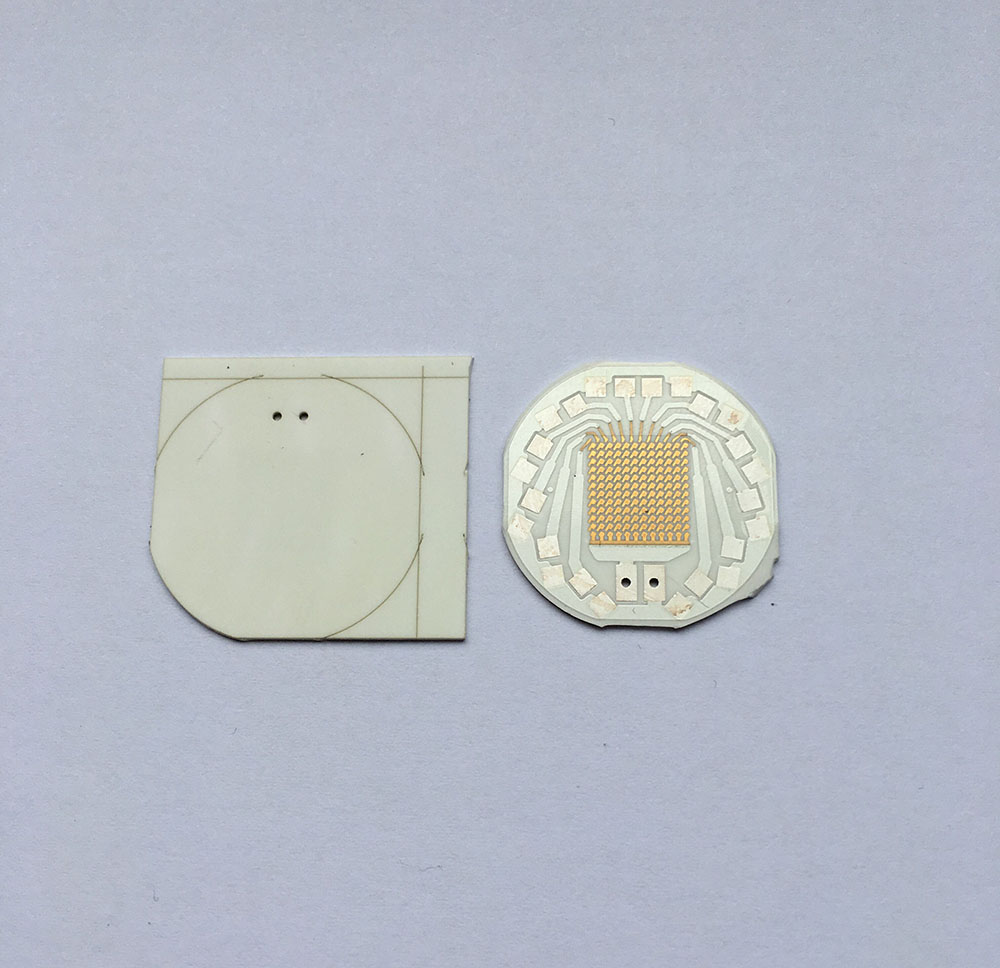

At its core, the Ceramic Hybrid PCB is a printed circuit board that uses a ceramic substrate

instead of the traditional fiberglass or plastic. This substrate is made of a high-temperature,

high-strength ceramic material that is capable of withstanding extreme temperatures and

harsh environments. This makes it ideal for use in applications where traditional PCBs would

fail, such as in aerospace, automotive, and military applications.

The ceramic substrate is then coated with a layer of conductive material, such as

copper, to create the circuitry. This layer is then covered with a layer of protective

material, such as solder mask, to protect the circuitry from damage and to provide


One of the key advantages of the Ceramic Hybrid PCB is its thermal conductivity.

The ceramic substrate has a much higher thermal conductivity than traditional PCB

materials, which means that it can dissipate heat more effectively. This makes it ideal

for use in high-power applications, such as power electronics and LED lighting.


Another advantage of the Ceramic Hybrid PCB is its durability. The ceramic

substrate is much stronger and more resistant to physical damage than traditional

PCB materials. This makes it ideal for use in applications where the PCB may be

subjected to rough handling or vibration.

In addition to its durability and thermal conductivity, the Ceramic Hybrid PCB also

offers a number of other benefits. For example, it can be manufactured using the

same processes and equipment as traditional PCBs, which means that it can be

produced at a lower cost than other ceramic-based technologies. It is also compatible

with a wide range of components and can be used in a variety of applications.

Overall, the Ceramic Hybrid PCB represents a significant advancement in PCB

technology. Its combination of durability, thermal conductivity, and cost-effectiveness

make it an ideal choice for a wide range of applications. If you have any questions or

would like more information about this exciting new technology, please do not hesitate

to contact us.

Thank you for your interest in our products and services.
