What is Quick Turn PCB Assembly?

Here comes the main part of PCB analysis. PCB Assembly is the process that entails extra attention to minute details. It is used to design and bare board fabrication where each of the electronic components requires to be placed with appropriate orientation forming an operational PCB.  It is based on the faster manufacturing and quick turn components to procure support to guarantee the PCB assembly production.

The quick turn PCB assembly assures the shortest lead time. You can even choose the lead times according to your preferences. For prototype PCBs, you can have 24/48 hours or 5/10 days. Whereas for the low volume of production orders, the lead time can be chosen 10, 15, or 20 days and for mid-volume, it can be 15, 20, or 25 days as well.

How to Process Quick Turn PCB Assembly?

The quick turn PCB assembly can be done in two different ways. This includes SMT which is placed and soldered on the substrate of the outer surface of the circuit board. The other method is thru-hole technology which lets the leads of electronic components to be inserted by the holes with the substrate of the PCB.

As soon as the assembly is done, the inspection process starts for PCB. It is done thoroughly to ensure that PCB is functioning without any errors. Rework is discouraged in this matter because this can create immense loss and waste of time. Therefore, the manufacturers prefer prototypes for the original PCB and make sure it functions effectively. By this way, they try to prevent any possible challenge which may occur later on during its usage.

Another method is used to verify the errors in PCB. It is called DFM analysis and it is much more effective to know about all the circuits are functioning perfectly. This also gives proper assurance about the design of the PCB if it has any effect on its future functioning.

What Benefits Are Offered by Quick Turn PCB Assembly?

The global market of PCB is growing gradually. It is expected that by 2022 the market for quick turn PCB will earn $72.6 billion. This has a clear meaning that most of the industries are now relying upon PCBs for greater operation. The PCB manufacturers are offering quick turn-around times for prototypes PCBs. This is not just it, quick turn PCB assembly also has a lot to offer which can be added as benefits in your regular business criteria.

1.Reduction of Cost and Time:
The prototype assembly of PCB processes the best practices as a complete turnkey production services.
This has a good influence on the market for reducing cost and time at the same time giving speed to the regular working process.
From the initial design and layout has been reviewed for selection and acquisition of the best parts.

2. Superior Experience:
Quick turn PCB assembly delivers quality, accuracy, and cost-savings. Their design is feasible with proper assessments which ensure superior experience avoiding any costly rework and market delays. The manufacturers focus on reducing production time as much as possible.

3.Usage of Correct Materials:

Almost all the manufacturers of quick turn PCB assembly makes sure of selecting and using correct materials because they are discouraged in rework with it. Therefore, they follow a proven set of PCB fabrication rule that helps them to minimize the manufacturing issues and headaches which may lead them to redesign.

4.Most Effective Option:

It is important to choose the most cost-effective options for developing a product. From this perspective quick turn, PCB assembly service can handle the entire process.

This will simplify the complex logistics and process of product development through the production process.  It will also be a profitable decision as it reduces the chances of rework.

5. 24 Hours Service:

The quick turn PCB assembly can work and process orders 24 hours with the faster response so that it can enhance your delivery process. This also lets its users rely on its faster and efficient turnkey assembly service to manage all the aspects.

Applications Of Quick Turn PCB Assembly

  • IOT Intelligent products

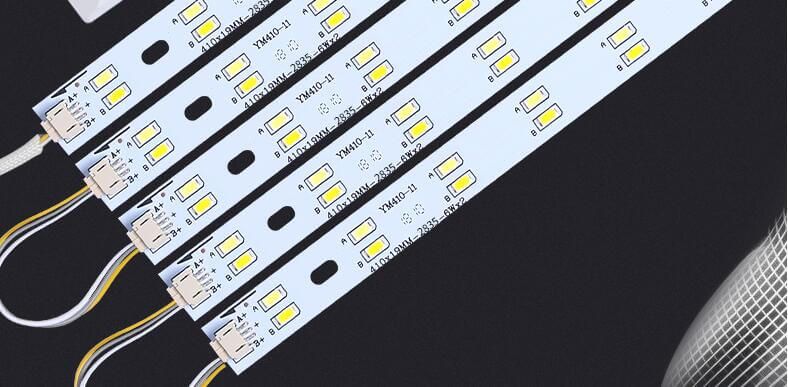

  • LED Industry

  • Household electrical appliances

  • Medical apparatus and instruments

  • Space flight and aviation

Get in touch now!

About Andwin Circuits

Andwin Circuits as a industry leading of PCB Assembly manufacturer since 2003.

We have 17 Years Experienced, 300,000 Class Clean Room, 4 JUKI production Lines, AOI machines and X-Ray machine.
