Thermal performance of aluminum core PCB and its advantages in high power LED applications.

1.what is Aluminum core pcb ?

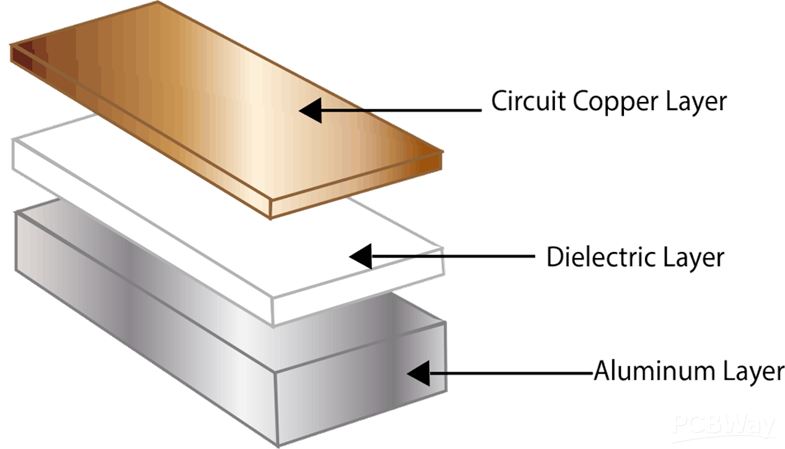

Aluminum core PCB, that is, aluminum-based printed circuit board, is a circuit board with aluminum as the base material.

It has attracted much attention in the electronics industry because of its unique advantages and wide range of applications.

First of all, the biggest advantage of aluminum core PCB is its excellent heat dissipation performance. Compared with traditional FR4 materials, aluminum-based materials have higher thermal conductivity and can quickly conduct heat from electronic components to the radiator or housing, thereby effectively reducing the operating temperature of the components.

This feature is particularly important in high-power electronic equipment, because excessive temperatures can cause component performance to degrade or even be damaged.

2.the advantages of aluminum core pcb

aluminum core PCB also has high mechanical strength and durability.

 Aluminum-based materials are not only strong, but also have good resistance to shock and vibration, which allows aluminum-core PCBs to maintain stable performance in harsh environments.

Related to this is the lighter weight of aluminum-core PCBs, which has significant advantages for application scenarios that need to reduce the weight of equipment, such as aerospace and automotive electronics.

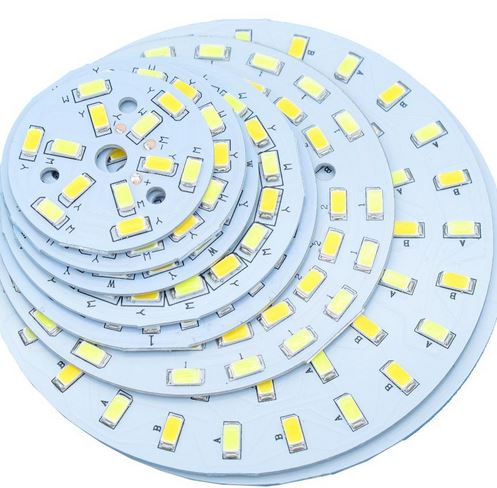

3.Aluminum core PCBs are widely used in LED lighting

In practical applications, aluminum core PCBs are widely used in LED lighting, power converters, automotive electronics and communication equipment and other fields.

Specifically, in LED lighting, aluminum core PCB can effectively solve the heat dissipation problem of LED lamps, extend their service life and improve light efficiency. In power converters, the high thermal conductivity and high reliability of aluminum-core PCBs make them an ideal choice to ensure stable operation of equipment under high-power conditions.

The automotive electronics field also benefits from the excellent performance of aluminum-core PCBs, especially in electric vehicles and hybrid vehicles. Aluminum-core PCBs can effectively manage the heat of batteries and motors, improving the performance and safety of the entire vehicle.

Although aluminum core PCB has many advantages, its manufacturing cost is relatively high, which to a certain extent limits its popularity in low-cost applications.However, with the advancement of technology and improvement of production processes, the cost of aluminum core PCB is expected to gradually decrease, allowing it to be used in more fields.

To sum up, aluminum core PCB has become an indispensable and important part of the electronics industry due to its excellent heat dissipation performance, high mechanical strength and wide application prospects.

Although it faces certain cost challenges, its advantages in high-performance and high-reliability applications are irreplaceable. With the continuous development of technology, the application scope of aluminum core PCB will be further expanded, providing a solid foundation for the performance improvement and reliability guarantee of electronic equipment.

Its excellent heat dissipation performance shows significant advantages in high-power LED applications. Firstly, the structural design of aluminum core PCB makes it excellent in thermal management. As a base material, aluminum has excellent thermal conductivity and can quickly conduct heat from the heating element to the radiator or external environment. This feature is particularly important in high-power LED applications, because LEDs generate a large amount of heat during operation. If the heat is not dissipated in time, the life of the LED may be shortened or its performance degraded.

In addition, the thermal expansion coefficient of the aluminum-core PCB is low and matches that of the LED chip, thereby reducing mechanical stress caused by inconsistent thermal expansion. This matching not only improves the reliability of the LED, but also reduces the risk of solder joint fatigue and breakage. Therefore, aluminum core PCB can provide more stable performance and longer service life in high-power LED applications.

At the same time, the mechanical strength and durability of aluminum-core PCBs also add to their advantages in high-power LED applications. The solidity of aluminum material makes the PCB not easily deformed or damaged during installation and use, ensuring the integrity and stability of the circuit. This is particularly critical for high-power LED equipment that requires stable operation for a long time. Especially in outdoor lighting, automotive lighting and other application scenarios, the durability of aluminum core PCB is particularly important.

Looking further, the manufacturing process of aluminum core PCB is relatively mature and cost-effective. Although the initial investment may be slightly higher than that of a traditional PCB, its advantages in thermal performance, reliability and service life make the overall cost-effectiveness more significant. For high-power LED applications, choosing aluminum core PCB can not only improve product performance, but also reduce maintenance and replacement costs, thereby achieving higher economic benefits.


To sum up, aluminum-core PCB shows unparalleled advantages in high-power LED applications due to its excellent heat dissipation performance, thermal expansion coefficient matching, mechanical strength and cost-effectiveness. These characteristics make aluminum core PCB an ideal choice for high-power LED equipment, which can effectively improve the performance and reliability of the equipment, extend its service life, and reduce the overall cost. With the continuous development of high-power LED technology, the application prospects of aluminum core PCB will be broader, further promoting the progress and innovation of the LED lighting industry.
