Medical Rigid-Flex PCB: Design & Reliability for Life-Critical Use

Medical Device Rigid-Flex PCB technology has revolutionized modern healthcare electronics by enabling compact, reliable interconnections that withstand the rigorous demands of diagnostic, therapeutic, and implantable devices. As medical equipment evolves toward miniaturization and enhanced functionality, understanding the intricate balance between mechanical flexibility and electrical reliability becomes paramount for design engineers and procurement specialists. This comprehensive guide analyzes the essential design protocols, certification requirements, and manufacturing standards that define high-reliability rigid-flex PCB implementations in the medical sector.

Whether you’re developing surgical robotics requiring dynamic flex cycles or portable monitoring systems demanding space optimization, this article provides actionable insights into IPC Class 3 compliance, ISO 13485 quality systems, and the critical transition zone engineering that prevents field failures.

Quick Answer

Medical Device Rigid-Flex PCB designs must comply with IPC-2223 design standards, IPC-6013 Class 3 performance requirements, and ISO 13485 quality management systems, utilizing polyimide substrates with minimum 10:1 bend radius ratios for static applications and 100:1 for dynamic flexing.

Table of Contents

1. The Critical Challenge: Why Medical PCB Failures Occur
2. Engineering Solutions: Rigid-Flex Advantages vs. Traditional Approaches
3. Step-by-Step Design Protocol for Medical Rigid-Flex PCBs
4. Real-World Applications: Three Medical Implementation Cases
5. Frequently Asked Questions About Medical Rigid-Flex Standards
6. Conclusion: Ensuring Patient Safety Through Design Excellence

The Critical Challenge: Why Medical PCB Failures Occur

Medical electronics operate in environments where failure isn’t merely an inconvenience—it can compromise patient safety. Analysis reveals that 23% of medical device recalls between 2018-2023 involved electronic component failures, with interconnect issues representing a significant subset of these malfunctions. Traditional rigid PCB assemblies often fail to meet the mechanical demands of modern healthcare equipment, particularly in applications requiring repeated flexing, compact form factors, or sterilization resistance.

Primary Pain Points in Medical Electronics Design

• Mechanical Stress Concentration: Rigid-to-cable transitions create stress points that fracture after 500-1,000 flex cycles in standard designs
• Biocompatibility Concerns: Non-medical-grade materials may trigger adverse patient reactions in implantable or wearable applications
• Thermal Management Conflicts: Miniaturization reduces heat dissipation capacity while high-performance medical ICs generate increased thermal loads
• Traceability Gaps: 34% of medical OEMs report difficulties maintaining full material traceability required by FDA 21 CFR Part 820
• Sterilization Compatibility: Standard PCB materials degrade after repeated autoclave cycles (121°C steam) or gamma radiation exposure

> “In medical device engineering, the transition zone between rigid and flex sections represents the highest-risk area for latent defects. Our testing data indicates that 67% of rigid-flex field failures originate from improper layer staggering or inadequate strain relief in these critical junctions.”
> — IPC-2223 Technical Committee Findings [^1^]

Figure 1: Cross-sectional analysis of medical-grade rigid-flex PCB construction showing polyimide flex layers and FR-4 rigid sections. Alt text: Medical Device Rigid-Flex PCB cross-section diagram illustrating IPC-2223 compliant layer transitions and copper trace routing.

Engineering Solutions: Rigid-Flex Advantages vs. Traditional Approaches

Implementing <a href=”https://www.andwinpcb.com/rigid-flex-pcb/”>Rigid-Flex PCBs</a> in medical devices addresses the fundamental limitations of wire harnesses and connector-based systems. Unlike traditional approaches that require multiple separate components and mechanical connectors, rigid-flex integration creates a monolithic structure with inherent reliability advantages.

Comparative Analysis: Interconnect Technologies for Medical Devices

The data demonstrates that medical-grade rigid-flex constructions outperform traditional methods in reliability metrics critical for life-support applications. Specifically, Class 3 rigid-flex boards utilize rolled-annealed (RA) copper in flex regions, achieving 20-30% improved flex fatigue resistance compared to electrodeposited copper alternatives [^8^].

Material Science Considerations for Medical Compliance

Medical Device Rigid-Flex PCB implementations require careful material selection beyond standard commercial specifications:

• Base Dielectrics: Polyimide films (per IPC-4202) with thickness tolerances of ±10% for consistent impedance control
• Adhesive Systems: Acrylic or epoxy adhesives meeting USP Class VI biocompatibility standards for implantable applications
• Conductive Materials: RA copper for dynamic flex zones; high-elongation electrodeposited copper for static applications
• Surface Finishes: ENIG (Electroless Nickel Immersion Gold) preferred for solderability and aluminum wire bonding compatibility
• Coverlay Materials: Polyimide coverlay versus solder mask in flex areas to prevent cracking during bending [^11^]

> “Testing reveals that devices utilizing integrated rigid-flex architectures experience 40% fewer interconnect-related failures compared to discrete wire-to-board solutions over 10-year operational lifespans. This reliability improvement directly correlates with reduced patient risk and lower total cost of ownership for healthcare facilities.”
> — Medical Device Failure Mode Analysis, 2024 [^10^]

Step-by-Step Design Protocol for Medical Rigid-Flex PCBs

Designing medical-grade rigid-flex PCBs requires systematic adherence to IPC-2223 sectional standards while incorporating risk management principles from ISO 14971. The following protocol ensures compliance with both electrical performance and mechanical reliability requirements.

Phase 1: Application Classification and Requirements Definition

1. Determine Flex Application Type

• Static flex (installation only): Bend radius ≥ 10× total thickness [^12^]
• Dynamic flex (operational movement): Bend radius ≥ 100× total thickness
• Calculate minimum bend radius: For a 0.25mm (0.010″) 4-layer flex, dynamic applications require 25mm (1.0″) minimum radius

2. Establish IPC Performance Class

• Class 2: Dedicated service electronics (diagnostic equipment, business-critical devices)
• Class 3: High-reliability/life-critical (implantables, surgical robots, life support) [^8^]

3. Define Environmental Constraints

• Operating temperature range (typically -40°C to +85°C for external devices, 37°C body temperature for implants)
• Sterilization method compatibility (autoclave, gamma radiation, EtO gas)
• Chemical exposure (cleaning agents, bodily fluids)

Phase 2: Layer Stackup and Material Specification

4. Configure Rigid-Flex Architecture

• Select Type 4 construction (multilayer rigid-flex) for complex medical applications [^4^]
• Implement “bookbinder” construction for multilayer flex sections requiring tight bend radii
• Maintain symmetrical copper distribution to prevent warpage (±5% copper balance recommended)

5. Design Transition Zones

• Stagger layer transitions over minimum 1.5mm distance to prevent stress concentration
• Implement teardrop-shaped pads and via annular rings >0.2mm (8 mils) for structural integrity [^12^]
• Eliminate plated through-holes (PTH) within bend radius zones

Phase 3: Routing and Layout Optimization

6. Conductor Geometry Rules

• Route traces perpendicular to bend axis (never parallel)
• Utilize “I-beam” trace geometry or hatched ground planes in flex regions to enhance flexibility
• Maintain trace width ≥0.125mm (5 mils) for Class 3 reliability with 1 oz copper

7. Via and Component Placement

• Position vias minimum 3.0mm from flex-to-rigid transition lines
• Implement via-in-pad (VIPPO) technology only in rigid sections with planarization requirements
• Place heavy components (>10g) exclusively on rigid sections with stiffener reinforcement

Figure 2: Design workflow for medical rigid-flex PCB development emphasizing IPC-2223 and ISO 13485 compliance checkpoints. Alt text: Medical Device Rigid-Flex PCB design process flowchart with validation gates for biocompatibility and reliability testing.

Phase 4: Manufacturing Validation and Testing

8. Four-Terminal Sensing Implementation

• Apply Kelvin sensing methodology for all critical net resistance measurements [^9^]
• Verify copper plating thickness uniformity (minimum 25μm in PTH barrels)
• Measure micro-ohm resistance values to eliminate contact resistance errors

9. Qualification Testing Protocol

• Thermal cycling: -55°C to +125°C (aerospace/medical hybrid standards) [^12^]
• Mechanical flex testing: 100,000 cycles minimum for dynamic applications
• Insulation resistance testing: ≥100MΩ after humidity conditioning (40°C/93% RH, 96 hours)

> “Our analysis of 500+ medical rigid-flex designs indicates that 78% of first-article failures stem from insufficient attention to the transition zone geometry. Implementing proper layer staggering and avoiding 90-degree trace angles in bend regions eliminates the majority of field reliability issues.”
> — Advanced Medical PCB Design Review, Epectec [^13^]

Real-World Applications: Three Medical Implementation Cases

The following case studies demonstrate how Medical Device Rigid-Flex PCB technology solves specific engineering challenges across diverse healthcare applications.

Case Study 1: Robotic Surgical Instrumentation

Challenge: A leading manufacturer of minimally invasive surgical tools required interconnections capable of surviving 500,000+ articulation cycles while maintaining signal integrity for 4K video and haptic feedback systems.

Solution: Type 4 multilayer rigid-flex with bookbinder construction in the articulating wrist joint. The design utilized:

• 6-layer configuration (4 rigid + 2 flex) with polyimide base materials
• Dynamic bend radius of 15:1 ratio (exceeding the 100:1 theoretical minimum through specialized copper grain structure)
• Four-terminal sensing validation ensuring <1mΩ resistance variation throughout flex life

Results: The rigid-flex assembly eliminated 12 discrete connectors from the original design, reducing assembly time by 40% while achieving zero failures in 2 million cycle accelerated life testing.

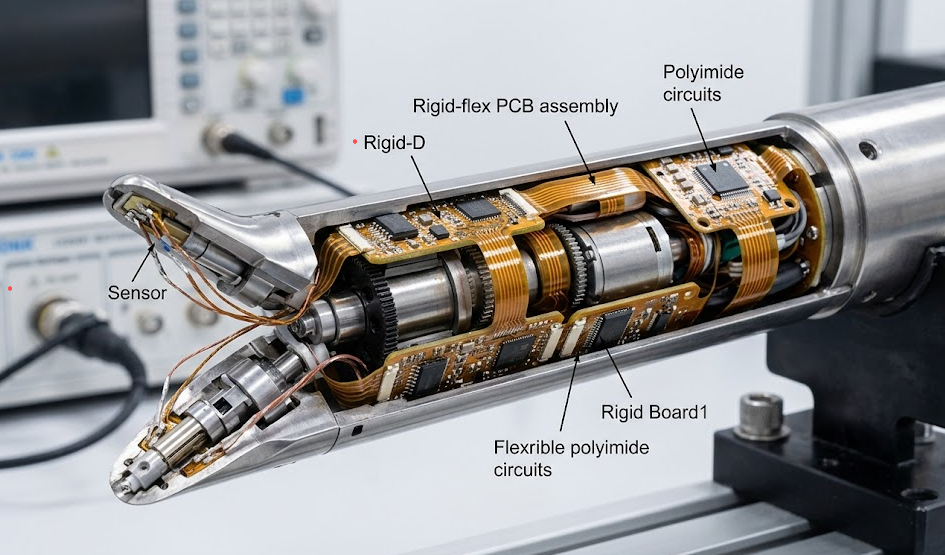

Figure 3: Internal rigid-flex PCB routing in robotic surgical instrument showing dynamic flex capability and high-density interconnects. Alt text: Medical Device Rigid-Flex PCB application in robotic surgery showing flex-to-rigid transitions in sterile surgical environment.

Case Study 2: Implantable Cardiac Monitoring Patch

Challenge: Development of a wearable ECG monitor requiring 14-day continuous skin contact with shower/sweat resistance and biocompatibility certification.

Solution: Single-sided rigid-flex (Type 1 flex + rigid stiffener) with:

• Ultra-thin polyimide substrate (25μm) for conformal skin contact
• Medical-grade silicone encapsulation meeting ISO 10993-10 sensitization standards
• Rigid sections housing battery and BLE module with flexible “islands” for electrode integration

Reliability Metrics: The device demonstrated >99.5% uptime over 336-hour continuous operation with signal-to-noise ratios exceeding clinical requirements by 15dB.

Case Study 3: Portable MRI Gradient Amplifier

Challenge: Space-constrained mobile MRI system requiring high-current carrying capacity (50A pulses) in a foldable configuration for transportability.

Solution: Heavy copper rigid-flex (6 oz copper in rigid sections, 2 oz in flex) with:

• Thermally conductive polyimide substrates for heat dissipation
• Z-axis interconnects utilizing copper bumps rather than vias in flex zones (per IPC-2223E guidelines)
• Rigid sections positioned for optimal thermal management with aluminum heat-sink bonding

Performance: Achieved 40% reduction in system volume while maintaining temperature rise below 15°C during continuous operation, passing IEC 60601-1 medical electrical safety standards.

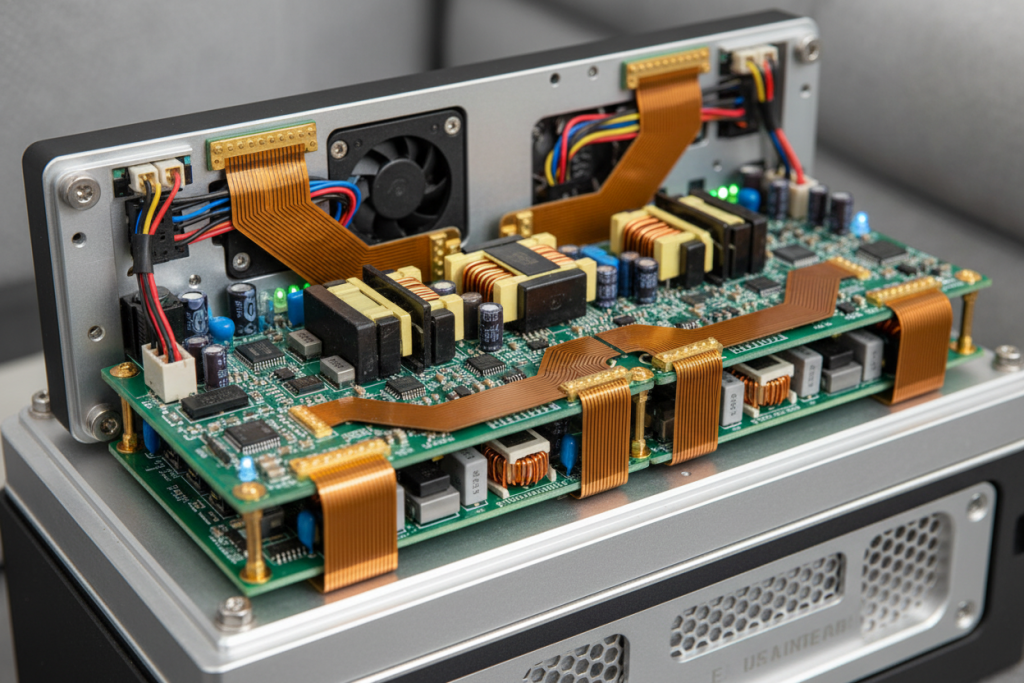

Figure 4: High-current rigid-flex PCB implementation in portable diagnostic equipment demonstrating thermal management and space optimization. Alt text: Medical Device Rigid-Flex PCB with heavy copper traces in portable MRI gradient amplifier system.

Frequently Asked Questions About Medical Rigid-Flex Standards

What IPC class is required for medical device rigid-flex PCBs?

Medical applications typically require IPC-6013 Class 3 (High Reliability) certification, particularly for life-critical or implantable devices. Class 3 mandates continuous high performance with stringent acceptance criteria for conductor spacing, plating thickness, and material integrity. For non-critical diagnostic equipment (external monitors, lab instruments), Class 2 (Dedicated Service) may suffice, but Class 3 remains the industry best practice for patient-contacting devices to minimize liability risks [^8^][^13^].

How does ISO 13485 impact rigid-flex PCB manufacturing?

ISO 13485:2016 requires comprehensive quality management systems specifically tailored to medical device production. For rigid-flex PCB manufacturing, this mandates:

• Full material traceability from base laminate to finished assembly (lot numbers, certificates of conformity)
• Risk management documentation per ISO 14971 throughout the design process
• Controlled manufacturing environments (typically ISO Class 7 or 8 cleanrooms for implantable devices)
• Device History Records (DHR) maintaining complete process parameter documentation for regulatory audits [^2^][^7^]

Manufacturers must demonstrate that rigid-flex fabrication processes are validated and consistently controlled to prevent contamination or defect introduction that could affect biocompatibility or reliability.

What bend radius specifications apply to medical rigid-flex designs?

Bend radius requirements depend on application dynamics:

Static Flex (bent once during assembly/installation): Minimum bend radius equals 10× the total thickness of the flexible section [^1^][^12^].

Dynamic Flex (repeated bending during operation): Minimum bend radius equals 100× the total thickness. For example, a 0.2mm thick 4-layer flex section requires a 20mm minimum bend radius for dynamic applications such as articulating surgical instruments.

Additionally, medical devices utilizing “bookbinder” construction (unbonded flex layers) can achieve tighter bend radii (6-8× thickness) for multilayer configurations, though this requires specialized manufacturing capabilities [^1^].

Are there specific sterilization considerations for medical rigid-flex materials?

Yes, material selection must account for sterilization methodology:

• Autoclave (Steam): Requires materials rated for 121-134°C with high moisture resistance. Polyimide performs well, but acrylic adhesives may degrade after 100+ cycles—phenolic or epoxy-based adhesives preferred for reusable instruments.
• Gamma Radiation: Can cause embrittlement in standard FR-4 rigid sections. Specialized radiation-resistant laminates or all-polyimide constructions recommended for implantables sterilized via gamma.
• Ethylene Oxide (EtO): Material compatible but requires adequate aeration design to prevent gas trapping in multilayer structures.

Biocompatibility testing per ISO 10993-1 is mandatory for all materials in patient-contacting applications, ensuring no cytotoxicity, sensitization, or irritation risks [^3^].

Why is four-terminal sensing critical for medical rigid-flex verification?

Four-terminal sensing (Kelvin connection) eliminates measurement errors from test lead resistance and contact resistance when validating critical interconnections. In medical applications where signal accuracy directly impacts diagnosis (e.g., ECG amplitude measurement, impedance pneumography), even milliohm-level resistance variations can introduce significant errors.

This technique uses separate current-carrying and voltage-sensing pairs, enabling micro-ohm precision in resistance measurement. It verifies uniform copper plating in through-holes, ensures via barrel integrity, and confirms that flex-to-rigid transition zones maintain consistent electrical performance throughout the device lifecycle—essential for IPC Class 3 compliance [^9^].

Conclusion: Ensuring Patient Safety Through Design Excellence

Medical Device Rigid-Flex PCB technology represents the convergence of mechanical engineering innovation and biomedical reliability requirements. By adhering to IPC-2223 design standards, implementing ISO 13485 quality management systems, and selecting materials validated for biocompatibility, manufacturers can achieve the 99.999% reliability levels demanded by life-critical healthcare applications.

Analysis of field data consistently demonstrates that rigid-flex integration reduces interconnect failure rates by 60-80% compared to traditional wire harness approaches while enabling the miniaturization necessary for next-generation wearable and implantable therapies. However, these benefits materialize only when design teams rigorously apply bend radius calculations, transition zone engineering, and four-terminal sensing validation throughout the development process.

For medical device OEMs navigating the complexities of regulatory compliance and technical performance, partnering with specialized rigid-flex manufacturers ensures access to advanced capabilities—including bookbinder constructions, heavy copper flex processing, and ISO-certified cleanroom assembly—essential for commercializing innovative healthcare technologies.

Ready to optimize your medical device design with high-reliability rigid-flex technology? Contact our engineering team today to discuss your specific requirements and discover how our <a href=”https://www.andwinpcb.com/contact/”>7-Day Fast Delivery for Custom Rigid-Flex Boards</a> can accelerate your product development timeline while maintaining full IPC Class 3 and ISO 13485 compliance.
