XtremeSpeed™ RO1200™ Series Circuit Materials

XtremeSpeed™ RO1200™ extremely low loss digital circuit materials are ceramic-filled
laminates reinforced with woven fiberglass. These materials are engineered to offer
exceptional electrical performance and mechanical stability for the most demanding high
speed applications.

XtremeSpeed RO1200 series laminates combine the surface smoothness of a non-woven
PTFE laminate, for finer line etching tolerances, with the rigidity of a woven-glass PTFE
laminate. These materials can be fabricated into printed circuit boards using standard PTFE
circuit board processing techniques as described in the application note, XtremeSpeed
RO1200 Extremely Low Loss Digital Laminate Quick Reference Processing Guide.

XtremeSpeed RO1200 series laminates are manufactured under an ISO 9001 certified
quality system.

Fetures of XtremeSpeed™ RO1200™ Series Circuit Materials

Superior signal integrity
• Low dielectric constant
• Low dissipation factor
• Low profile copper for reduced
insertion loss
Excellent thermal/mechanical
performance characteristics
• Ideal for high layer count structures
• Suitable for lead free processing
• Td: 500°C (TGA)
• Low CTE
Woven glass reinforcement
• Improved rigidity for ease of
handling
• Spread glass for reduced signal skew

XtremeSpeed™ RO1200™ Series Circuit Materials  applications

• Core/edge IP routers and switches
• High performance computing (HPC)
servers, switching and storage
• Backplanes
• Automated test equipment (ATE)

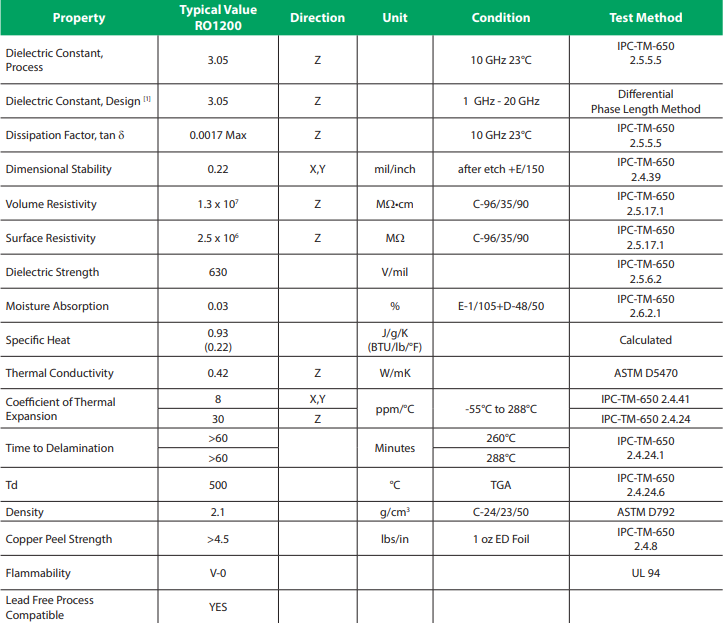

XtremeSpeed™ RO1200™ Series Circuit Materials  datasheet

XtremeSpeed™ RO1200™ Series Circuit Materials standard thickness

0.003” (0.076mm) +/- 0.0005”
0.004” (0.102mm) +/- 0.0005”
0.005” (0.127mm) +/- 0.0007”
0.006” (0.152mm) +/- 0.0007”
0.007” (0.178mm) +/- 0.001”
0.008” (0.203mm) +/- 0.001”
0.010” (0.254mm) +/- 0.001”

XtremeSpeed™ RO1200™ Series Circuit Materials standard size

12” X 18” (305 X 457mm)
24” X 18” (610 X 457mm)
Additional panel sizes available

XtremeSpeed™ RO1200™ Series Circuit Materials standard Copper clad

Reverse Treated Electrodeposited
Copper Foil
2 oz. (70µm) S2/S2
Rolled Copper Foil
½ oz. (18µm) AH/AH
1 oz. (35µm) A1/A1

XtremeSpeed™ RO1200™ Series Circuit Materials  price

Rogers RO3010 price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RO3010 substrate size etc.

Andwin use Rogers RO3010 to make mass PCB production,
Many types Rogers RO3010 are in stock,also, have good offer from Rogers factory.
If you need Rogers 3010PCB or raw material,
Please contact us to get the supper good Rogers RO3010 price.

CONTACT US FORXTREMESPEED™ RO1200™ SERIES CIRCUIT MATERIALS OR PCB
