Rogers Ro3006 pcb material

Rogers Ro3006 PCB raw material belong to RO3000 Series Circuit Materials.
Rogers 3006 is high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications.

This family of products was designed to offer exceptional electrical and mechanical stability
at competitive prices.
RO3000 series laminates are ceramic-filled PTFE based circuit materials
with mechanical properties that are consistent regardless of the dielectric constant selected.

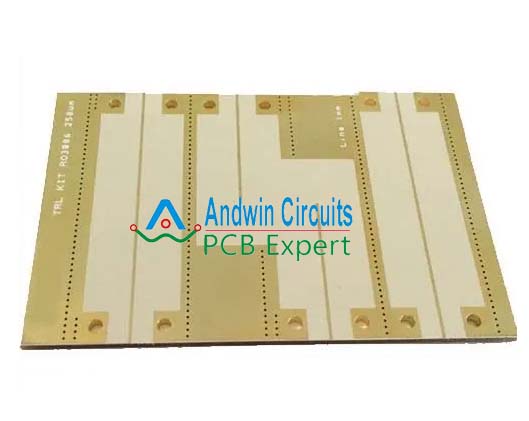

Rogers Ro3006 pcb material

Fetures of Rogers RO3006 PCB Material

  • Volume manufacturing process
  • Low dielectric loss
  • Laminates can be used in applictions up to 77 GHz.
  • Excellent mechanical properties versus temperature
  • Reliable stripline and multilayer board constructions
  • Ideal for multilayer board designs
  • Range of dielectric constants
  • Suitable for use with epoxy glass multilayer board hybrid designs
  • Stable dielectric constant versustemperature and frequency
  • Low in-plane expansion coefficient
Rogers Ro3006 pcb material

Rogers RO3006 PCB Material applications

  • Patch antenna for wireless communications
  • Direct broadcast satellites
  • Power backplanes
  • Automotive radar applications
  • Global positioning satellite antennas
  • Cellular telecommunications
  • systems -power amplifiers and antennas
  • Datalink on cable systems
  • Remote meter readers

Rogers RO3006 PCB Material datasheet

rogers ro3006 pcb material datasheet

rogers ro3006 pcb material datasheet

Rogers RO3006 PCB Material standard thickness

Rogers RO3006:
0.005” (0.13mm) +/- 0.0005″
0.010” (0.25mm) +/- 0.0007″
0.025” (0.64mm) +/- 0.0010″
0.050” (1.28mm) +/- 0.0020″

Rogers RO3006 PCB Material standard size

12″ X 18″ (305 X 457mm)
24″ X 18″ (610 X 457mm)

Rogers RO3006 PCB Material standard Copper clad

Electrodeposited Copper Foil
½ oz. (18μm)
1 oz. (35μm)

Rogers Ro3006 pcb material

Rogers RO3006 PCB Material price

Rogers RO3006 price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RO3006 substrate size etc.

Andwin use Rogers RO3006 to make mass PCB production,
Many types Rogers RO3006 are in stock,also, have good offer from Rogers factory.
If you need Rogers 3006 PCB or raw material,
Please contact us to get the supper good Rogers RO3006 price.

CONTACT US FOR ROGERS RO3006 MATERIAL OR PCB
