Rogers RO3035 PCB raw material

Rogers Ro3035 PCB raw material belong to RO3000 Series Circuit Materials. Rogers 3035 is high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications.

RO3000 series laminates are ceramic-filled PTFE based circuit materials
with mechanical properties that are consistent regardless of thedielectric constant selected.
This allows the designer to develop multilayer board
designs that use different dielectric constant materials for individual layers, without
encountering warpage or reliability problems.

RO3035 materials exhibit a coefficient of thermal expansion (CTE) in the X and Y
axis of 17 ppm/°C.
This expansion coefficient is matched to that of copper,which allows thematerial to exhibit excellent dimensional stability,
with typical etch shrinkage (after etch and bake) of less than 0.5 mils per inch. The Z-axis CTE is 24
ppm/ °C, which providesexceptional plated through-hole reliability, even in severe thermal environments.

rogers ro3035 pcb

rogers ro3035 pcb

As a Rogers 3035 PCB manufacturer,
Andwin provide high quality Rogers Ro3035 PCB manfucturing,
Rogers 3035 PCB raw material in stock, quickturn delivery is acceptable.

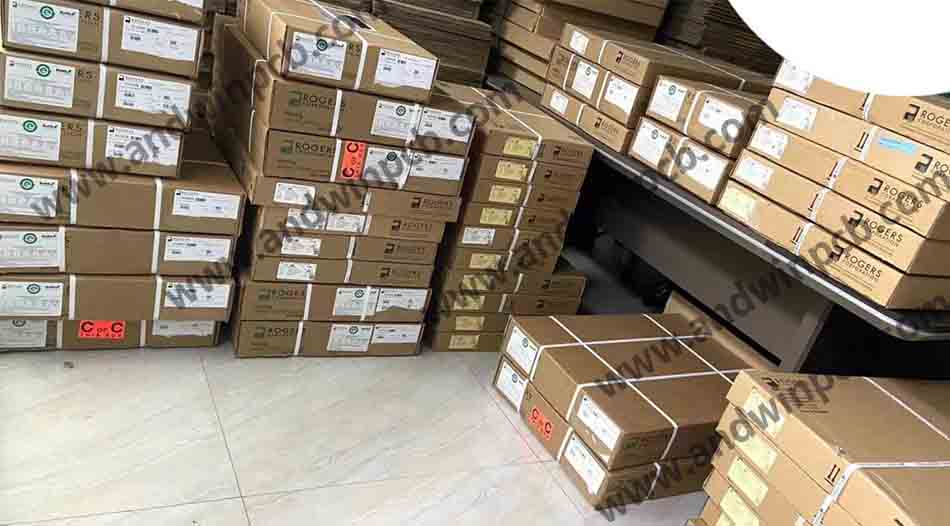

rogers ro3035 pcb raw material

Rogers ro3035 pcb raw material

Fetures of Rogers RO3035 PCB Material

  • Low in-plane expansion coefficient
  • Volume manufacturing process
  • Low dielectric loss
  • Reliable stripline and multilayer board constructions.
  • Ideal for multilayer board designs
  • Laminates can be used in applictions up to 77 GHz.
  • Excellent mechanical properties versus temperature
  • Range of dielectric constants
  • Suitable for use with epoxy glass multilayer board hybrid designs
  • Stable dielectric constant versustemperature and frequency

rogers ro3035 pcb raw material

Rogers ro3035 pcb raw material

Rogers RO3035 PCB Material applications

  • Automotive radar applications
  • Global positioning satellite antennas
  • Datalink on cable systems
  • Remote meter readers
  • Power backplanes
  • Cellular telecommunications
  • systems -power amplifiers and antennas
  • Patch antenna for wireless communications
  • Direct broadcast satellites

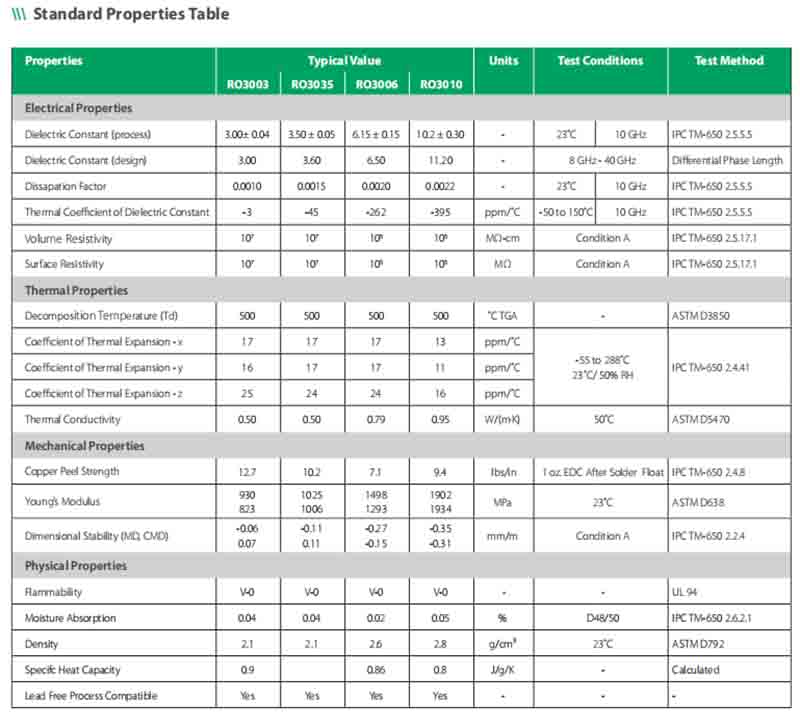

Rogers RO3035 PCB Material datasheet

rogers ro3035 pcb raw material datasheet

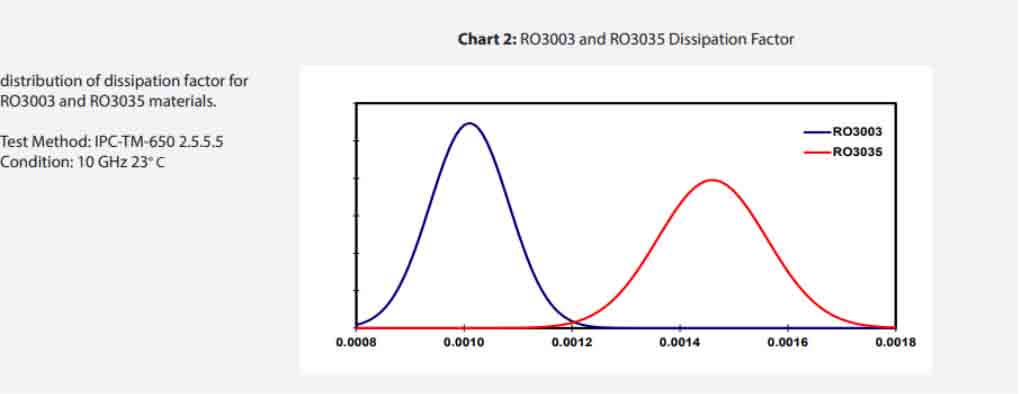

rogers ro3035 pcb raw material dissipation factor

Rogers Ro3035 pcb raw material dissipation factor

Rogers RO3035 PCB Material standard thickness

Rogers RO3010:
0.005” (0.13mm) +/- 0.0005″
0.010” (0.25mm) +/- 0.0007″
0.025” (0.64mm) +/- 0.0010″
0.050” (1.28mm) +/- 0.0020″

Rogers RO3035 PCB Material standard size

12″ X 18″ (305 X 457mm)
24″ X 18″ (610 X 457mm)

Rogers RO3035 PCB Material standard Copper clad

Electrodeposited Copper Foil
½ oz. (18μm)
1 oz. (35μm)

Rogers RO3035 PCB raw Material price

Rogers RO3035 price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RO3035 substrate size etc.

Andwin use Rogers RO3035 to make mass PCB production,
Many types Rogers RO3035 are in stock,also, have good offer from Rogers factory.
If you need Rogers 3035 PCB or raw material,
Please contact us to get the supper good Rogers RO3035 price.

rogers ro3035 pcb raw material

Rogers ro3035 pcb raw material

CONTACT US FOR ROGERS RO3010 MATERIAL OR PCB
