Thermal conductivity of aluminum substrate PCB

The thermal conductivity of aluminum substrate materials is relatively high compared to other metals and materials.

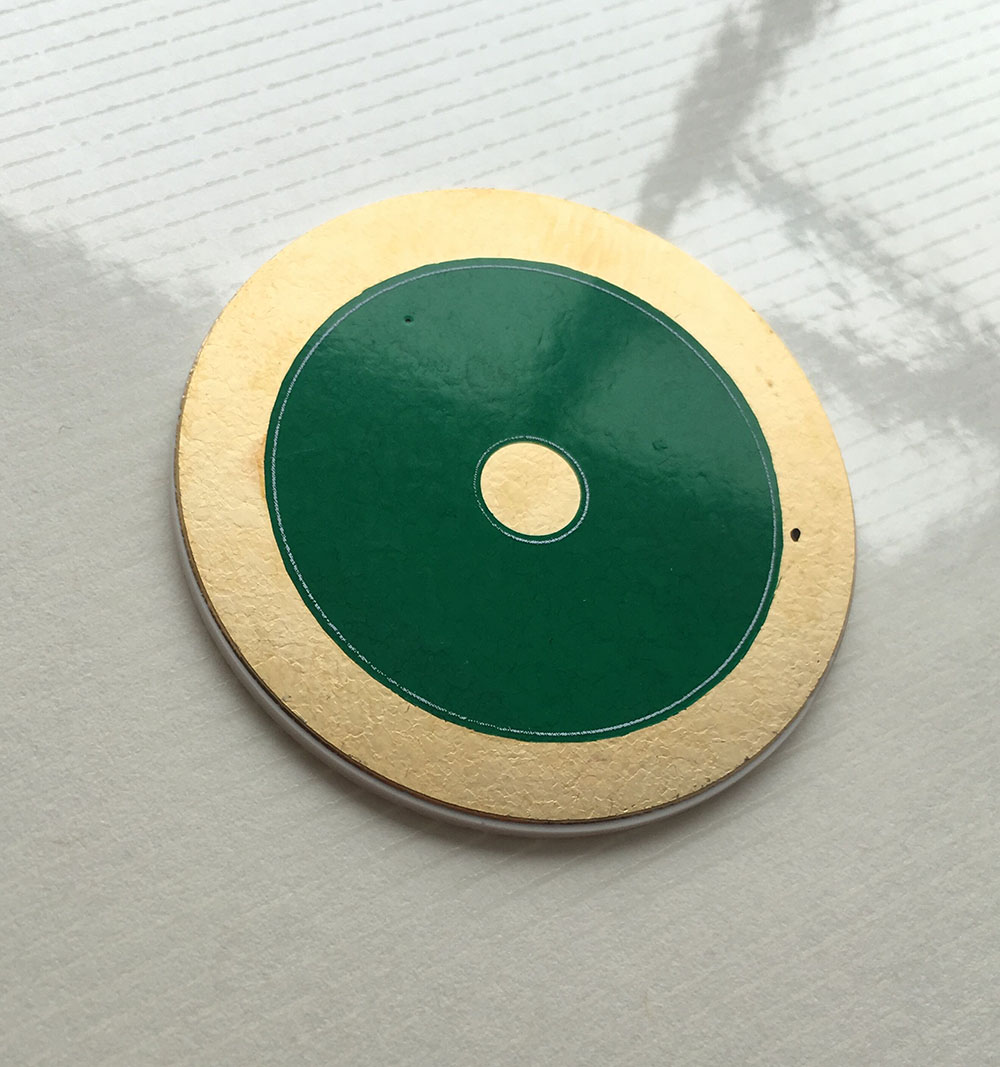

alumina pcb

The thermal conductivity of pure aluminum is around 237 W/mK, while aluminum alloys have slightly lower thermal conductivity values,

typically ranging from 120 to 220 W/mK.

The high thermal conductivity of aluminum substrate materials makes them ideal for applications that require efficient heat transfer,

such as heat sinks, electronic components, and cooling systems. Aluminum substrates are also commonly used in LED lighting applications,

where they help to dissipate heat generated by the LEDs and prevent overheating.

Overall, the high thermal conductivity of aluminum substrate materials makes them a popular choice for a wide range of applications where efficient heat transfer is critical.

GET IN TOUCH!

How to calculate the thermal conductivity of aluminum substrate

The thermal conductivity of aluminum substrate can be calculated using the following formula:

k = Q × L / (A × ΔT)

where:
k = thermal conductivity (W/mK)
Q = heat flow rate (W)
L = length of the sample (m)
A = cross-sectional area of the sample (m2)
ΔT = temperature difference across the sample (K)

To measure the thermal conductivity of an aluminum substrate, a heat source is applied to one end of the sample,

and a temperature sensor is placed at the other end. The heat flow rate and temperature difference are measured,

and the length and cross-sectional area of the sample are known.

Once these values are obtained, the thermal conductivity can be calculated using the formula above.

It is important to note that the thermal conductivity of aluminum can vary depending on factors such as temperature,

alloy composition, and impurities, so it is recommended to use values specific to the material being tested.

How to use the thermal conductivity of aluminum substrate

The thermal conductivity of aluminum substrate is an important parameter in many applications,

especially in the field of heat transfer and thermal management.

It is used to determine the rate of heat transfer through the material,

which is critical in designing and optimizing thermal systems.
