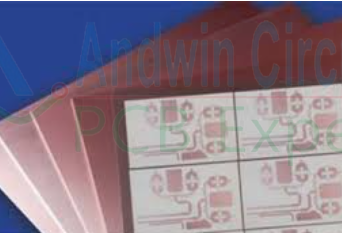

AD Series™ Antenna Materials

The AD Series™ antenna materials from Rogers Corporation are high
performance, specialty materials that are specifically engineered and
manufactured to meet the demands of today’s wireless antenna markets.
Rogers has the materials needed to meet these design needs both today
and into the future.

The AD Series antenna products are glass-reinforced, PTFE based materials
that provide controlled dielectric constant, low loss performance, and
very good passive intermodulation (PIM) performance. The woven glass
reinforcement affords good circuit processability and enables high yield
circuit board fabrication.

The AD Series antenna products are manufactured with many dielectric
constant options to meet the wide variety of needs for today’s antenna
requirements. These options and tight control help to enable the circuit to
meet the desired impedance every time.

All AD Series antenna products are offered with standard electrodeposited
(ED) or reverse treated ED copper foil options. This provides choices that are
sufficient to help reduce both circuit losses and antenna PIM.

Lastly, as PTFE based composites, the AD Series antenna materials have very
low loss (typically less than 0.002 at 10 GHz), very low moisture absorption
(less than 0.1%), and very high copper peel strength (greater than 10 pli).

These features combined together make the AD Series laminates an ideal
choice for antenna applications

Fetures of AD Series™ Antenna Materials

 Low loss tangent (<0.002 at 10 GHz)
• Excellent circuit performance
in all typical wireless frequency
bands
Controlled dielectric constant (±0.05)
• • Repeatable circuit performance
Very low PIM (-159 dBc at 30 mil, 1900
MHz)
• Excellent antenna performance
and reduced yield loss due to
PIM related issues
Excellent dimensional stability
• Repeatable circuit performance
and improved manufacturing
yields

AD Series™ Antenna Materials  applications

• Cellular infrastructure base
station antenna
• Automotive telematics antenna
systems
• Commercial satellite radio
antenna

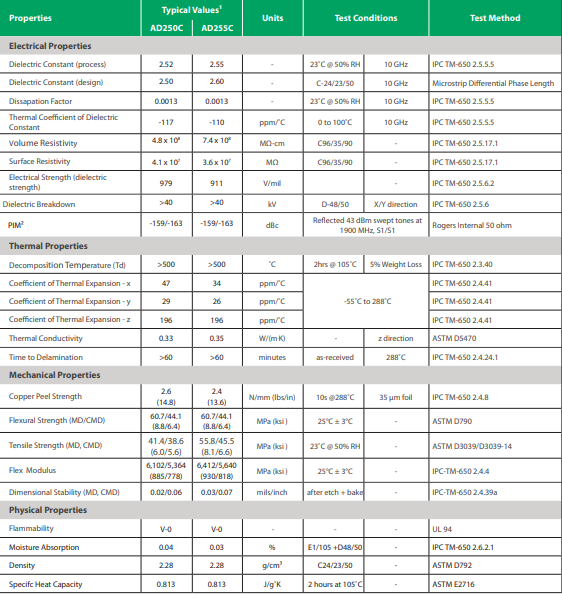

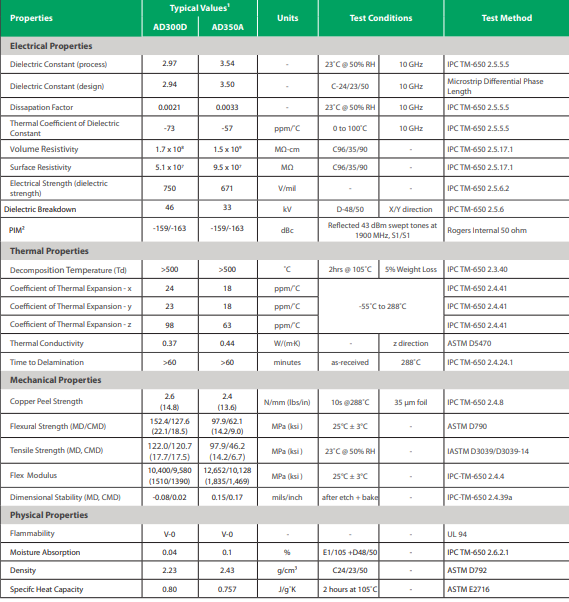

AD Series™ Antenna Materials datasheet

AD Series™ Antenna Materials thickness

AD250C
0.020” (0.508 mm) +/- 0.002”
0.030” (0.762 mm) +/- 0.002”
0.060” (1.524 mm) +/- 0.003”
AD255C
0.020” (0.508 mm) +/- 0.002”
0.030” (0.762 mm) +/- 0.002”
0.040” (1.016 mm) +/- 0.002”
0.060” (1.524 mm) +/- 0.002”
0.125” (3.175 mm) +/- 0.006”
AD300D
0.030” (0.762 mm) +/- 0.002”
0.040” (1.016mm) +/- 0.002”
0.060” (1.524 mm) +/- 0.002”
0.120” (3.048 mm) +/- 0.006”
AD350A
0.030” (0.762 mm) +/- 0.002”
0.060” (1.524 mm) +/- 0.003”
0.120” (3.048 mm) +/- 0.006”

AD Series™ Antenna Materials standard size

AD250C .020”:
18” x 12” (457mm x 305mm)
18” x 24” (457mm x 610mm)
All Other Thicknesses
12” X 18” (305 X 457 mm)
24” X 18” (610 X 457 mm)

AD Series™ Antenna Materials standard Copper clad

Electrodeposited Copper Foil
½ oz. (18µm)
1oz. (35µm)
Reverse Treated Electrodeposited Copper Foil
½ oz. (18µm)
1oz. (35µm)

AD Series™ Antenna Materials price

RogersAD Series™ Antenna Materials are very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
AD Series™ Antenna Materials substrate size etc.

Andwin use AD Series™ Antenna Materials to make mass PCB production,
Many typesAD Series™ Antenna Materials are in stock,also, have good offer from Rogers factory.
If you need AD Series™ Antenna Materials or raw material,
Please contact us to get the supper good AD Series™ Antenna Materials price.
