RT duroid 6035HTC high frequency circuit materials

RTduroid 6035HTC high frequency circuit materials are ceramic filled PTFE composites for
use in high power RF and microwave applications.

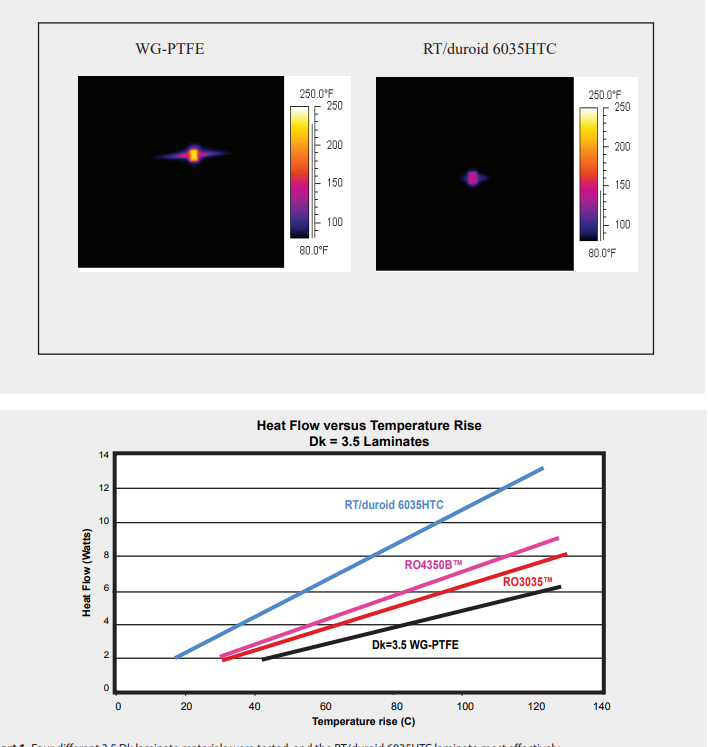

With a thermal conductivity of almost 2.4 times the standard RT/duroid 6000 products, and
copper foil (electrodeposited and reverse treat) with excellent long term thermal stability, RTduroid 6035HTC laminates are an exceptional choice for high power applications.

Rogers advanced filler system enables excellent drill ability, reducing drilling costs as
compared to standard high thermally conductive laminates which use alumina fillers.

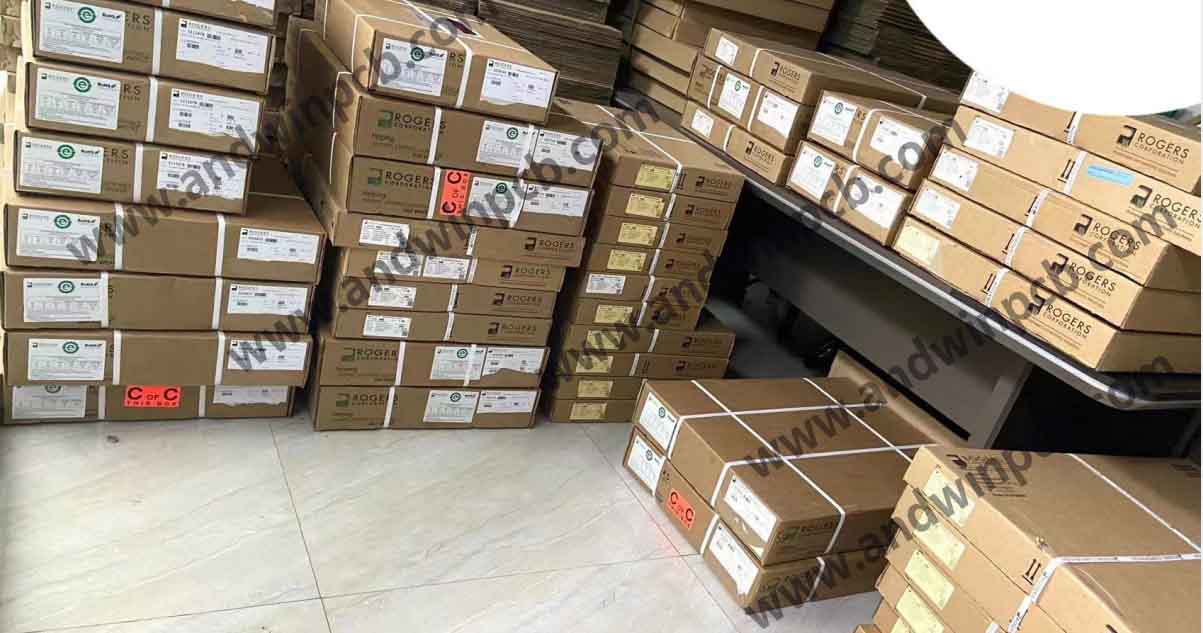

rogers ro3010 pcb

Fetures of RTduroid 6035HTC high frequency circuit materials

  • High Thermal conductivity
    Improved dielectric heat
    dissipation enables lower
    operating temperatures for high
    power applications
    Low loss tangent
  • Excellent high frequency performance
    Thermally stable low profile and reverse
    treat copper foil
  • Lower insertion loss and excellent
    thermal stability of traces
    Advanced filler system
  •  Improved drill ability and extended
    tool life compared to aluminacontaining circuit materials

RT duroid 6035HTC high frequency circuit materials applications

• High power RF and microwave amplifiers
• Power amplifiers, couplers, filters,
combiners, power dividers

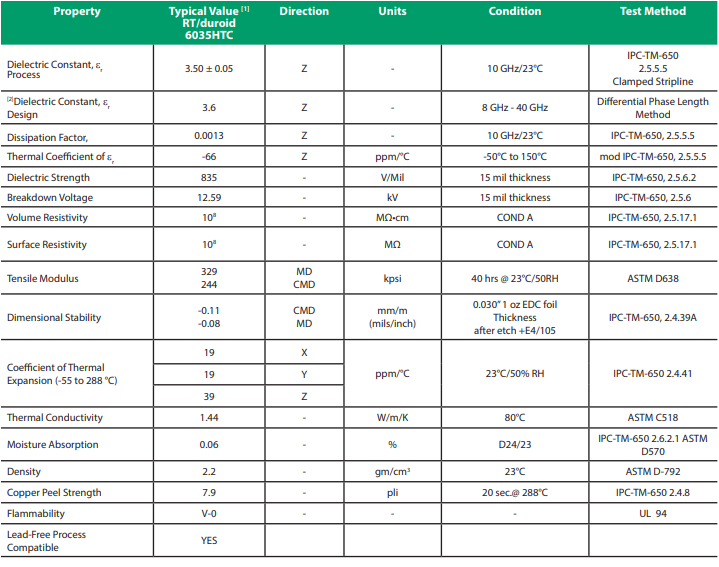

RTduroid 6035HTC high frequency circuit materials datasheet

RTduroid 6035HTC high frequency circuit materials standard thickness

0.010” (0.254mm)
0.020” (0.508mm)
0.030” (0.762mm)
0.060” (1.524mm)

RTduroid 6035HTC high frequency circuit  Material standard size

12” X 18” (305 X457mm)
24” X 18” (610 X 457mm)

RTduroid 6035HTC high frequency circuit Material standard Copper clad

½ oz. (18µm) Electrodeposited copper foil (HH/HH)
1 oz. (35µm) Electrodeposited copper foil (H1/H1)
2 oz. (70µm) Electrodeposited copper foil (H2/H2)
½ oz. (18µm) Reverse treat copper foil (SH/SH)
1 oz. (35µm) Reverse treat copper foil (S1/S1)

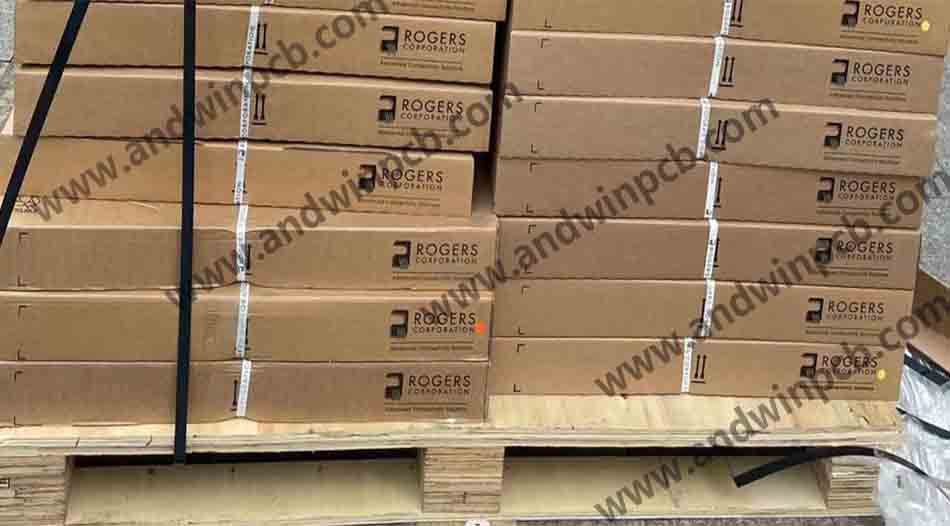

rogers ro3035 pcb raw material

Rogers ro3035 pcb raw material

RTduroid 6035HTC high frequency circuit materials price

RTduroid 6035HTC  price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RTduroid 6035HTC substrate size etc.

Andwin use Rogers RTduroid 6035HTCto make mass PCB production,
Many types Rogers RTduroid 6035HTCare in stock,also, have good offer from Rogers factory.
If you need Rogers RTduroid 6035HTC or raw material,
Please contact us to get the supper good RTduroid 6035HTC price.

CONTACT US FOR RTDUROID 6035HTC MATERIAL OR PCB
