RogersRT duroid  6006/6010 LM PCB material

RT/duroid 6006/6010LM microwave laminates are ceramicPTFE composites designed for electronic and microwave circuit applications requiring a high dielectric constant.

RT/duroid 6006 laminate is available with a dielectric constant value of 6.15 and RT/duroid 6010LM laminate has a dielectric constant of 10.2. RT/duroid 6006/6010LM microwave laminates feature ease of fabrication and stability in use. They have tight dielectric constant and thickness control, low moisture absorption, and good thermal mechanical stability.

RT/duroid 6006/6010LM laminates are supplied clad both sides with 1/2 oz. to 2 oz./ft2 (18 to 70 mm) standard and reverse treated electrodeposited copper foil. Thick aluminum, brass, or copper plate on one side may be specified.

Standard tolerance dielectric thicknesses of 0.010”, 0.025”, 0.050”, 0.075”, and 0.100” (0.254, 0.635, 1.270, 1.905, 2.54 mm) are available. When ordering RT/duroid 6006 and RT/duroid 6010LM laminates, it is important to specify dielectric thickness and weight of copper foil required.

Fetures of Rogers RT/duroid6006/6010LMPCB Material

  • Low dielectric loss
  • High dielectric constant for circuit size reduction
  •  Low loss. Ideal for operating at X-band or below
  •  Low Z-axis expansion for RT/duroid 6010LM. Provides reliable plated through holes in multilayer boards
  •  Low moisture absorption for RT/duroid 6010LM. Reduces effects of moisture on electrical loss
  • Tight and thickness control for repeatable circuit performance

Rogers RT/duroid 6006/6010LM Material applications

  •  Patch Antennas
  •  Satellite Communications Systems
  •  Power Amplifiers
  •  Aircraft Collision Avoidance Systems
  •  Ground Radar Warning Systems

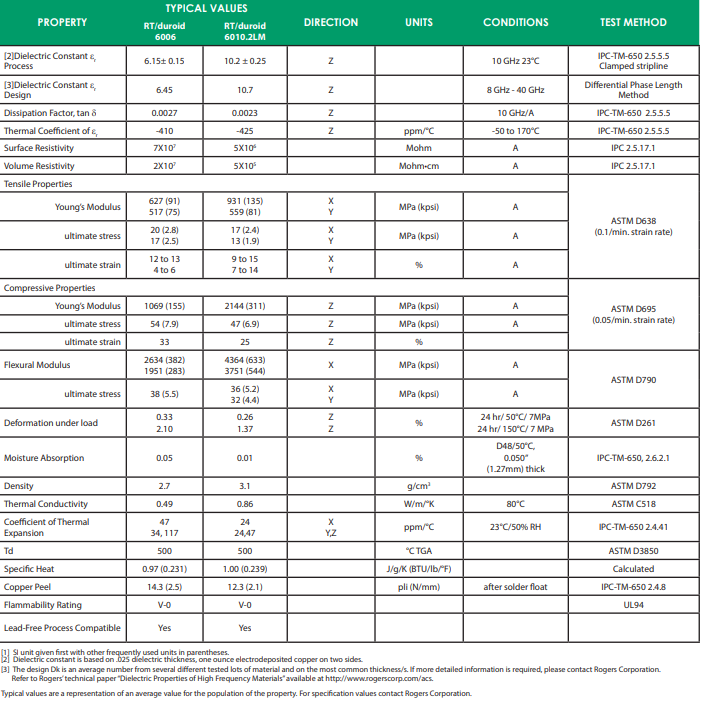

Rogers RT/duroid 6006/6010LM PCB Material datasheet

Rogers RT/duroid 6006/6010LM Material standard thickness

0.025” (0.635mm) +/- 0.0015”
0.050” (1.270mm) +/- 0.0020”
0.075” (1.900mm) +/- 0.0030”
*Additional non-standard thicknesses available from 0.005” –
0.200” in increments of 0.005”

Rogers RT/duroid 6006/6010LM Material standard size

10” X 10” (254mm X 254mm)
10” X 20” (254mm X 508mm)
18” X 12” (457mm X 305mm)
*Additional panel sizes available

Rogers RT/duroid 6006/6010LM Material standard Copper clad

Electrodeposited Copper Foil
½ oz. (18µm) HH/HH
1 oz. (35µm) H1/H1
*Additional claddings, such as heavy metal, resistive foil and unclad
are available

Rogers RO3010 price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RO3010 substrate size etc.

Andwin use Rogers RO3010 to make mass PCB production,
Many types Rogers RO3010 are in stock,also, have good offer from Rogers factory.
If you need Rogers 3010PCB or raw material,
Please contact us to get the supper good Rogers RO3010 price.

CONTACT US FOR ROGERS RT/DUROID 6006/6010LM MATERIAL OR PCB
