RT duroid 6202 high frequency circuit material

RT duroid 6202 high frequency circuit material is a
low loss and low dielectric constant laminate offering
superior electrical and mechanical properties essential
in designing complex microwave structures which are
mechanically reliable and electrically stable.

Excellent dimensional stability (0.05 to 0.07 mils/inch)
is achieved by the addition of limited woven glass
reinforcement. This often eliminates double etching to
achieve tight positional tolerances.

½ oz. to 2 oz./ft.2
electrodeposited and rolled copper
foil may be specified as cladding on dielectric
thicknesses from 0.005” to 0.060” (0.127 to 1.524 mm).

Applications particularly suited to the unique properties
of RT/duroid 6202 material include flat and non-planar
structures such as antennas and complex multilayer
circuits with interlayer connections.

Feature of RT duroid 6202 high frequency circuit Material

• Low loss for excellent high frequency performance
• Tight and thickness control
• Excellent electrical and mechanical properties
• Extremely low thermal coefficient of dielectric constant
• In-plane expansion coefficient matched to copper
• Very low etch shrinkage

Rogers rt duroid 5870

RT duroid 6202 high frequency circuit material applications

  •  Phased Array Antennas
  • Ground Based and Airborne Radar
    Systems
  • Global Positioning System Antennas
  • Power Backplanes
  • High Reliability Complex Multilayer
    Circuits
  • Commercial Airline Collision Avoidance
    Systems
  • Beam Forming Networks

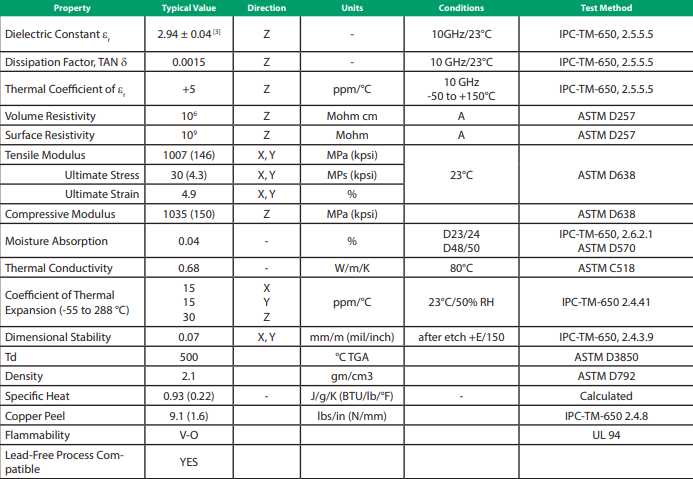

RT duroid 6202 high frequency circuit material datasheet

RT duroid 6202 high frequency circuit material standard thickness

0.005” (0.127mm) +/- 0.0005”
0.020” (0.508mm) +/- 0.0010”
0.030” (0.762mm) +/- 0.0010”
*Additional non-standard thicknesses
available from 0.005” – 0.060” in varying
increments

RT duroid 6202 high frequency circuit  Material standard size

12” X 18” (305mm X 457mm)
24” X 18” (610mm X 457mm)
*Additional panel sizes available

RT duroid 6202 high frequency circuit Material standard Copper clad

Electrodeposited Copper Foil
½ oz. (18µm) HH/HH
1 oz. (35µm) H1/H1
Rolled Copper Foil
½ oz. (18µm) 5R/5R
1 oz. (35µm) 1R/1R
*Additional claddings and cladding weights, such as resistive foil and
reverse treated ED are available

RT duroid 6202 high frequency circuit  Material price

RT duroid 6202  is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
RT duroid 6202 substrate size etc.

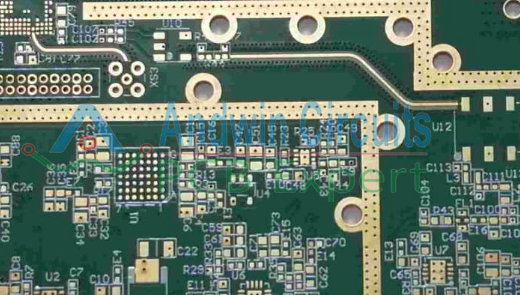

Andwin use RT duroid 6202 to make mass PCB production,
Many types RT duroid 6202 are in stock,also, have good offer from Rogers factory.
If you need RT duroid 6202 or raw material,
Please contact us to get the supper good Rogers RT duroid 6202 price.
