RT duroid 6202PR high frequency circuit material

RT duroid 6202PR high frequency circuit material is a low loss and low dielectric
constant laminate offering superior electrical and mechanical properties essential
in designing complex microwave structures which are mechanically reliable and
electrically stable and used for planar resistor applications.

Excellent dimensional stability (0.05 to 0.07 mils/inch) is achieved by the addition of
limited woven glass reinforcement. This enables the manufacture of tight tolerance
planar resistors.

¼ oz. to 2 oz./ft.2
electrodeposited copper foil , ½ oz., 1 oz. and 2 oz. rolled copper foil,
½ oz., 1oz. and 2 oz. reverse treated foil and ½ oz. and 1 oz. electrodeposited copper
foil with a resistive layer, may be specified as cladding on 0.005” (0.127mm), 0.010”
(0.254mm), 0.015” (0.381mm), & 0.020” (0.508mm) standard dielectric thicknesses. RT/
duroid 6002PR (non-reinforced) available in 0.020 and 0.030 dielectric thicknesses.

Applications particularly suited to the unique properties of RT/duroid 6202PR material
include flat and non-planar structures such as antennas and complex multi-layer
circuits with inter-layer connections

Fetures of RT duroid 6202PR high frequency circuit  Material

  • Low Loss
    • Excellent high frequency
    performance
    Excellent mechanical and electrical
    properties
    • Reliable multi-layer board
    constructions
    Tight dielectric constant and thickness
    controls
    Extremely low thermal coefficient of
    dielectric constant
    • Excellent dimensional stability
    In-plane expansion coefficient matched
    to copper
    • Allows for more reliable surface
    mounted assemblies
    • Ideal for applications sensitive to
    temperature change
    • Excellent dimensional stability

RT duroid 6202PR high frequency circuit  Material applications

• Phased Array Antennas
• Ground Based and Airborne Radar
Systems
• Global Positioning System Antennas
• Power Backplanes
• High Reliability Complex Multilayer
Circuits
• Commercial Airline Collision Avoidance
Systems
• Beam Forming Networks

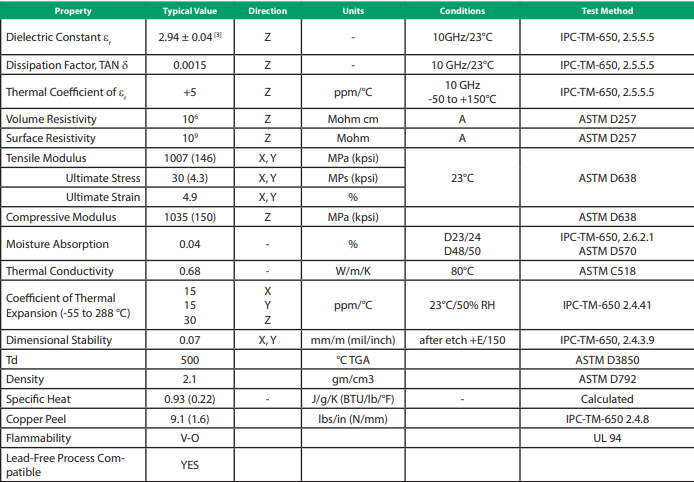

RT duroid 6202PR high frequency circuit material datasheet

RT duroid 6202PR high frequency circuit  Material standard thickness

0.005” (0.127mm) +/- 0.0005”
0.020” (0.508mm) +/- 0.0010”
0.030” (0.762mm) +/- 0.0010”
*Additional non-standard thicknesses
available from 0.005” – 0.060” in varying
increments

RT duroid 6202PR high frequency circuit Material standard size

12” X 18” (305mm X 457mm)
24” X 18” (610mm X 457mm)
*Additional panel sizes available

RT duroid 6202PR high frequency circuit Material standard Copper clad

Electrodeposited Copper Foil
½ oz. (18µm) HH/HH
1 oz. (35µm) H1/H1
*Additional claddings, such as
resistive foil and unclad are available

Rolled Copper Foil
½ oz. (18µm) 5R/5R
1 oz. (35µm) 1R/1R

RT duroid 6202PR high frequency circuit Material price

RogersRT duroid 6202PR  price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RT duroid 6202PR substrate size etc.

Andwin use Rogers RT duroid 6202PR to make mass PCB production,
Many types Rogers RT duroid 6202PR are in stock,also, have good offer from Rogers factory.
If you need Rogers RT duroid 6202PRor raw material,
Please contact us to get the supper good RogersRT duroid 6202PR price.
