Rogers RO4360G2 PCB material

RO4360G2™ laminates are 6.15 Dk, low loss, glass-reinforced,
hydrocarbon ceramic-filled thermoset materials that provide the ideal
balance of performance and processing ease. RO4360G2 laminates
extend Rogers’ portfolio of high performance materials by providing
customers with a product that is lead-free process capable and
offers better rigidity for improved processability in multi-layer board
constructions, while reducing material and fabrication costs.

RO4360G2 laminates process similar to FR-4 and are automated
assembly compatible. They have a low
Z-axis CTE for design flexibility and have the same high Tg as all of
the RO4000 product line. RO4360G2 laminates can be paired with
RO4400™ prepreg and lower-Dk RO4000 laminate in multi-layer
designs.

RO4360G2 laminates, with a Dk of 6.15 (Design Dk 6.4), allow designers
to reduce circuit dimensions in applications where size and cost are
critical. They are the best value choice for engineers working on
designs including power amplifiers, patch antennas, ground-based
radar, and other general RF applications.

Fetures of Rogers RO4360G2 PCB Material

  • RO4000  thermoset resin system specially
    formulated to meet 6.15 Dk
    • Ease of fabrication / processes similar
    to FR-4
    • RO4000 material repeatability
    • Low loss
    • High thermal conductivity
    • Lower total PCB cost solution than competing PTFE products
  • Low Z-axis CTE / High Tg
    • Design flexibility
    • Plated through-hole reliability
    • Automated assembly compatible
  • Environmentally friendly
    • Lead free process compatible
  • Regional finished goods inventory
    • Short lead times / quick inventory turns
    • Efficient supply chain

Rogers RO4360G2 PCB Material applications

• Base Station Power Amplifiers
• Small Cell Transceivers

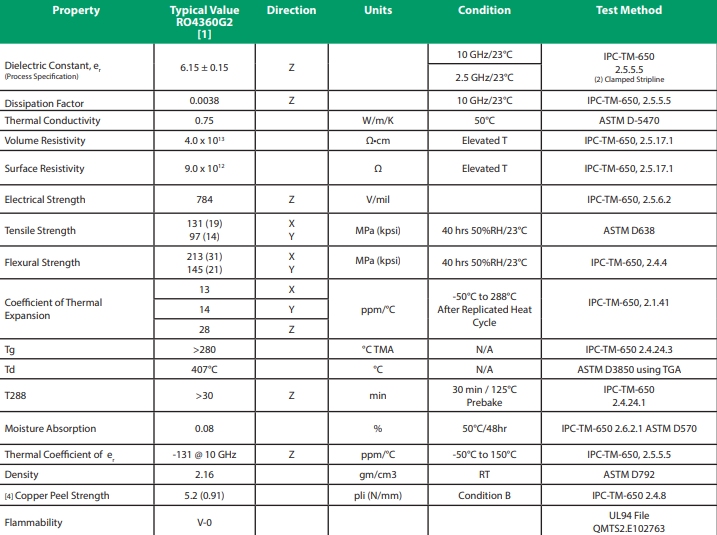

Rogers RO4360G2 PCB Material datasheet

Rogers RO4360G2 PCB Material standard thickness

0.008” (0.203mm) +/- 0.0007”
0.016” (0.406mm) +/- 0.0015”
0.020” (0.508mm) +/- 0.0015”
0.024” (0.610mm) +/- 0.0015”
0.032” (0.813mm) +/- 0.0020”
0.060” (1.524mm) +/- 0.0040”
*Additional non-standard thicknesses available from
0.008” – 0.060” in increments of 0.004”

Rogers RO4360G2 PCB Material standard size

24” X 18” (610 X 457mm)
24” X 21” (610 X 533mm)
24” X 36” (610 X 915 mm)
48” X 36” (1219 X 915 mm)
*Additional panel size available

Rogers RO4360G2 PCB Material standard Copper clad

Electrodeposited Copper Foil
½ oz. (18µm) HH/HH
1 oz. (35µm) H1/H1
*Additional claddings, such as heavy metal, resistive
foil and unclad are available

Rogers RO4360G2 PCB Raw Material price

Rogers RO4360G2 price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  RO4360G2 substrate size etc.

Andwin use Rogers RO4360G2 to make mass PCB production,
Many types Rogers RO4360G2 are in stock,also, have good offer from Rogers factory.
If you need Rogers RO4360G2 or raw material,
Please contact us to get the supper good Rogers RO4360G2 price.

CONTACT US FOR ROGERS RO4360G2 MATERIAL OR PCB
