IsoClad laminates

IsoClad laminates are nonwoven fiberglass/PTFE
composites for use as printed circuit board
substrates. The nonwoven reinforcement allows
these laminates to be used more easily in
applications where the final circuit will be bent to
shape. Conformal or “wrap-around” antennas are
a good example.

IsoClad products use longer random fibers and a
proprietary process to provide greater dimensional
stability and better dielectric constant uniformity
than competitive nonwoven fiberglass/PTFE
laminates of similar dielectric constants.

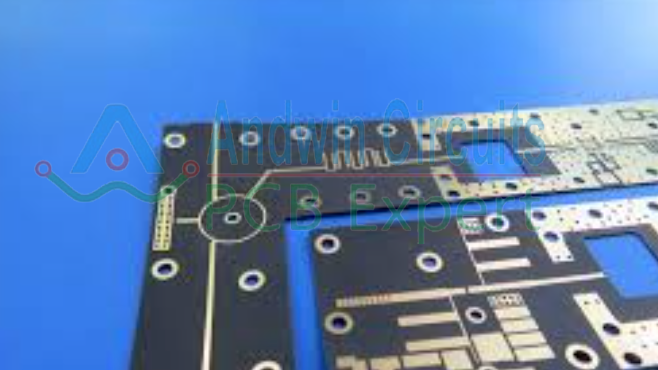

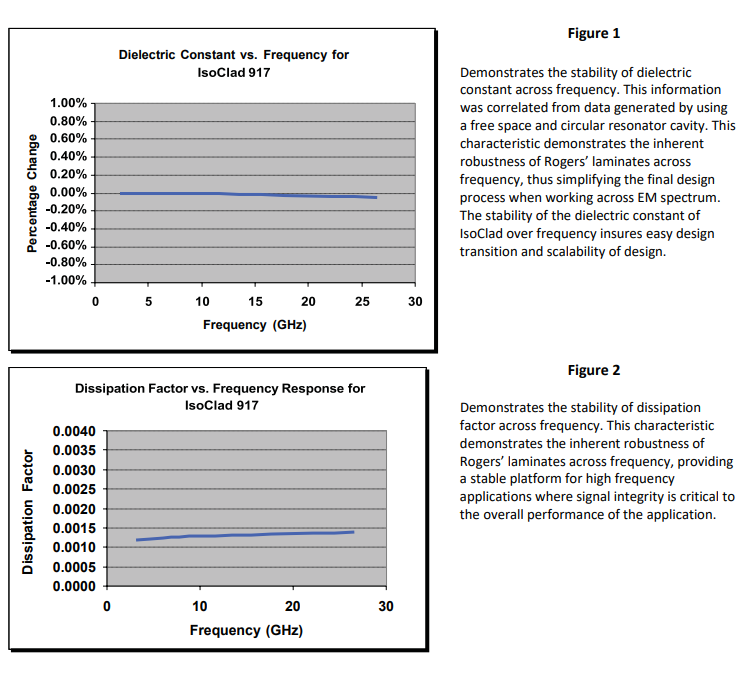

IsoClad 917 laminates (Er=2.17, 2.20) use a low
ratio of fiberglass/PTFE to achieve the lowest
dielectric constant and dissipation factor available
in a combination of PTFE and fiberglass.

IsoClad 933 laminates (Er=2.33) use a higher
fiberglass/PTFE ratio for a more highly reinforced
combination that offers better dimensional
stability and increased mechanical strength.

Fetures of IsoClad laminates

• Nonwoven Fiberglass Reinforcement
• Low Dielectric Constant
• Extremely Low Loss

• Less Rigid than Woven Fiberglass
• Highly Isotropic in X, Y and Z Directions

IsoClad laminates applications

• Conformal Antennas
• Stripline and Microstrip Circuits
• Missile Guidance Systems
• Radar and Electronic Warfare Systems

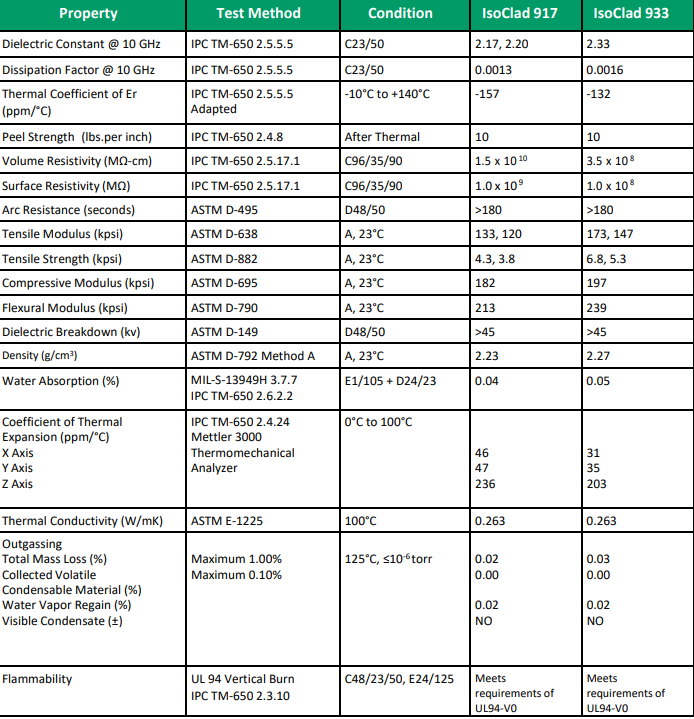

IsoClad laminates datasheet

IsoClad laminates standard thickness

Isoclad 917:
0.031″[0.7smm t0.0020″

0.062″[1.57mm) t0.0040

0.015″10.3smm) t0.0020

0.031″ 10.79mm] t0.0020
0.062″[1.57mm) t0.0040
*Additional non-standard thicknesses avallable from 0.005″*Additional panel sizes available.

IsoClad laminates standard size

12”x 18°[305 x457mm]

24”x 18”[610x457mm)

IsoClad laminates standard Copper clad

IsoClad laminates price

Rogers IsoClad laminates price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
Rogers  IsoClad laminates substrate size etc.

Andwin use RogersIsoClad laminates to make mass PCB production,
Many types RogersIsoClad laminates are in stock,also, have good offer from Rogers factory.
If you need Rogers IsoClad laminates or raw material,
Please contact us to get the supper good RogersIsoClad laminates price.
