Rogers PCB are hydrocarbon ceramic laminates and prepares offer superior high frequency performance and low cost printed circuit fabrication resulting in a low loss material which can be fabricated using standard epoxy/glass (FR-4) processes. Rogers material is also referred as RO4000. It is used in PCB designs where power management, signal integrity and impedance matching is very crucial. Most common application, where Rogers Material is used are: high-speed designs, RF, microwave, mobile applications, etc.

Features of Rogers PCB

The basic difference between Rogers PCB and ordinary PCB states for the high-frequency PCB used in heavy industrial purposes or applications.

The quality outperforms than the general PCB and it is trusted by many people to use in complex and crucial purposes.
The distinctive features that have made it extra-ordinary include:

  • The application where Rogers PCBs can be used for microwave point to point, RF identification tags, automotive radar and sensors, and power amplifiers
  • It is composed with woven glass reinforced hydrocarbon
  • High-resolution electrical performance has close interaction to PTEE
  • A thin layer of conductive materials are used in PCBs to give it strength and power
PCB AOI

Materials Used in Rogers PCB

There is a number of materials used in Rogers PCB but the primary materials are the following:

  • Laminated materials composed of woven glass-reinforced epoxy laminates
  • Cross piled woven glass-reinforced laminates
  • PTEE ceramic laminates
  • Woven glass-reinforced modified epoxy laminates
  • Woven glass reinforced PTFE antenna grade laminates
  • Cross-plied woven glass reinforced PTFE
  • Woven glass-reinforced modified epoxy IMS
  • Hydrocarbon/ ceramic/ woven glass UL 94 V-0 Laminates
  • Hydrocarbon/ ceramic / woven Glass
  • PTFE ceramic
  • Filled PTFE composite
  • PTFE random glass fiber

Several models of metal cladding accessible in the following foil type:

  • Rolled
  • Electrodeposited
  • Electrodeposited Reverse Treated
  • Resistive foil

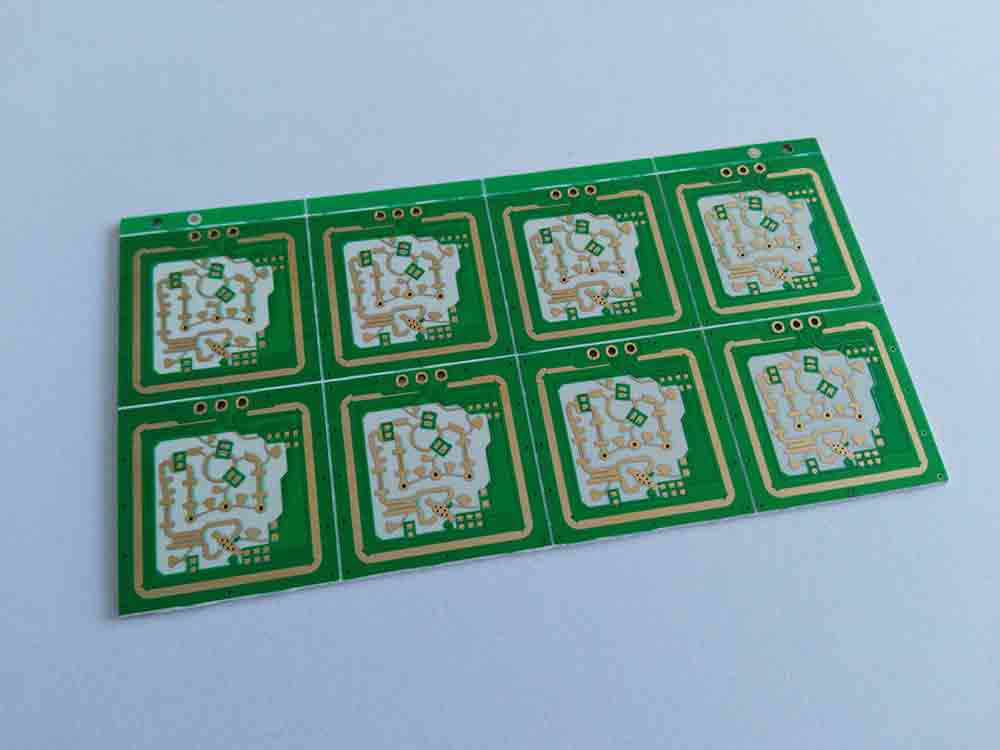

2layers ceramic pcb

Benefits of Rogers PCB

There are several reasons for the increasing popularity of Rogers PCB.

The best quality and better usage criteria and features are the most obvious reasons because the other alternatives can barely supportive of such issues.
This high-frequency Rogers PCB has several benefits.

  • High quality ensures low electrical signal loss
  • Lower dielectric failure
  • Low moisture absorption
  • Better management for thermal energy
  • A wide array of dielectric constant values
  • Lower outgassing is suitable for space applications
  • Advanced impedance control
  • Suitable for RF circuit boards
  • Extremely reliable and available for use in major industries
  • High frequency assures the suitability  to use in mobile networking and aerospace
Repair of Printed circuit board

GET IN TOUCH NOW!

Comparison between Ordinary and Rogers PCB

The key differences are found at the usage of ordinary and Rogers PCB:

Rogers PCBs are widely used in high-frequency applications whereas ordinary PCBs cannot serve properly in high frequencies

Rogers PCBs are the least in absorbing water compared to the ordinary PCBs

Rogers PCBs can be used in harsh environmental conditions and ideal for use in aerospace and defense ,

but ordinary PCBs are more appropriate to use in low exhausting areas like standard switchboards.

Nitride Aluminum ceramic pcb

Applications of Rogers PCB

Rogers PCBs are highly effective to use in:

  • Defense
  • Military
  • Wireless
  • Telecommunication
  • Automotive industries
rigid flex pcb application

There are also some more examples of other applications to use PCBs manufactured from Rogers materials:

  • Cellular Base Station Antennas
  • Power Amplifiers
  • Automotive Radar and Sensors
  • RF identification (RFID) Tags
  • Direct Broadcast Satellites
  • Active Safety
  • Antenna Systems
  • Backhaul Radios
  • Direct Broadcast Satellites
  • Carrier-Grade Wi-Fi / Licensed Assisted Access
  • IP Infrastructure
  • Phased Array Radar Systems
  • Small Cells / DAS
  • Test & Measurement
Applications of Double sided metal Core PCB

Reasons to Choose Rogers PCB

Rogers PCBs can be trusted as there are lesser products to serve at its level in conventional PCBs.

Fields like aerospace do not have many options to choose Rogers PCBs considering the design and quality.

It is also reliable in terms of their service criteria because they offer samples so that anyone can understand the effectiveness and efficiency before finalizing.
This puts ease among the customers to choose Rogers PCB.

The moisture absorption feature is not served by the ordinary PCBs which is also a reason for Rogers PCBs increasing popularity.

These characteristics are appropriate for being used in every kind of environment and weather conditions by ensuring lesser chances of malfunctions.

In addition, Rogers PCB is resistant to several types of chemicals so that it can be used in almost all the industries without any pressure.

The communication infrastructure, aerospace, defense, medical, rail industry, mobile applications, and HEV are a few industries and these are the prime markets for using Rogers PCB.
