DiClad Series Laminates

DiClad® laminates are woven fiberglass/PTFE composite materials for use as printed
circuit board substrates. Precise control of the fiberglass/PTFE ratio, DiClad laminates
offer a range of choices from the lowest dielectric constant and dissipation factor to a
more highly reinforced laminate with better dimensional stability.

The woven fiberglass reinforcement in DiClad products provides greater dimensional
stability than nonwoven fiberglass reinforced PTFE based laminates of similar
dielectric constants. The consistency and control of the PTFE coated fiberglass cloth
allows Rogers to offer a greater variety of dielectric constants and produces a laminate
with better dielectric constant uniformity than comparable non-woven fiberglass
reinforced laminates. The coated fiberglass plies in DiClad materials are aligned in the
same direction. Crossplied versions of many of these materials are available as CuClad
materials.

DiClad laminates are frequently used in filter, coupler, and low noise amplifier
applications, where dielectric constant uniformity is critical. They are also used in
power dividers and combiners, where low loss is important.

DiClad 527 laminates (Er=2.40−2.65) use a higher fiberglass/PTFE ratio to provide
mechanical properties approaching conventional substrates. Other advantages
include better dimensional stability and lower thermal expansion in all directions.
The electrical properties of DiClad 527 laminates are tested at 1 MHz and 10 GHz,
respectively.

Fetures of DiClad Series Laminates

• Extremely Low Loss Tangent
• Excellent Dimensional Stability
• Product Performance Uniformity

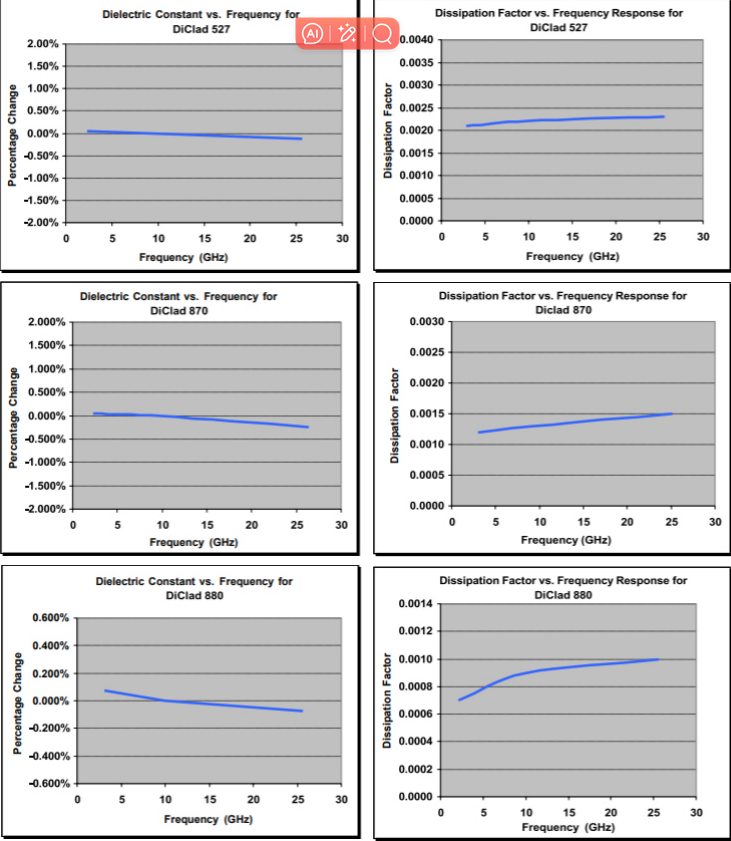

• Electrical Properties are Highly
Uniform Across Frequency
• Consistent Mechanical
Performance
• Excellent Chemical Resistance

DiClad Series Laminates applications

• Military Radar Feed Networks
• Commercial Phased Array Networks
• Low Loss Base Station Antennas
• Missile Guidance Systems
• Digital Radio Antennas
• Filters, Couplers, LNAs

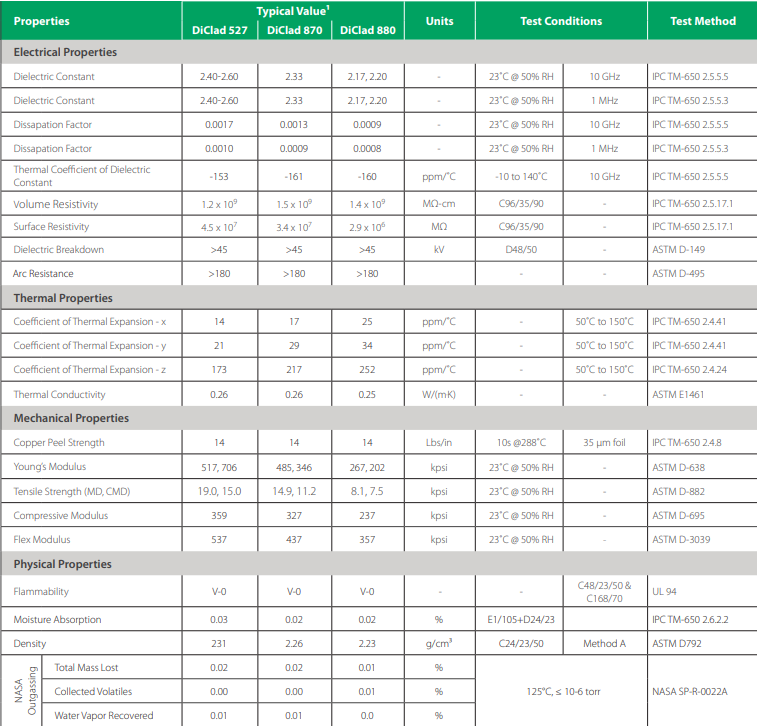

DiClad Series Laminates datasheet

DiClad Series Laminates standard thickness

DiClad 527:
0.020” (0.508mm) +/- 0.0020”
0.030” (0.762mm) +/- 0.0020”
0.060” (1.524mm) +/- 0.0020”
DiClad 870:
0.031” (0.79mm) +/- 0.0020”
0.093” (2.36mm) +/- 0.0030”
0.125” (3.18mm) +/- 0.0060”
DiClad 870:
0.020” (0.508mm) +/- 0.0020”
0.030” (0.762mm) +/- 0.0020”
0.060” (1.524mm) +/- 0.0020

DiClad Series Laminates standard size

DiClad 527:
12” X 18” (305 X 457mm)
18” X 12” (457 X 305mm)
18” X 24” (457 X 610mm)
24” X 18” (610 X 457mm)
DiClad 870:
8” X 12” (203 X 305mm)
18” X 24” (475 X 610mm)
DiClad 880:
12” X 18” (305 X 457mm)
18” X 12” (457 X 305mm)
18” X 24” (457 X 610mm)
24” X 18” (610 X 457mm)

DiClad Series Laminates standard Copper clad

DiClad 527:
Electrodeposited Copper Foil
1/2 oz. (18µm)
1 oz. (35µm)

DiClad 870:
Electrodeposited Copper Foil
1/2 oz. (18µm)
1 oz. (35µm)

DiClad 880:
Electrodeposited Copper Foil
1/2 oz. (18µm)
1 oz. (35µm)
Rolled Copper Foil
1/2 oz. (18µm)
1 oz. (35µm)
Reverse Treated Electrodeposited Copper Foil
1/2 oz. (18µm)
1 oz. (35µm)

DiClad Series Laminates Material price

DiClad Series Laminates price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
DiClad Series Laminates substrate size etc.

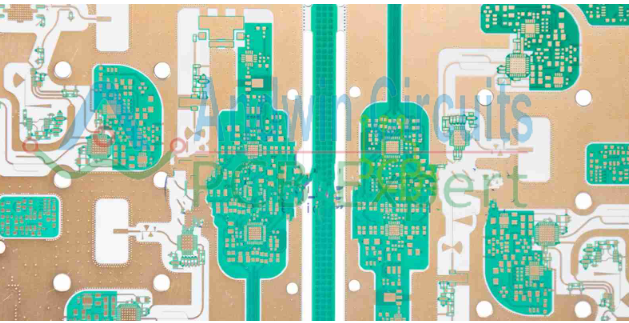

Andwin use DiClad Series Laminatesto make mass PCB production,
Many types DiClad Series Laminates are in stock,also, have good offer from Rogers factory.
If you need DiClad Series Laminates or raw material,
Please contact us to get the supper good DiClad Series Laminates price.
