The Application of Capacitors in High-Speed PCB Design

Abstract

This paper explores the critical role of capacitors in high-speed printed circuit board (PCB) design. As digital systems continue to operate at increasingly higher frequencies, proper capacitor implementation has become essential for maintaining signal integrity, power integrity, and electromagnetic compatibility. The discussion covers various capacitor types, their specific applications in high-speed designs, placement strategies, and common pitfalls to avoid. Practical guidelines are provided to help engineers optimize capacitor usage in modern high-speed digital systems.

1. Introduction

In the realm of high-speed PCB design, where clock frequencies routinely exceed GHz ranges and edge rates measure in picoseconds, capacitors serve as fundamental components that enable reliable system operation. These passive components perform several vital functions including power supply decoupling, bulk energy storage, signal coupling, filtering, and electromagnetic interference (EMI) reduction.

The challenges of high-speed design—such as simultaneous switching noise, power plane resonance, and transmission line effects—make proper capacitor selection and placement more critical than ever. This paper examines how capacitors address these challenges and provides implementation guidelines for optimal performance.

2. Capacitor Fundamentals in High-Speed Context

2.1 Parasitic Elements

All real capacitors contain parasitic elements that become significant at high frequencies:

• Equivalent Series Resistance (ESR): Resistive losses in leads and plates
• Equivalent Series Inductance (ESL): Inductance of leads and internal structure
• Parallel Resistance: Insulation resistance (typically very high)

These parasitic elements create a self-resonant frequency beyond which the capacitor behaves more like an inductor than a capacitor. Understanding these characteristics is essential for high-frequency applications.

2.2 Impedance Characteristics

The impedance of a capacitor varies with frequency:

• At low frequencies: Dominated by capacitive reactance (Xc = 1/(2πfC))
• Near resonance: Minimum impedance determined by ESR
• Above resonance: Dominated by inductive reactance (XL = 2πfL)

In high-speed designs, engineers must consider the entire impedance profile rather than just the nominal capacitance value.

3. Types of Capacitors in High-Speed Design

3.1 Multilayer Ceramic Capacitors (MLCC)

• Most common for decoupling applications
• Available in various dielectric materials (X7R, X5R, NPO/C0G)
• Small form factors (0201, 0402 common in high-density designs)
• Low ESL variants available for high-frequency applications

3.2 Tantalum Capacitors

• Higher capacitance per volume than MLCCs
• Used for bulk decoupling
• Higher ESR than ceramic capacitors
• Requires careful consideration of surge current ratings

3.3 Aluminum Electrolytic Capacitors

• Very high capacitance values
• Primarily used in power supply input filtering
• Higher ESR and ESL limit high-frequency performance
• Lifetime concerns in high-temperature applications

3.4 Specialty High-Frequency Capacitors

• Low-ESL designs with innovative terminations
• Reverse geometry capacitors (length > width)
• Interdigitated capacitors for RF applications
• Embedded capacitance in PCB layers

4. Key Applications in High-Speed PCB Design

4.1 Power Distribution Network (PDN) Decoupling

The primary application of capacitors in high-speed design is stabilizing the power distribution network. A hierarchical approach is typically employed:

Bulk Decoupling:

• 10-100μF capacitors
• Address low-frequency noise
• Typically placed near voltage regulators

Mid-Frequency Decoupling:

• 0.1-10μF capacitors
• Cover intermediate frequency range
• Distributed across the PCB

High-Frequency Decoupling:

• 0.001-0.1μF capacitors
• Placed very close to IC power pins
• Small form factors to minimize ESL

The goal is to maintain low impedance across the entire frequency spectrum of interest, often from DC to several GHz in modern systems.

4.2 Simultaneous Switching Noise (SSN) Mitigation

When multiple outputs switch simultaneously, they create current surges that can cause power supply fluctuations. Proper capacitor placement:

• Provides local charge reservoirs
• Reduces current loop areas
• Minimizes voltage droops and ground bounce

4.3 Signal Integrity Applications

Capacitors play several roles in maintaining signal integrity:

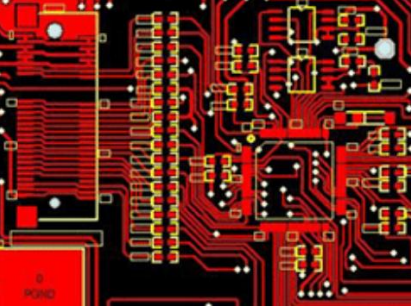

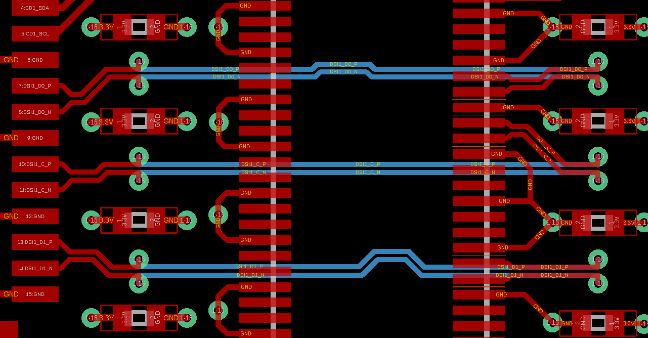

AC Coupling:

• Blocks DC while allowing AC signals to pass
• Common in high-speed serial links (PCIe, SATA)
• Requires careful capacitance selection to avoid signal distortion

Termination:

• RC termination networks for dampening reflections
• Frequency-dependent impedance matching

Filtering:

• Low-pass filters for noise reduction
• EMI suppression at connector interfaces

4.4 EMI Reduction

Capacitors form essential elements in EMI control strategies:

• Power plane bypassing to reduce radiation
• Common-mode filtering when used with ferrites
• RF bypassing at cable interfaces

5. Placement and Layout Considerations

5.1 Proximity to Components

The effectiveness of decoupling capacitors depends heavily on placement:

• High-frequency decoupling caps must be as close as possible to IC power pins
• Via placement affects loop inductance—multiple vias can reduce overall inductance
• On-package capacitance is becoming more common for highest-speed devices

5.2 Loop Area Minimization

Current loops between capacitors and ICs should be minimized to:

• Reduce parasitic inductance
• Lower radiated emissions
• Improve high-frequency performance

This involves careful consideration of:

• Power and ground via placement
• Plane connections
• Component orientation

5.3 Power Plane Considerations

Capacitors interact with PCB power planes in complex ways:

• Plane capacitance itself provides high-frequency decoupling
• Plane resonances can affect capacitor effectiveness
• Split planes require careful capacitor placement at transitions

6. Advanced Techniques

6.1 Frequency-Domain Target Impedance

Modern PDN design often specifies a target impedance across frequency:
Ztarget = Vripple × Allowable ripple / ΔI
Where:

• Vripple = maximum allowable voltage variation
• ΔI = current step demand

Capacitors are selected to maintain impedance below Ztarget across the frequency range.

6.2 Mixed-Dielectric Approaches

Combining capacitors with different dielectric materials can:

• Broaden the effective frequency range
• Compensate for individual capacitor limitations
• Provide more stable performance over temperature

6.3 Embedded Capacitance

Some high-speed designs incorporate capacitance directly into the PCB stackup:

• Thin dielectrics between power and ground planes
• Can provide substantial high-frequency decoupling
• Reduces the need for discrete components in some frequency ranges

7. Common Pitfalls and Solutions

7.1 Overlooking Parasitic Inductance

Problem: Even small nH-level ESL can render capacitors ineffective at high frequencies.
Solution: Use low-ESL packages, multiple vias, and proper placement.

7.2 Inadequate Capacitor Mix

Problem: Relying on one capacitor value/type leaves gaps in the impedance profile.
Solution: Implement a mix of values/types to cover the full frequency range.

7.3 Poor Return Paths

Problem: Disrupted return paths reduce capacitor effectiveness.
Solution: Ensure continuous return paths, especially near capacitor placements.

7.4 Ignoring Temperature Effects

Problem: Capacitance and ESR vary with temperature, particularly in ceramic capacitors.
Solution: Select appropriate dielectric materials (e.g., C0G for critical applications).

8. Future Trends

As digital systems continue to push speed limits, capacitor technology and implementation strategies evolve:

• Increased use of 3D packaging and chip-scale capacitors
• Development of ultra-low ESL capacitor designs
• More sophisticated simulation tools for capacitor optimization
• Greater integration of passive components into packages and substrates

9. Conclusion

Capacitors remain indispensable components in high-speed PCB design, performing critical functions that enable modern high-performance electronics. Proper selection, placement, and implementation of capacitors can mean the difference between a reliable high-speed design and one plagued by signal integrity issues, power delivery problems, and EMI failures.

By understanding capacitor characteristics, applying sound decoupling strategies, and avoiding common implementation mistakes, designers can effectively harness these components to meet the challenges of ever-increasing digital speeds. As edge rates continue to decrease and frequencies rise, the thoughtful application of capacitors in PCB design will only grow more crucial.
