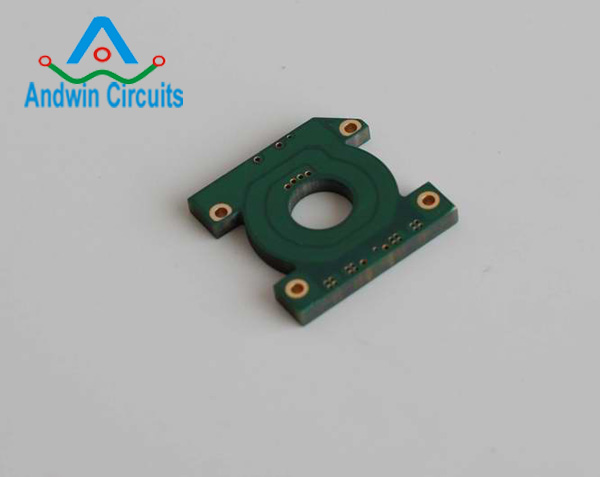

Andwin Copper core PCB:Your high-Power Thermal solution
In today’s wave of electronic device pursuing higher power,smaller size,and greater reliability,has the traditional FR-4 PCB become a bottleneck for your product upgrades?Heat the “invisible killer”or electronic products,is quietly eroding your system’s stability lifespan,and performance.
It’s time to embrace a revolutionary upgrade
Andwin Copper core PCB born to push the limits,is the perfect choice for your high-power,high-heat- dissipation applications.
What is a Copper core PCB?
Simply put,a Copper core PCB is a metal-based circuit board with copper as its core substrate.Its fundamental difference from traditional PCBs lies in the fact that its superior heat dissipation capabilities do not come from additional heat sink,but from its inherent talent
Its classic three-layer structure is an art of heat disspiation:
1.Circuit Layer:Copper foil traces carrying electronic component ,ensuring excellent electrical connections.
2.Insulation Layer:A highly thermally conductive yet electrically insulating medium,cleverly balancing heat conduction and circuit isolation.
3.Substrate Layer:A thick copper substrate acts as a powerful “heat highway”,rapidly disspipating and dissipating heat laterally
Why your Next project must choose Core copper PCB?
1.Unparalleled Heat Dissipation Performance Copper boasts a thermal conductivity of up to 400W/(m~k)approximately 1.8times that of times that of FR-4 material.This means that core Copper PCB can absorb the enormous heat generated by chips,LED,and enormous heat generated by chips,LEDs and power devices like a sponge,effciently transferring it to the casing or heat dissipation environment.
Effectively reducing hotpot temperatures,easily achieving a 30%-50%cooling effect,allowing your products to operate stably while remaining cool.
2.Higher Power Density and Reliability
Heat is the “number one killer”or electronic component lifespan.By effectively controlling temperature,core copper PCBs allow you to:
Drive higher current,supporting higher power designs.
Reduce product size,achieving higher power density for more compact and lightweight products.
Significantly extend component life：significantly reducing the risk of premature failure due to overheating,improving overall product reliability and market reputation
3.Superior Coefficient of Thermal Expansion Matching
Compared to ceramic or silicon chips,copper has a closer coefficient of thermal expansion,effectively reducing stress generated during for applications such as high power LEDs and automotive electronics,greatly improving the reliability of solder joints and the product’s environmental adaptability.
4.Roust Mechanical Support
The thick copper base not only provides excellent thermal conductivity but also offers significantly higher mechanical strength and stability than ordinary PCBs.It better supports heavy component (such as large-capacity electrolytic capacitors and transformers)and has excellent vibration and shock resistance.
Core copper PCB Applications:Empowering cutting-Edge Technology
Our Core copper PCBs are driving innovation across various industries；
LED lighting:
High-Power LED Automotive headlights Searchlights
Stage lights:Solves the heat dissipation problem of the”heart”of LED chips, ensuring luminous efficacy,light decay,and ultra-long lifespan.
LED Displays：
Especially for high-density,small-pitch displays,ensuring stable and bright pixels and extending screen lifespan.
Power Supply and Power Electronic:
High-power Switching Power supplies, Inverter,MOSFETs:Provide a “cool” working environment for power devices such as IGBTs and MOSFETs.
Motor Driver and Industrial Control System:Ensure continuous and stable operation of equipment in harsh environments.
Automotive Electronics:
Engine Controller,New Energy Vehicle Electronic Control Systems,On-board Chargers:Meets automotive-grade requirements for high temperature high vibration and high reliability.
RF&Microwave Communication:
5G Communication Base Station Power Amplifier:Excellent heat disspation and electromagnetic shielding performance ensures pure and stable signal transmission.
Why choose Us as Your Core Copper PCB Partner?
We are not just a manufacturer,but also a partner on your technological journey.We offer:
Deep Technical Expertise:Years of experience in metal substrate manufacturing,our engineering team provides comprehensive technical support from design optimization to mass production.
“Strict Quality Control“From raw materials to finished product,every core Copper PCB undergoes rigorous testing to ensure performance and reliability.
“Flexible Production Capabilities:”Whether your need are for prototyping or large-scale production,we offer rapid response and flexible service.
Highly Competitive Pricing:Through optimized manufacturing processes and supply chain management,we provide you with the most cost-effective solutions.
Don’t let heat limit your imagination
When your design push the boundaries of performance,Core copper PCB is the key to breaking through bottlenecks and building core competitiveness.
Contact our technical sales team now for free technical consultation and a personalized quote.Let Core copper PCB inject a powerful,”cool”core into your next great product.
