How to Manufacture High-Quality PCB Boards: Key Aspects to Consider

ByGrace

Printed Circuit Boards (PCBs) are the backbone of modern electronics, serving as the foundation for nearly all electronic devices. The quality of a PCB directly impacts the performance, reliability, and longevity of the final product. Manufacturing high-quality PCBs requires meticulous attention to design, material selection, fabrication processes, and testing. This article explores the essential aspects of producing high-quality PCBs, covering design considerations, material choices, manufacturing techniques, and quality control measures.

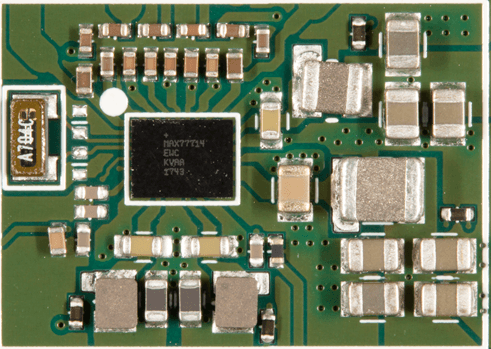

1. Design Considerations for High-Quality PCBs

1.1 Proper Schematic and Layout Design

A well-designed schematic is the first step toward a high-quality PCB. Engineers must ensure that:

  • The schematic is error-free and follows best practices.
  • Components are correctly placed to minimize signal interference.
  • Power and ground planes are adequately designed to reduce noise.

The PCB layout should optimize:

  • Trace width and spacing to prevent crosstalk and overheating.
  • Signal integrity by minimizing high-speed signal path lengths.
  • Thermal management by placing heat-generating components strategically.

1.2 Design for Manufacturability (DFM)

DFM ensures that the PCB can be efficiently and reliably manufactured. Key considerations include:

  • Minimum trace width and spacing (following manufacturer capabilities).
  • Proper via placement (avoiding micro-vias unless necessary).
  • Adequate copper weight to handle current requirements.
  • Solder mask and silkscreen alignment to prevent assembly errors.

1.3 EMI/EMC Considerations

Electromagnetic interference (EMI) and electromagnetic compatibility (EMC) must be addressed early in the design phase:

  • Use ground planes to shield sensitive signals.
  • Implement proper filtering for high-frequency circuits.
  • Avoid sharp trace angles, which can act as antennas.
Contact us for PCB quote now |

2. Material Selection for High-Quality PCBs

2.1 Substrate Materials

The choice of PCB substrate affects thermal performance, mechanical strength, and signal integrity:

  • FR-4: Standard material for most applications, offering good electrical insulation and mechanical stability.
  • High-Tg FR-4: Suitable for high-temperature environments.
  • Rogers or PTFE-based materials: Used in high-frequency RF applications.
  • Metal-core PCBs (MCPCBs): Ideal for LED and power electronics due to superior heat dissipation.

2.2 Copper Foil Quality

The thickness and type of copper foil impact conductivity and thermal performance:

  • Electrodeposited (ED) copper: Common in standard PCBs.
  • Rolled annealed (RA) copper: Better for flexible PCBs.
  • Heavy copper PCBs (2oz+): Used in high-power applications.

2.3 Solder Mask and Surface Finish

  • Solder mask prevents short circuits and oxidation (common types: LPI, dry film).
  • Surface finishes affect solderability and corrosion resistance:
  • HASL (Hot Air Solder Leveling): Cost-effective but uneven.

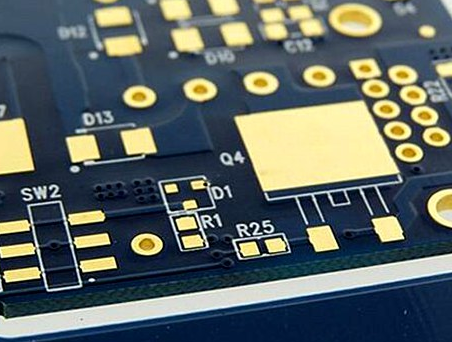

  • ENIG (Electroless Nickel Immersion Gold): Excellent for fine-pitch components.
  • OSP (Organic Solderability Preservative): Eco-friendly but less durable.
  • Immersion Silver/Tin: Good for high-frequency applications.
Contact us for PCB quote now |

3. Advanced PCB Manufacturing Techniques

3.1 Precision Etching and Plating

  • Laser Direct Imaging (LDI) improves trace accuracy.
  • Controlled impedance etching ensures signal integrity.
  • Plated through-holes (PTHs) must be uniform for reliability.

3.2 Multilayer PCB Lamination

For complex designs, multilayer PCBs require precise lamination:

  • Prepreg and core alignment must be exact.
  • Proper pressure and temperature control prevents delamination.

3.3 Drilling and Via Formation

  • Laser drilling for micro-vias in HDI (High-Density Interconnect) PCBs.
  • Mechanical drilling must be burr-free to ensure conductivity.

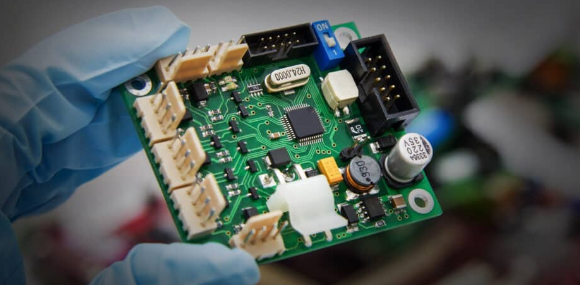

4. Quality Control and Testing

4.1 Automated Optical Inspection (AOI)

  • Detects defects like shorts, open circuits, and misalignments.

4.2 Electrical Testing

  • Flying Probe Test: Checks connectivity in prototype PCBs.
  • Bed-of-Nails Test: Used for mass production validation.

4.3 Environmental and Reliability Testing

  • Thermal cycling to assess durability.
  • IPC-A-600 standards for acceptability criteria.

Conclusion

Producing high-quality PCBs requires a combination of excellent design, material selection, precision manufacturing, and rigorous testing. By following best practices in DFM, material choice, and quality control, manufacturers can ensure reliable, high-performance PCBs for advanced electronic applications.
