RO4500™ Series High Frequency Laminatesor

RO4500™ Series High Frequency Laminates are cost/performance materials from Rogers
Corporation, specifically engineered and manufactured to meet the specific demands of
the antenna markets.

RO4533™, RO4534™, and RO4535™ laminates extend the capabilities of the successful
RO4000® product series into antenna applications. This ceramic-filled, glass-reinforced
hydrocarbon based material set provides the controlled dielectric constant, low loss
performance and excellent passive intermodulation response required for mobile
infrastructure microstrip antenna applications.

As with all RO4000 high frequency laminates, RO4500 laminates are fully compatible with
conventional FR-4 and high temperature lead-free solder processing. These laminates
do not require special treatment needed on traditional PTFE-based laminates for plated
through-hole preparation. This product series is an affordable alternative to more
conventional PTFE antenna technologies, thus allowing designers to optimize the price
and performance of their antennas. Moreover, RO4533 and RO4534 laminates are available
halogen-free to meet the most stringent “green” standards, and RO4535 laminates are
available with our RoHS-compliant flame-retardant technology for applications requiring
UL94 V-0 certification.

The resin systems of RO4500 dielectric materials are designed to provide the necessary
properties for ideal antenna performance. The coefficients of thermal expansion (CTEs)
in both the X and Y directions are similar to that of copper. The good CTE match reduces
stresses in the printed circuit board antenna. The typical glass transition temperature of
RO4500 materials exceeds 280°C (536°F), leading to a low z-axis CTE and excellent plated
through-hole reliability. These properties, in combination with a dimensional stability
value of less than 0.05%, make RO4500 laminates an excellent candidate for printed circuit
antenna applications. RO4500 materials also provide increased thermal conductivity over
equivalent PTFE/woven glass materials, allowing for design of antennas with increased
power handling capability.

In addition to these excellent thermo-mechanical properties, RO4500 laminates embody
electrical characteristics that antenna designers need. The laminates have a dielectric
constant (Dk) ranging from 3.3 to 3.5 (±0.08) and a loss tangent (Df) of 0.0020 to 0.0037
measured at 2.5 GHz. These values allow antenna designers to realize substantial gain
values while minimizing signal loss. Materials are available with demonstrated low PIM
performance, with values better than –155 dBC using two 43 dBm swept tones at 1900
MHz.

Fetures of RO4500™ Series High Frequency Laminates

Loss range (0.0020 to 0.0037), Dk range (3.3 to
3.5), low PIM response
• Wide range of application use
Thermoset resin system
• Compatible with standard PCB
fabrication
Excellent dimensional stability
• Greater yield on larger panels sizes
Uniform mechanical properties
• Maintains mechanical form during
handling
High thermal conductivity
• Improved power handling

RO4500™ Series High Frequency Laminates applications

• Cellular infrastructure base station
antennas
• WiMAX antenna networks

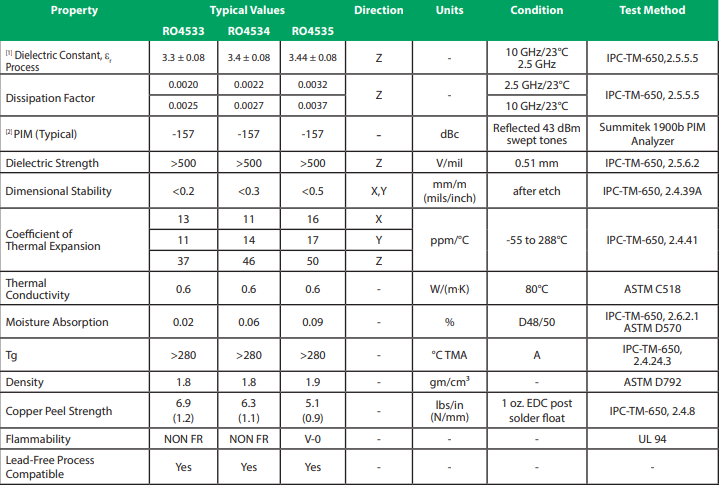

RO4500™ Series High Frequency Laminates datasheet

RO4500™ Series High Frequency Laminates thickness

RO4533/RO4535
0.020” (0.508mm) +/- 0.0015”
0.030” (0.762mm) +/- 0.0015”
0.060” (1.524mm) +/- 0.0040”
RO4534
0.020” (0.508mm) +/- 0.0015”
0.032” (0.813mm) +/- 0.0020”
0.060” (1.524mm) +/- 0.0040”
*Additional non-standard thicknesses available from 0.020” – 0.060” in
varying increment

RO4500™ Series High Frequency Laminates size

12″ X 18″ (305 X 457mm)
24″ X 18″ (610 X 457mm)

RO4500™ Series High Frequency Laminates Copper clad

Electrodeposited Copper Foil
½ oz. (18µm) HH/HH
1 oz. (35µm) H1/H1
*Additional cladding weights available

RO4500™ Series High Frequency Laminates Raw Material price

RO4500™ Series High Frequency Laminates price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,
RO4500™ Series High Frequency Laminates substrate size etc.

Andwin use RO4500™ Series High Frequency Laminates to make mass PCB production,
Many types RO4500™ Series High Frequency Laminates are in stock,also, have good offer from Rogers factory.
If you need Rogers RO4500™ Series High Frequency Laminatesor raw material,
Please contact us to get the supper goods RO4500™ Series High Frequency Laminatesor  price.
