Rogers RO3010 PCB material

ByAndwin Circuits

Rogers Ro3010 PCB raw material belong to RO3000 Series Circuit Materials. Rogers 3010 is high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications.

As a Rogers 3010 PCB manufacturer,Andwin provide high quality Rogers Ro3010 PCB manfucturing,Rogers 3010 PCB raw material in stock, quickturn delivery is acceptable.

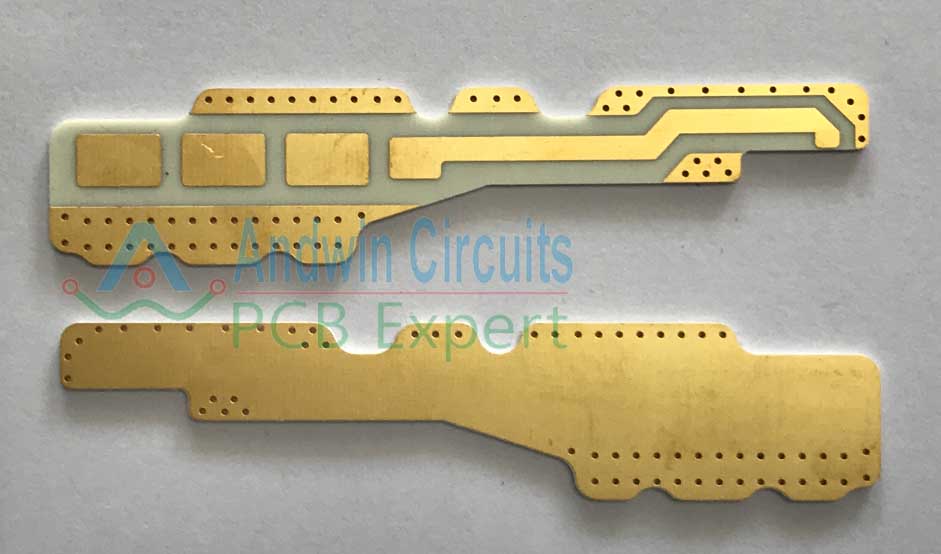

rogers ro3010 pcb

Fetures of Rogers RO3010 PCB Material

  • Low dielectric loss
  • Laminates can be used in applictions up to 77 GHz.
  • Excellent mechanical properties versus temperature
  • Reliable stripline and multilayer board constructions.
  • Ideal for multilayer board designs
  • Range of dielectric constants
  • Suitable for use with epoxy glass multilayer board hybrid designs
  • Stable dielectric constant versustemperature and frequency
  • Low in-plane expansion coefficient
  • Volume manufacturing process

Rogers RO3010 PCB Material applications

  • Automotive radar applications
  • Global positioning satellite antennas
  • Cellular telecommunications
  • systems -power amplifiers and antennas
  • Patch antenna for wireless communications
  • Direct broadcast satellites
  • Datalink on cable systems
  • Remote meter readers
  • Power backplanes
rogers ro3010 pcb

Rogers Ro3010 PCB

Rogers RO3010 PCB Material datasheet

rogers ro3010 datasheet

Rogers RO3010 PCB Material standard thickness

Rogers RO3010:0.005” (0.13mm) +/- 0.0005″0.010” (0.25mm) +/- 0.0007″0.025” (0.64mm) +/- 0.0010″0.050” (1.28mm) +/- 0.0020″

Rogers RO3010 PCB Material standard size

12″ X 18″ (305 X 457mm)24″ X 18″ (610 X 457mm)

12″ X 18″ (305 X 457mm)24″ X 18″ (610 X 457mm)

Rogers RO3010 PCB Material standard Copper clad

Rogers RO3010 PCB raw Material price

Rogers RO3010 price is very high, from 100 to 600 USD/sheet,

The price depend on the rogers  3035 substrate thickness,copper thickness,Rogers  RO3010 substrate size etc.

Andwin use Rogers RO3010 to make mass PCB production,Many types Rogers RO3010 are in stock,also, have good offer from Rogers factory.If you need Rogers 3010 PCB or raw material,Please contact us to get the supper good Rogers RO3010 price.
